Accelerator Pedal: Removal: Removal

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 33
  2. REMOVE ACCELERATOR PEDAL ASSEMBLY
    1. Disconnect the accelerator pedal position sensor connector.

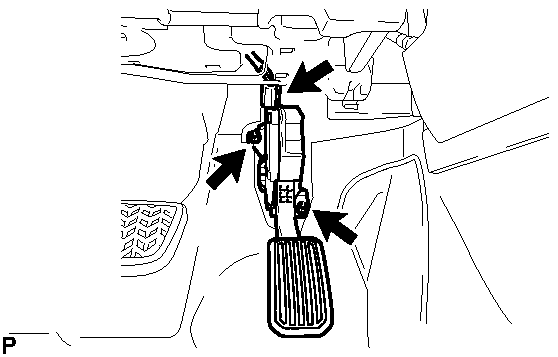

      Fig 1: Locating Accelerator Pedal Nuts
      GTY128676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal.
