System Diagram

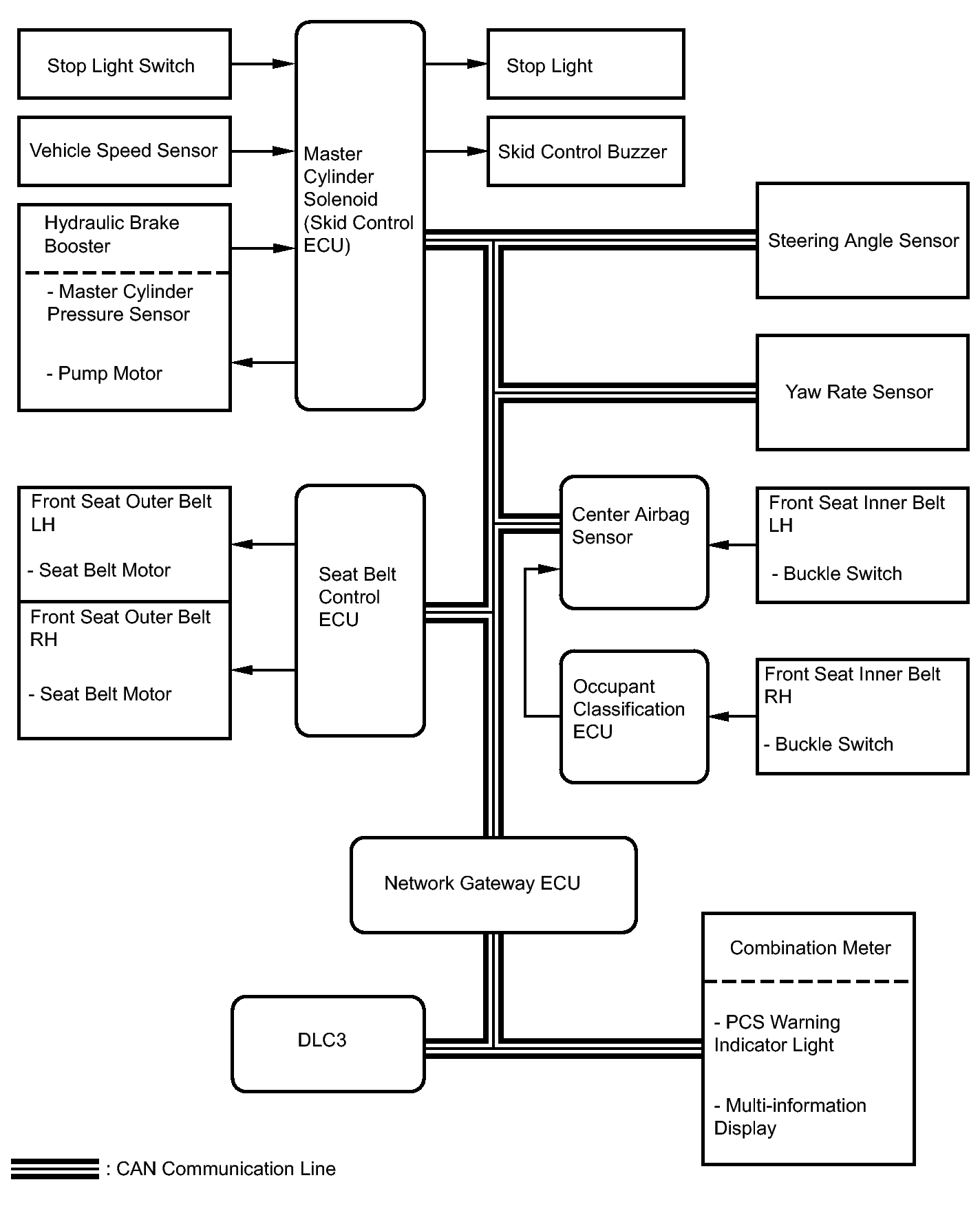

Fig 1: Pre-Collision System Diagram
GTY246755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitter Receiver Signal Communication Line
Master Cylinder Solenoid (Skid Control ECU) Seat Belt Control ECU
  • Seat belt operation signal
  • Sudden braking signal
  • VSC control signal
  • Vehicle speed signal
 CAN
Center Airbag Sensor Seat Belt Control ECU
  • Buckle switch malfunction signal
  • Driver seat belt buckle switch signal
  • Passenger seat belt buckle switch signal
 CAN
Seat Belt Control ECU Combination Meter
  • Pre-collision malfunction signal
 CAN
