Steering Lock Motor Drive Power Circuit: Procedure

1. Check the problem symptom of the steering lock system.
   RESULT



   Result	Proceed to
   Steering lock cannot be released	A
   Steering lock cannot lock	B

B → See step   5

A: Go to next step

1. Use the Data List to check if the steering lock command is functioning properly.
   SMART KEY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Lock/Unlock Receive	Steering lock command reception record/YES or NO	YES: Steering lock/unlock signal received NO: Steering lock/unlock signal not received	-

   OK

   YES is displayed on the Techstream screen.

NG → See step   8

OK: Go to next step

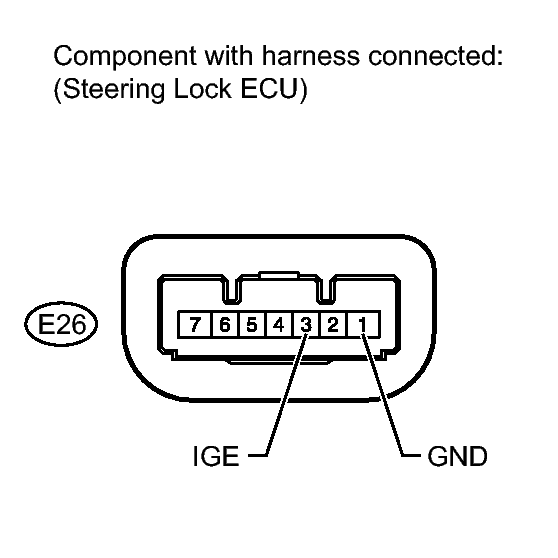

Fig 1: Identifying E26 Steering Lock ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Immediately after turning the engine switch on (IG), measure the voltage between terminals E26-3 (IGE) and E26-1 (GND) of the steering lock ECU.
   RESULT



   Result	Proceed to
   11 to 14 V (measured voltage never becomes below 1 V)	A
   Below 1 V	B

B → See step   9

A: Go to next step

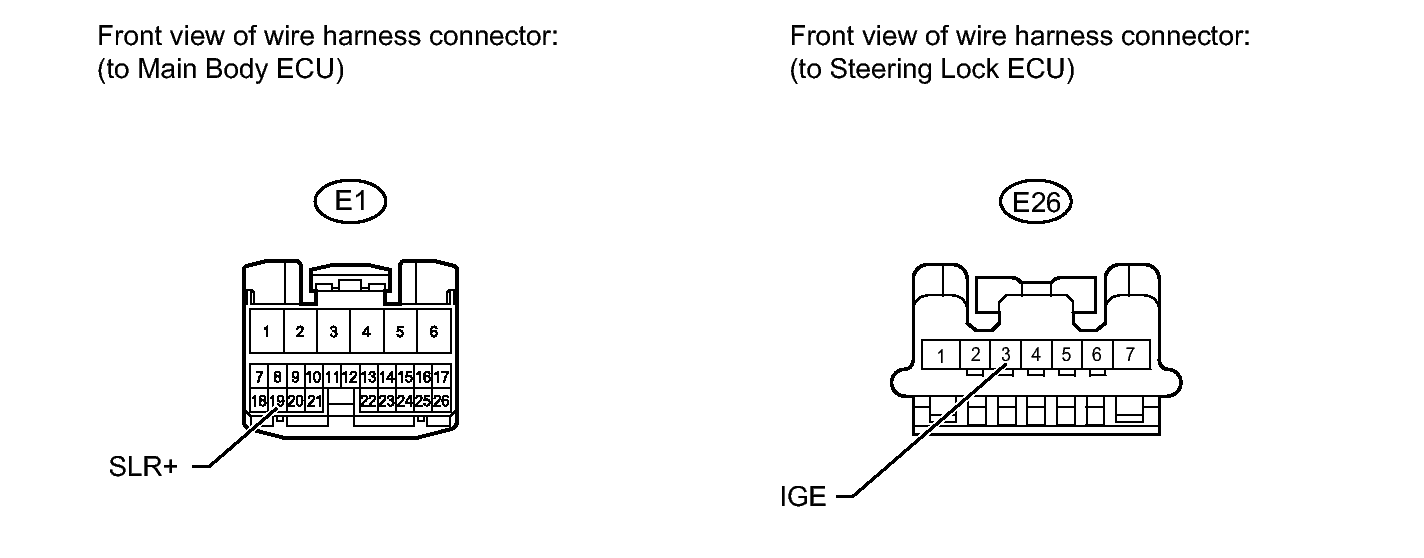

Fig 2: Identifying E26 Steering Lock ECU Connector And E1 Main Body ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the E26 steering lock ECU connector.
2. Disconnect the E1 main body ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E26-3 (IGE) - E1-19 (SLR+)	Always	Below 1 Ω
   E26-3 (IGE) or E1-19 (SLR+) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU

Fig 3: Identifying E26 Steering Lock ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Move the shift lever to P.
2. Turn the engine switch off.
3. Open the driver side door.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   E26-3 (IGE) - E26-1 (GND)	Steering lock motor operating	Below 1 V
   E26-3 (IGE) - E26-1 (GND)	Steering lock motor not operating	11 to 14 V

NG → See step   7

OK → See step   6

Fig 4: Identifying E26 Steering Lock ECU Connector And E1 Main Body ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the E26 steering lock ECU connector.
2. Disconnect the E1 main body ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E26-3 (IGE) - E1-19 (SLR+)	Always	Below 1 Ω
   E26-3 (IGE) or E1-19 (SLR+) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU
