Skid Control Buzzer: Inspection: Inspection
- INSPECT SKID CONTROL BUZZER ASSEMBLY

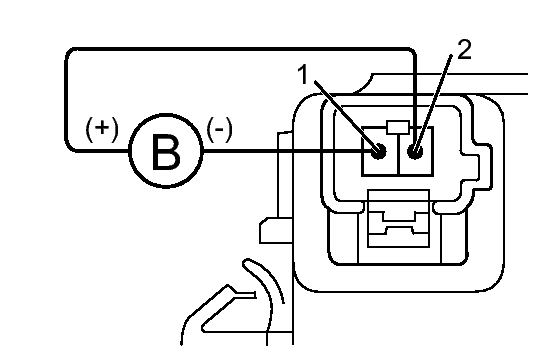

- Apply battery voltage to the skid control buzzer, and check that the buzzer sounds.
OK
Measurement Condition Specified Condition Battery positive (+) voltage → Terminal 2 Skid control buzzer sounds Battery negative (-) voltage → Terminal 1 If the result is not as specified, replace the skid control buzzer assembly.
- Apply battery voltage to the skid control buzzer, and check that the buzzer sounds.
