Tire Pressure Warning System: Notes

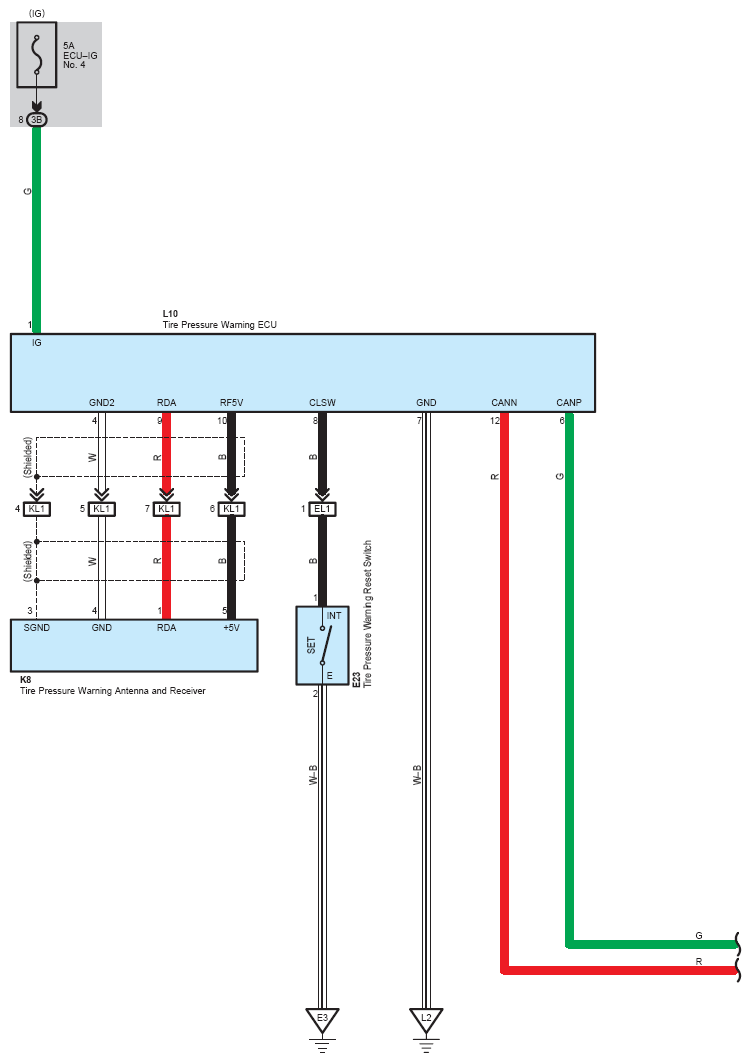

Fig 1: Tire Pressure Warning System - Circuit Diagram (1 Of 5)
G07555771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

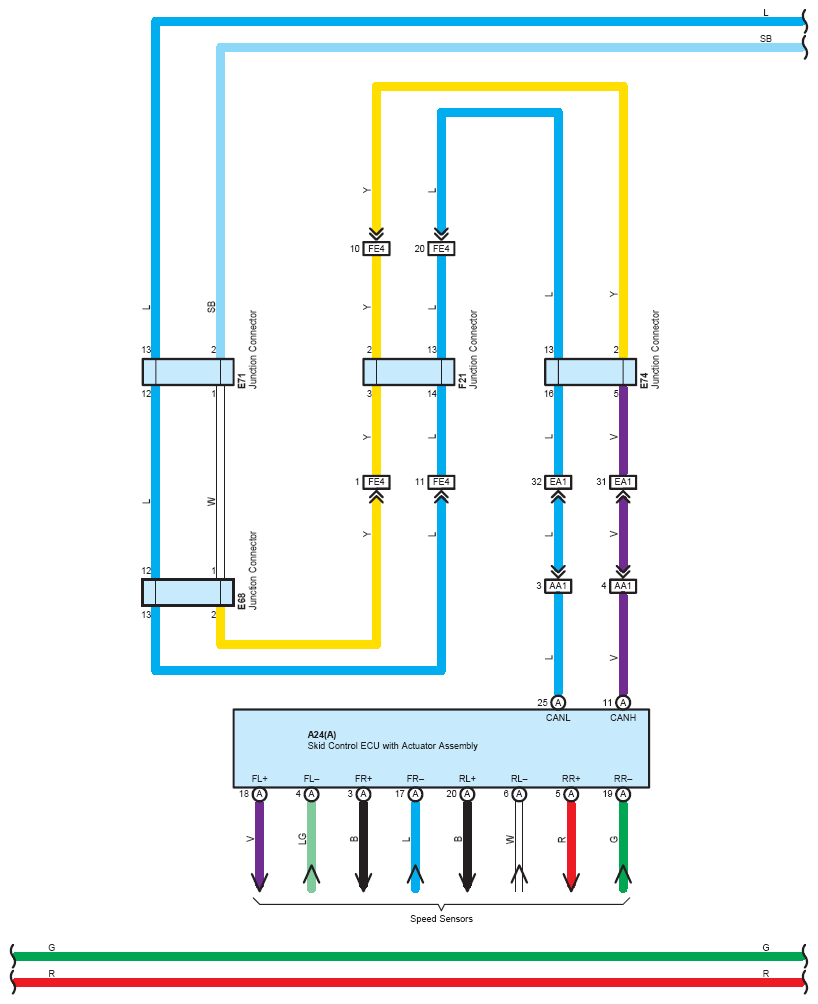

Fig 2: Tire Pressure Warning System - Circuit Diagram (2 Of 5)
G07555772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

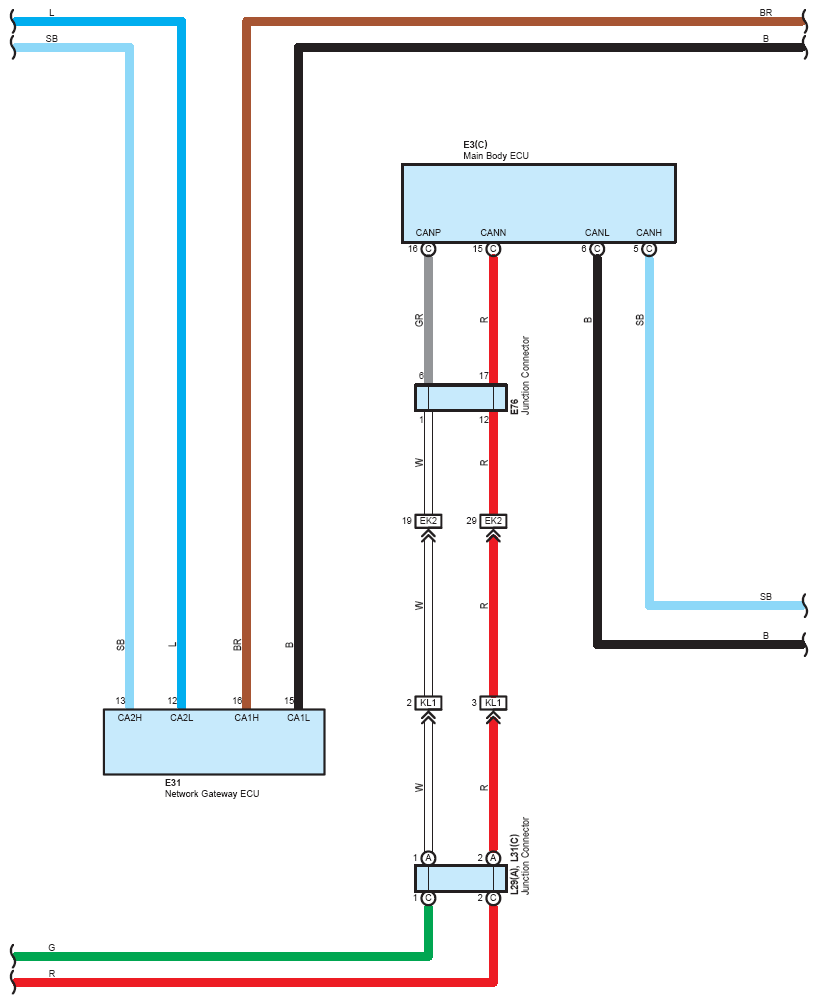

Fig 3: Tire Pressure Warning System - Circuit Diagram (3 Of 5)
G07555773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

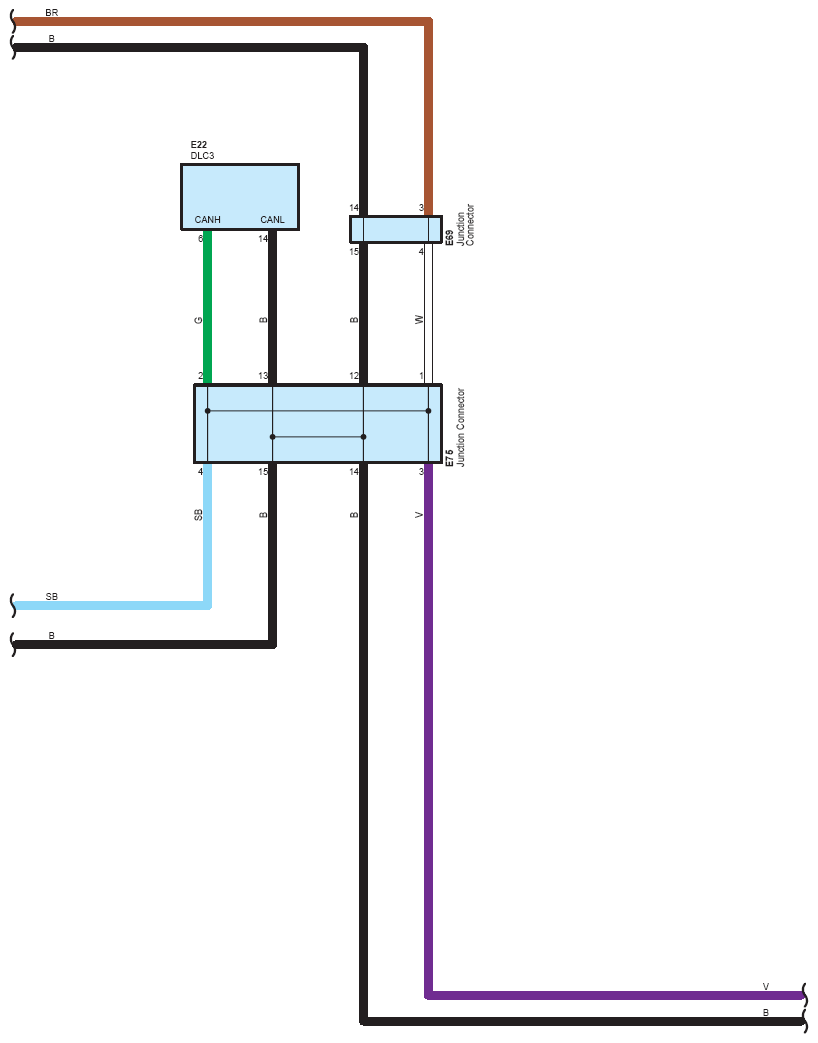

Fig 4: Tire Pressure Warning System - Circuit Diagram (4 Of 5)
G07555774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

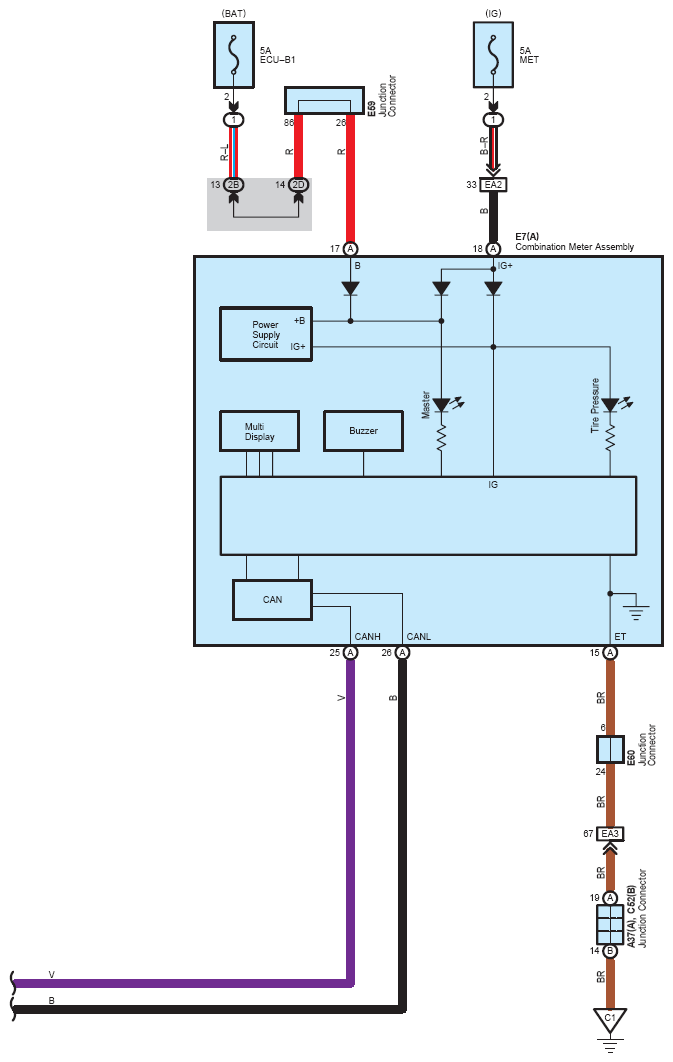

Fig 5: Tire Pressure Warning System - Circuit Diagram (5 Of 5)
G07555775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
