Customize Parameters

HINT:

The following items can be customized.

1. CUSTOMIZING FUNCTION WITH TECHSTREAM
   1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
      TILT & TELESCOPE



      Display	Default	Contents	Setting
      Autoaway / Return function	ON	Turn the auto away/return function ON/OFF	ON/OFF

   2. INTUITIVE PARKING ASSIST SYSTEM
      WARNING



      Display	Default	Contents	Setting
      Rr Sensor Onset Range	Wide	Sets the buzzer activation range for the rear sensors.	Narrow or Wide
      Keep Sense Buzzer	Avail	Makes the buzzer sound when the distance between the vehicle and obstacle does not change for more than 3 seconds.	Not Avail or Avail
      Fr & Rr Buzzer Volume	H	Changes the buzzer volume setting.	L, M1, M2, M3 or H

      SENSOR



      Display	Default	Contents	Setting
      Sensor Condition N	Avail	Makes the sensors available when the shift lever is in N.	Not Avail or Avail
      Reverse Range Front Sensor	F	Changes the operation setting for the vehicle front sensors when the shift lever is in R.	F or F Stop
      Non P/R Range Rear Sensor	R Stop	Changes the operation setting for the vehicle rear sensors when the shift lever is not in P or R.	R, Rcrn or R Stop

      DISPLAY



      Display	Default	Contents	Setting
      Approach Display OFF	Avail	The display when moving away from a previously detected obstacle.	Not Avail or Avail
      Display Mode	All	The display mode setting (when the intuitive parking assist system is normal).	All or Undisp

   3. POWER DOOR LOCK CONTROL SYSTEM
      DOOR LOCK



      Display	Default	Contents	Setting
      Unlock Key Twice	ON	Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For the OFF setting, turning it once unlocks all doors.	ON/OFF
      Auto Lock	OFF	Function that locks all doors when the vehicle speed reaches a certain level.	ON/OFF
      Auto Lock/Shift	ON	With the engine running and all doors closed, function that locks all doors when the shift lever is moved from P to any position other than P.	ON/OFF
      Auto Unlock/Shift	ON	Function that unlocks all doors when the shift lever is moved to P from any position other than P while the engine switch is on (IG).	ON/OFF
      All Unlock/Open-Close	OFF	Function that unlocks the other doors when the driver side door is opened within 10 seconds after the engine switch is turned off.	ON/OFF

   4. WIRELESS DOOR LOCK CONTROL SYSTEM
      WIRELESS DOOR LOCK



      Display	Default	Contents	Setting
      Wireless Control	ON	Function that turns the wireless door lock function on or off.	ON/OFF
      Hazard Answer Back	ON	When the lock switch on the transmitter is pressed, this function illuminates the hazard warning lights once. When the unlock switch is pressed, the hazard warning lights illuminate twice.	ON/OFF
      Open Door Warning	ON	If a door is not completely closed and the transmitter lock switch is pressed, this function makes the buzzer sound for 10 seconds.	ON/OFF
      Unlock 2 Operation	ON	Function that unlocks the driver side door when the unlock switch on the transmitter is pressed once, and unlocks all doors when the switch is pressed twice. If the setting is OFF, pressing the unlock switch once makes all the doors unlock.	ON / OFF
      Panic Alarm Function	ON	Function to operate the theft deterrent system by continuously pressing the panic switch on transmitter for 1 second or more.	ON/OFF
      Wireless Buzzer Volume	Level 7	This function changes the wireless buzzer volume.	Level 0/Level 1/Level 2/Level 3/Level 4/Level 5/Level 6/Level 7
      Auto Lock Time	60 s	Function to change the time until relocking after unlocking with the wireless door lock function.	30 s/60 s/120 s
      Wireless Auto Lock	ON	Function to control the automatic relocking of doors after unlocking with the wireless door lock function.	ON/OFF

   5. SMART KEY SYSTEM (for Entry Function)
      SMART KEY / ACCESS



      Display	Default	Contents	Setting
      Park Wait Time*1	2.5s	Function that sets the waiting time to permit unlocking the door after the door is locked with the entry lock function.	0.5s/1.5s/2.5s/5s
      Ignition Area*2	ALL	Function to choose the available area for the key to start the engine and cancel the steering lock.	FRONT/ALL*3
      Back Door Opening Operation*4	LONG	Back door opening the operation.	LONG/TWICE/OFF

      WARNING



      Display	Default	Contents	Setting
      Key Low Battery Warning*5	ON	Function that warns the driver that the key battery power is low.	ON/OFF

      HINT:

      *1: Waiting time to permit unlocking door after locking.

      *2: Entry ignition available area.

      *3: "FRONT" means front, and "ALL" means front, rear 1 and rear 2.

      *4: Back door open mode when vehicle is locked.

      *5: Warn when key battery becomes weak.

   6. ENTRY UNLOCK MODE SWITCHING FUNCTION
      1. To use the entry unlock mode switching function, make sure the engine switch is off and simultaneously press and hold the lock switch on the key and another key switch for 5 seconds.
         • When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, all door unlock mode.
         NOTE:

         After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

         • Driver door unlock mode (default):

           When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

         • All door unlock mode:

           When a touch sensor is touched, all doors unlock.

      2. The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and changes the smart key system to the entry unlock mode.
      3. The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.

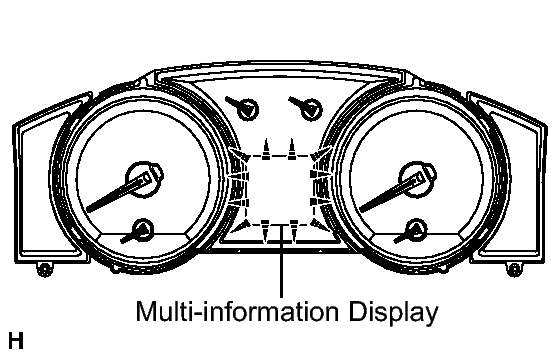

         Fig 1: Identifying Multi-Information Display

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         HINT:

         The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

         • Driver door unlock mode:
           Fig 2: Driver Door Unlock Mode Chart

           Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
         • All door unlock mode:
           Fig 3: All Door Unlock Mode Chart

           Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. KEY CANCEL

      The key cancel operation disables the following functions:

      • Entry Unlock/Lock
      • Key Lock-in Prevention
      • Memory Call
      • Entry Back Door Open
      • Warning
      • Entry Ignition
      1. The operation procedures are as follows:

         Precondition:

         Engine switch off, driver side door closed and unlocked.

         1. Unlock the driver side door once with the unlock switch of the key.
         2. Open the driver door within 5 seconds.
         3. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
         4. Perform close → open twice for the driver door within 30 seconds.

            (Driver door: Open condition → Close → Open → Close → Open)

         5. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
         6. Perform close → open once for the driver door within 30 seconds.

            (Driver door: Open condition → Close → Open)

         7. Close the driver door within 5 seconds.

            When key cancel is activated, the wireless door lock buzzer sounds twice.

            To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

   8. SMART KEY SYSTEM (for Start Function)
      SMART KEY / ACCESS



      Display	Default	Content	Setting
      Ignition Available Area	All	Function to choose the available area for the key to start the engine and cancel the steering lock.	Front/All

   9. THEFT DETERRENT SYSTEM
      SECURITY



      Display	Default	Contents	Setting
      Passive Mode (Security System)	OFF	Passive arming mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive arming mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened: Unlock any door by key or wireless operation Turn engine switch on (IG)	ON/OFF
      Warning by Horn	ON	Function that allows vehicle horns and security horn to be used as warning device.	ON/OFF
      Entry Delay Time	14 s	Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE.	0 s/14 s/30 s

   10. METER AND GAUGE SYSTEM
       WARNING



       Display	Default	Contents	Setting
       Driver Side Seatbelt Warning Buzzer	ON	To change the seat-belt warning buzzer.	ON/OFF
       Front Passenger Side Seatbelt Warning Buzzer	ON	To change the seat-belt warning buzzer.	ON/OFF

       UNIT CONVERSION



       Display	Default	Contents	Setting
       Units By Region	Different for each vehicle	To change the units of the display.	Km/l JP / Km/l / Mi/g US / Mi/g UK

       DISPLAY



       Display	Default	Contents	Setting
       Language	None	To change the language of the display.	Eng US / Eng UK / French / German / Spanish / Italian / Japanes / CHN Sim / CHN Trd

   11. SEAT BELT WARNING SYSTEM
       SEAT BELT WARNING



       Display	Default	Contents	Setting
       D-Seatbelt Warning Buzzer	ON	If the driver side seat belt is unfastened and the vehicle is driven at approximately 20 km/h (12.5 mph) or more, this system sounds the seat belt warning buzzer.	ON/OFF
       P- Seatbelt Warning Buzzer	ON	If the front passenger side seat belt is unfastened and the vehicle is driven at approximately 20 km/h (12.5 mph) or more, this system sounds the seat belt warning buzzer.	ON/OFF

   12. AIR CONDITIONING SYSTEM
       AIR CONDITIONER



       Display	Default	Contents	Setting
       Set Temperature Shift	Normal	Function to set the temperature shift.	+2 C/+1 C/Normal/-1 C/-2 C
       Evaporator Control	Automatic	Function to set the evaporator control to the automatic position (Automatic) to save power, or to the coldest position (Manual) to dehumidify the air and to prevent the windows from fogging up.	Manual/Automatic
       Compressor/Air Inlet DEF operation	Link	Function to automatically turn the A/C on when the FRONT DEF button is pressed.	Normal/Link
       Compressor Mode	Automatic	Function to turn the A/C on automatically by pressing the AUTO button when the blower is on and the A/C is off.	Manual/Automatic
       Air Inlet Mode	Automatic	Function to automatically change to recirculation mode when the A/C is turned on.	Manual/Automatic
       Foot/DEF Auto Mode	ON	Function to turn the airflow from FOOT/DEF on automatically when auto mode is on.	ON/OFF
       Foot/DEF Automatic Blow Up Function	ON	Function to change the blower level automatically when the defroster is on.	ON/OFF
       Ambient Temperature Shift	Normal	Function to control the shifted ambient temperature in relation to the displayed ambient temperature.	+3 C/+2 C/+1 C/Normal/-1 C/-2 C/-3 C
       Button Press Buzzer	ON	Function to sound a buzzer when a button is pressed.	ON/OFF

   13. POWER WINDOW CONTROL SYSTEM
       POWER WINDOW



       Display	Default	Contents	Setting
       Door Key P/W Up	OFF	Function that raises all the power windows when, with the engine switch off, a key is used to hold the driver door key cylinder to the lock position for more than 2.3 sec.	ON/OFF
       Door Key P/W Down	OFF	Function that lowers all the power windows when, with the engine switch off, a key is used to hold driver door key cylinder to the unlock position for more than 2.3 sec.	ON/OFF
       P/W Down W/ Transmit	OFF	Function that lowers all the power windows when, with the engine switch off, the unlock switch on the transmitter is pressed and held for more than 3.0 sec.	ON/OFF
       P/W Up W/ Smart	OFF	Function that raises all the power windows when, with the engine switch off, the entry lock switch on the driver side door outside handle is pressed and held for more than 3.0 sec.	ON/OFF

   14. SLIDING ROOF SYSTEM
       SLIDE ROOF



       Display	Default	Contents	Setting
       Door Key Related Open	ON	The function to manually open the sliding roof linked with the power window if holding the driver side door key for 3 seconds or more to unlock position when the engine switch is off.	ON/OFF
       Door Key Related Close	ON	The function to manually close the sliding roof linked with the power window if holding the driver side door key for 3 seconds or more to lock position when the engine switch is off.	ON/OFF
       Wireless Key Related Open	OFF	The function to manually open the sliding roof linked with the power window if pressing the transmitter unlock switch for 3 seconds or more when the engine switch is off.	ON/OFF
       Door Handle Lock Button	ON	The function to manually close the sliding roof linked with the power window if pushing the door lock switch for 3 seconds or more when the engine switch is off and the key is outside vehicle.	ON/OFF
       Door Key Related Operation	Slide	The function to select tilt up or slide open of manual sliding roof operation linked with the power window activated by holding the driver side door key for 3 seconds or more to unlock position when the engine switch is off.	Tilt/Slide
       Wireless Key Related Operation	Slide	The function to select tilt up or slide open of manual sliding roof operation linked with the power window activated by pressing on the transmitter unlock switch for 3 seconds or more when the engine switch is off.	Tilt/Slide

   15. LIGHTING SYSTEM
       LIGHT CONTROL



       Display	Default	Contents	Setting
       Disp Ex ON Sen	NORMAL	Changes brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock light*2.	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
       Disp Ex OFF Sen	NORMAL	Changes brightness when canceling lowering lights such as the combination meter indicator light, A/C indicator light, and clock light*3.	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
       Light Auto OFF Delay	30s	Function to continue illuminating the headlights for a certain period of time after closing all the doors with the engine switch turned from on to off under the condition that the light control switch is at head or AUTO with the headlights ON.	OFF/30s/60s/90s
       Sensitivity	NORMAL	Function to adjust the sensitivity of the lighting illumination*1	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
       DRL Function	ON	DRL Control	ON/OFF

       ILLUMINATED ENTRY



       Display	Default	Contents	Setting
       Lighting Time	15s	To change the lighting time after closing the door (it will quickly fade out in the case of turning the engine switch on (IG)).	7.5s/15s/30s
       I/L when ACC OFF	ON	Function to light the interior light when the engine switch is turned from on (IG) to off.	ON/OFF
       I/L ON W/Door Key Unlock	ON	Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch.	ON/OFF
       Room Light when Aprchd	ON	Dome light illumination (when approaching vehicle)	ON/OFF

       HINT:

       *1: The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

       *1



       Lighting brightness	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

       *2



       Brightness when lowering the lights	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

       *3



       Brightness when canceling the lowering of the lights	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2
