Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

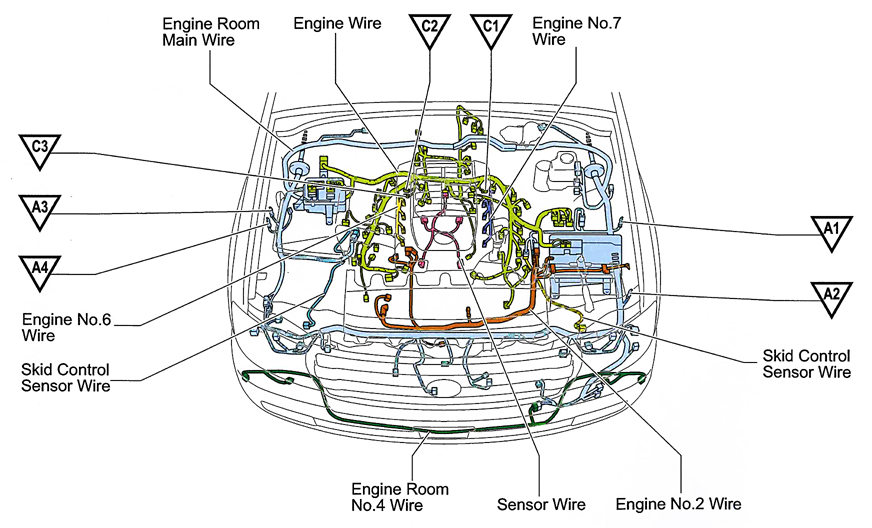

| A1 | Left side of engine compartment. See Figure. |
| A2 | Left front of engine compartment. See Figure. |
| A3 | Right side of engine compartment. See Figure. |
| A4 | Right front corner of engine compartment. See Figure. |
| C1 | Left rear of engine. See Figure. |
| C2 | Right rear of engine. See Figure. |
| C3 | Right rear of engine. See Figure. |

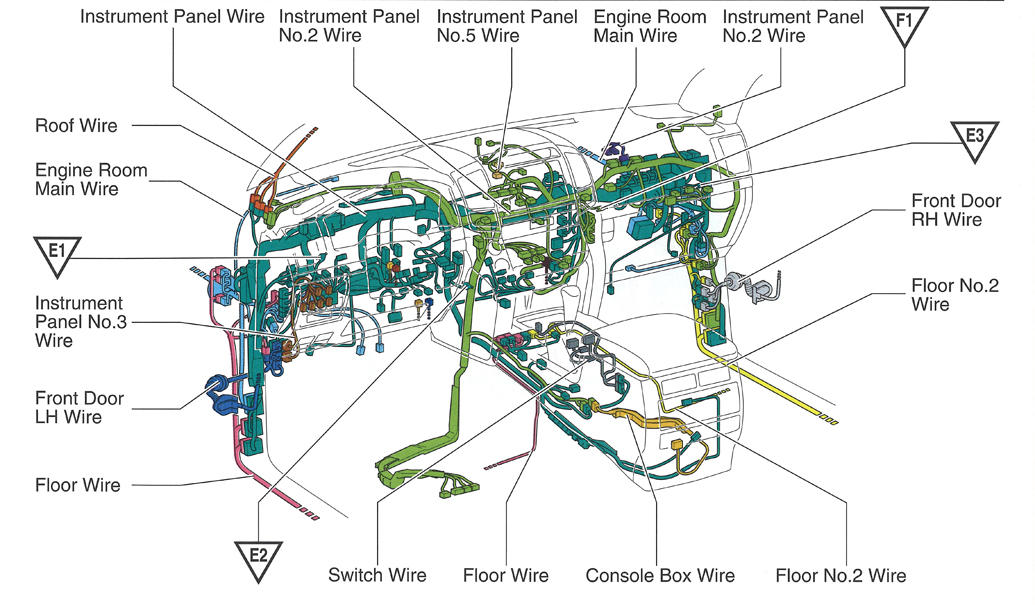

| E1 | Left side of dash. See Figure. |
| E2 | Center of dash. See Figure. |
| E3 | Right side of dash. See Figure. |
| F1 | Right side of dash. See Figure. |

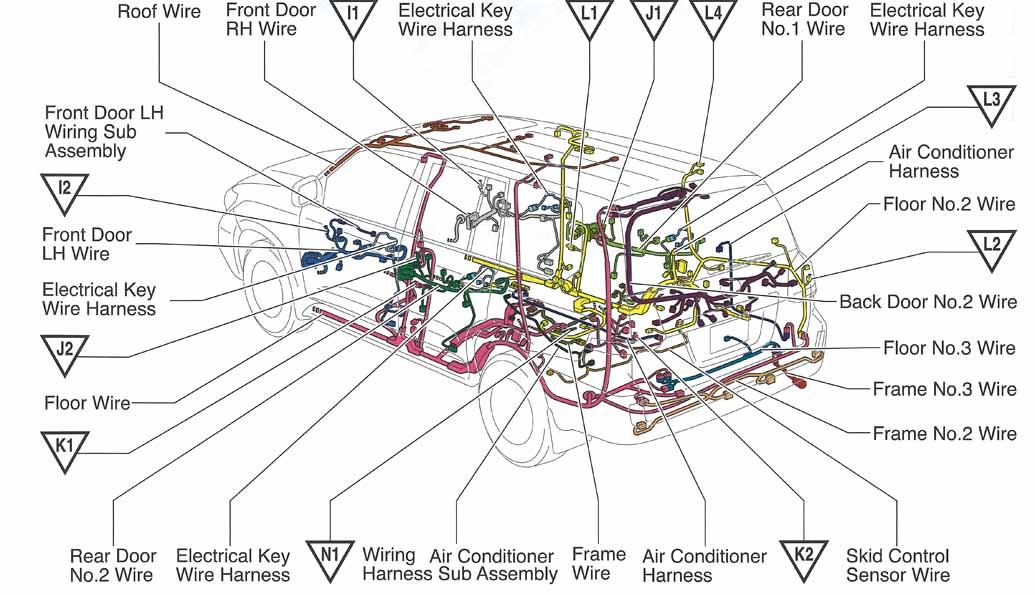

| I1 | Right passenger's door. See Figure. |
| I2 | Left driver's door. See Figure. |
| J1 | Right rear door. See Figure. |
| J2 | Left rear door. See Figure. |
| K1 | Left "B" pillar. See Figure. |
| K2 | Left "D" pillar. See Figure. |
| L1 | Right "B" pillar. See Figure. |
| L2 | Right "D" pillar. See Figure. |
| L3 | Right "C" pillar. See Figure. |
| L4 | Right rear roof rail. See Figure. |
| N1 | Under rear seats. See Figure. |
