Installation

NETWORKING: NETWORK GATEWAY ECU: INSTALLATION

1. INSTALL NETWORK GATEWAY ECU

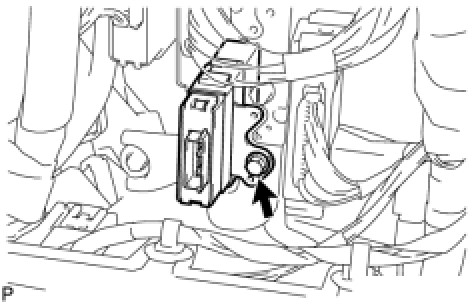

(a) Install the network gateway ECU with the bolt.

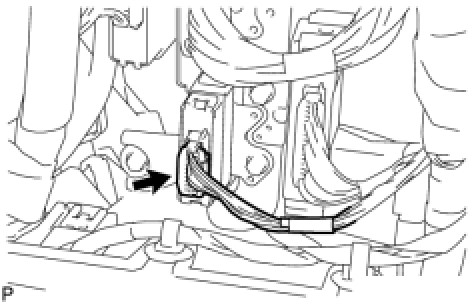

(b) Connect the connector.





2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
