Fuse Block

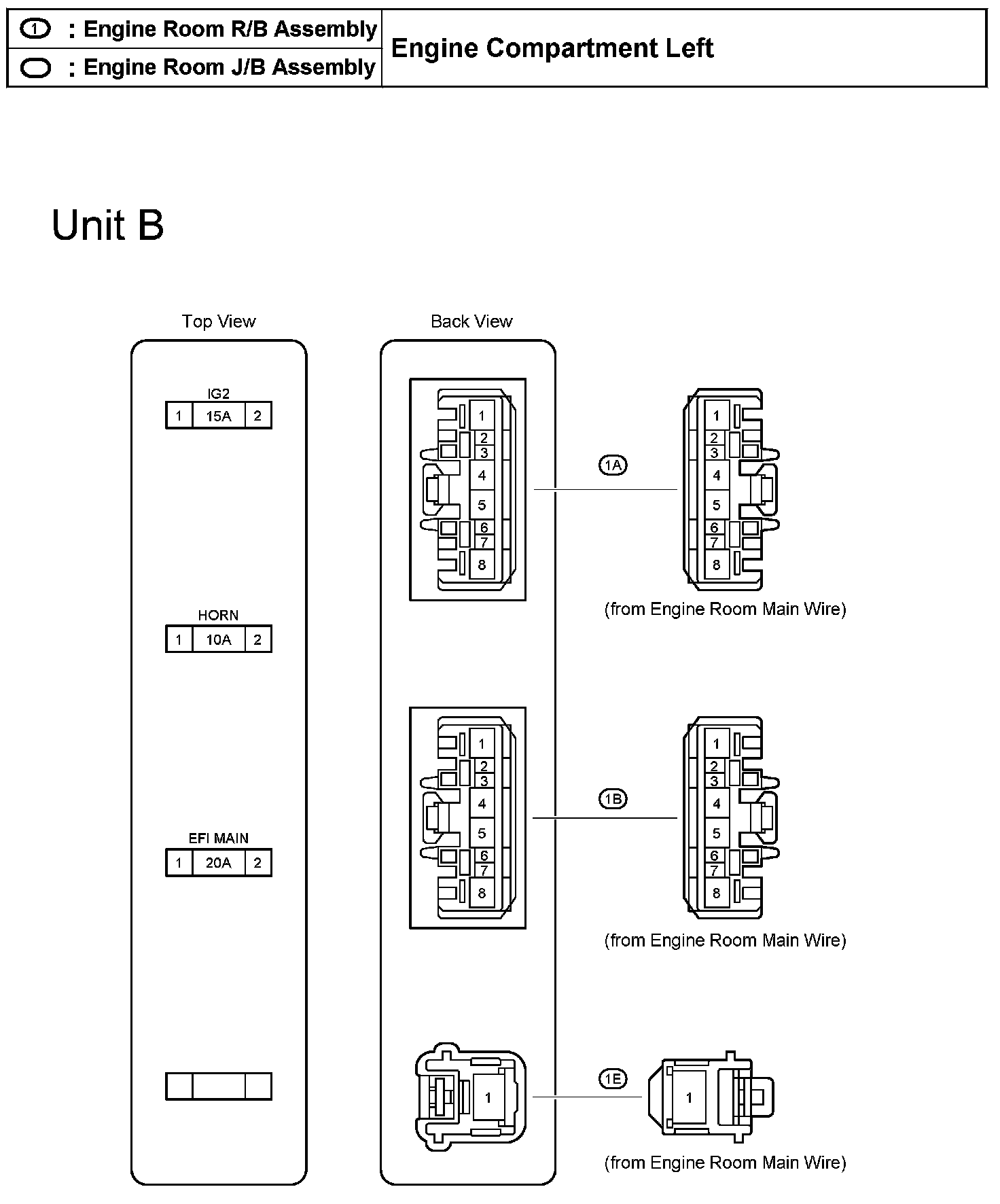

Engine Room R/B, J/B Assembly - Engine Compartment Left:

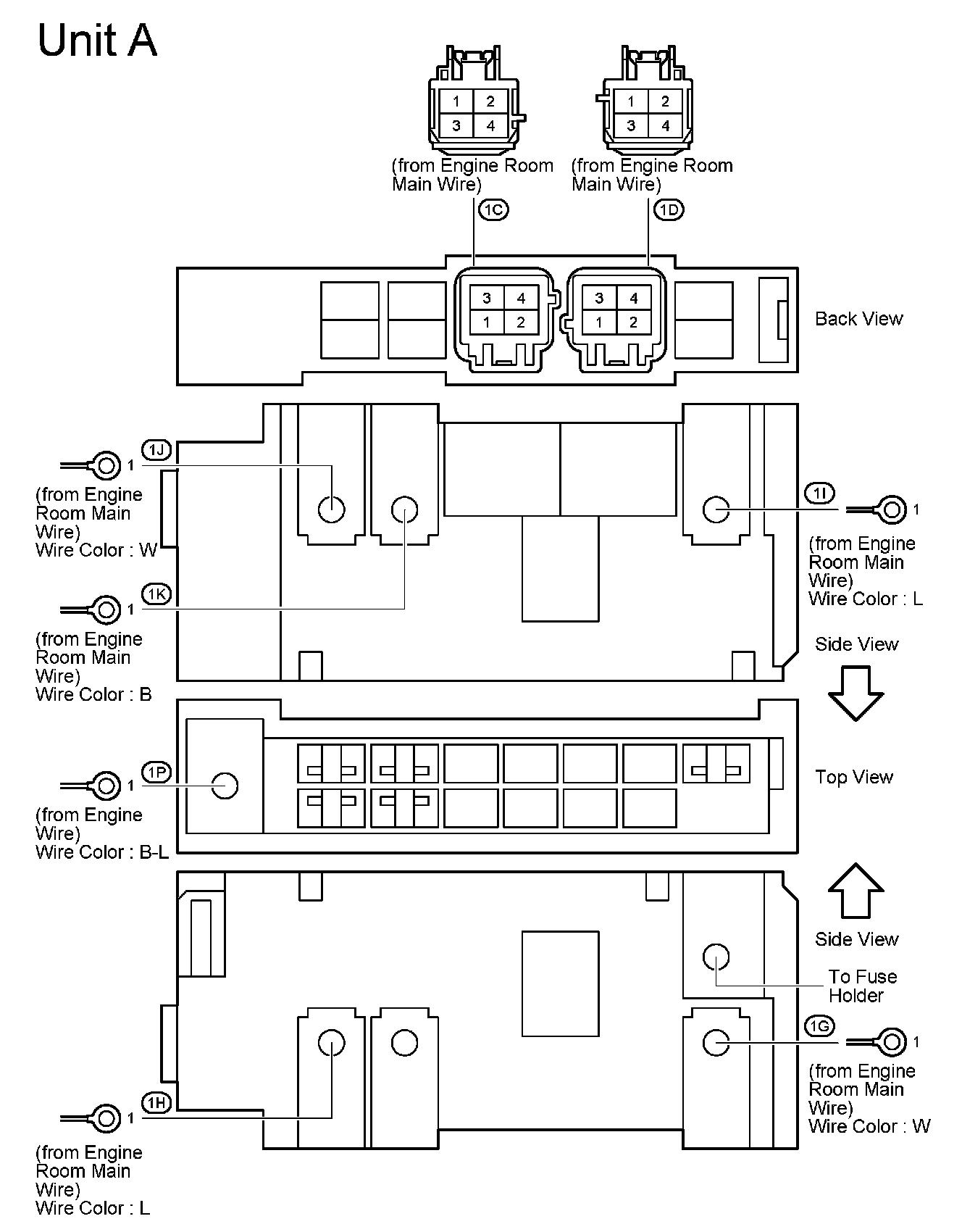

Engine Room R/B, J/B Assembly - Engine Compartment Left:

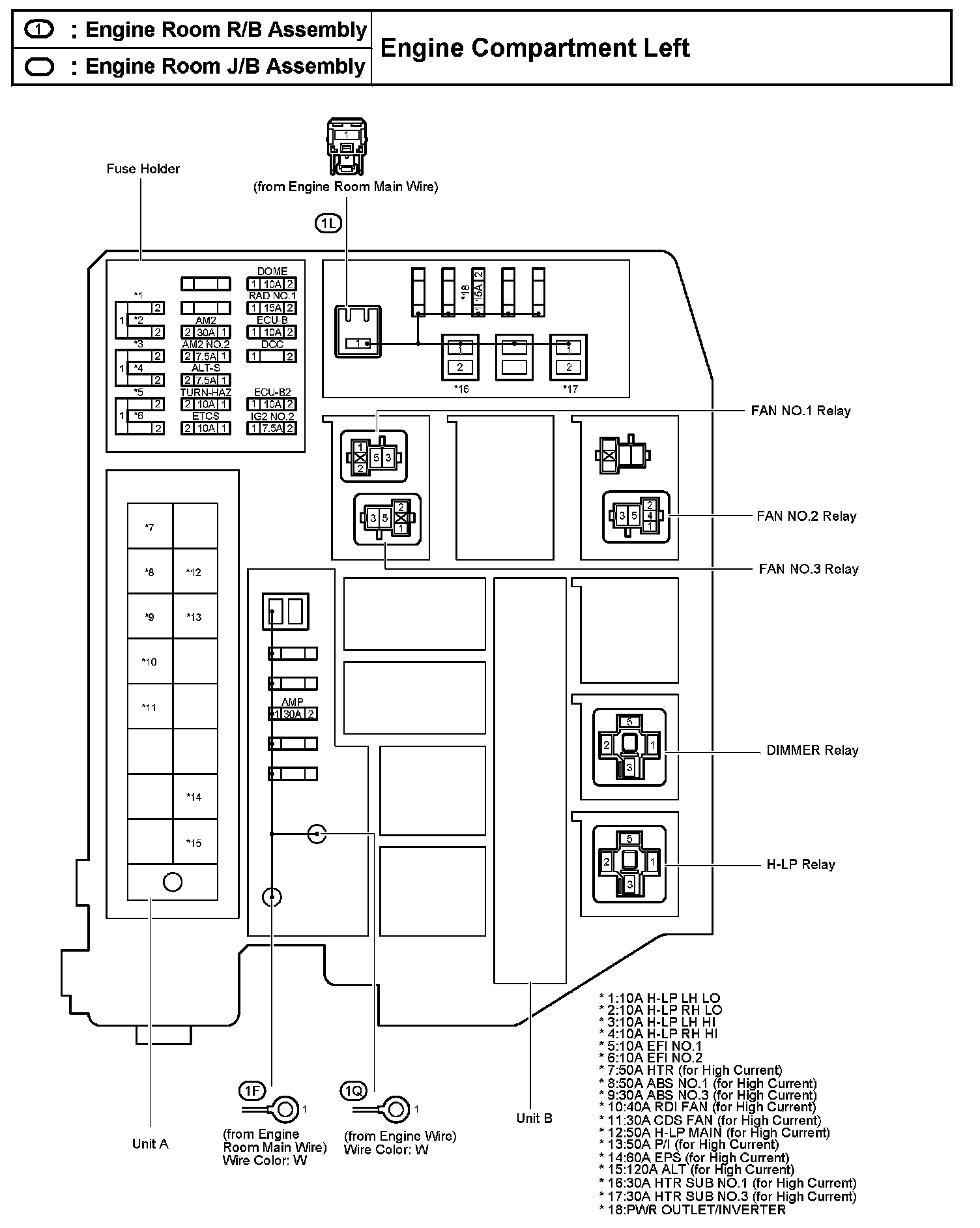

Engine Room R/B, J/B Assembly - Engine Compartment Left:

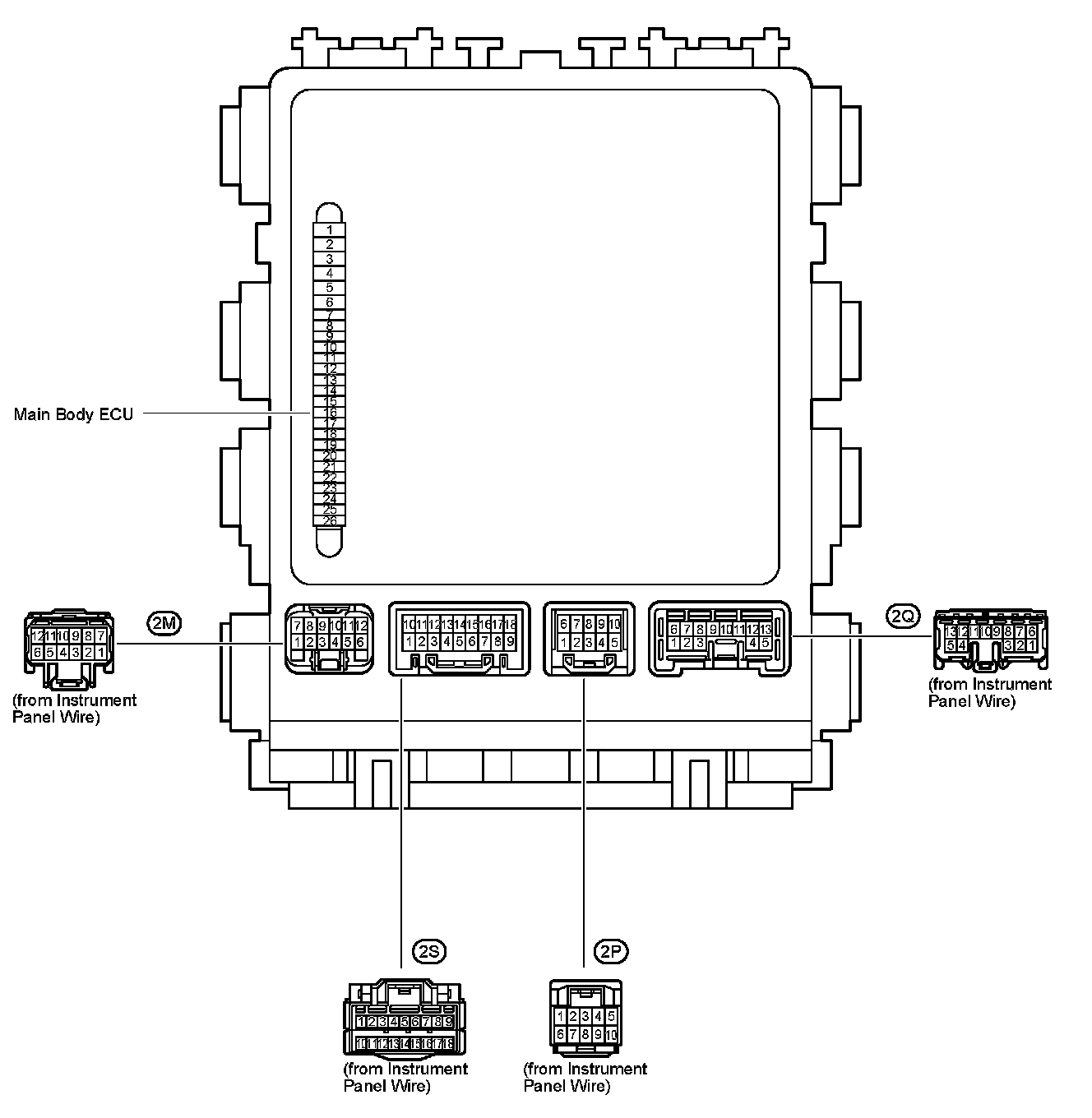

Driver Side J/B Assembly - Cowl Side Left:

Driver Side J/B Assembly - Cowl Side Left:

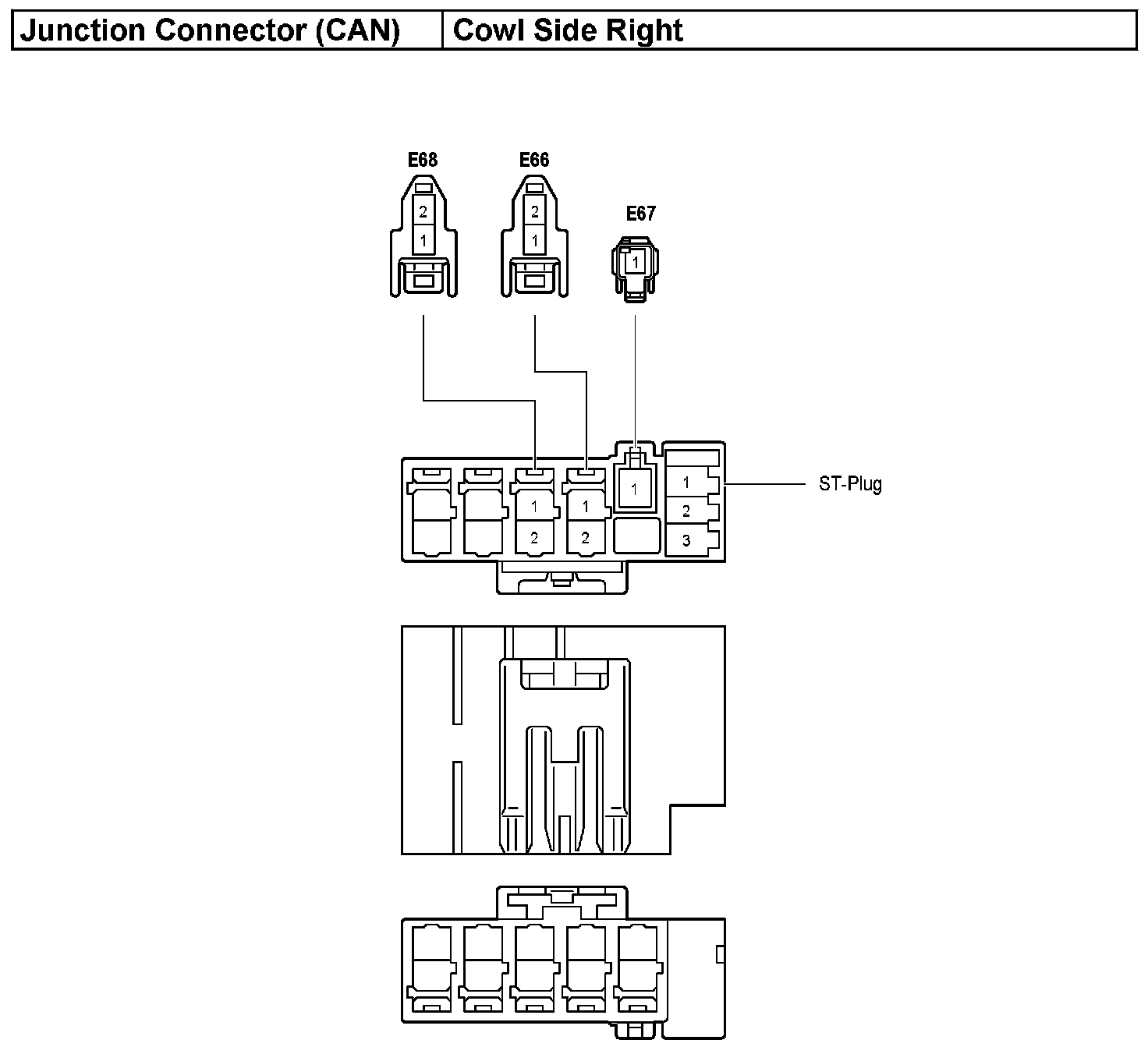

Junction Connector (CAN) - Cowl Side Right:
