Installation

2AZ-FE ENGINE CONTROL: INTEGRATION RELAY: INSTALLATION

1. INSTALL INTEGRATION RELAY

(a) Connect the 3 connectors.

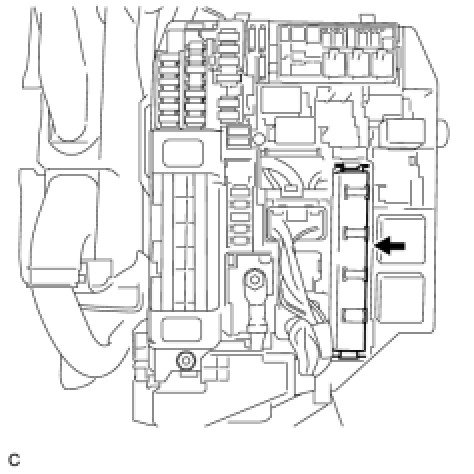

(b) Push the integration relay into the engine room relay block.





(c) Install the No. 1 relay block cover.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
