Components

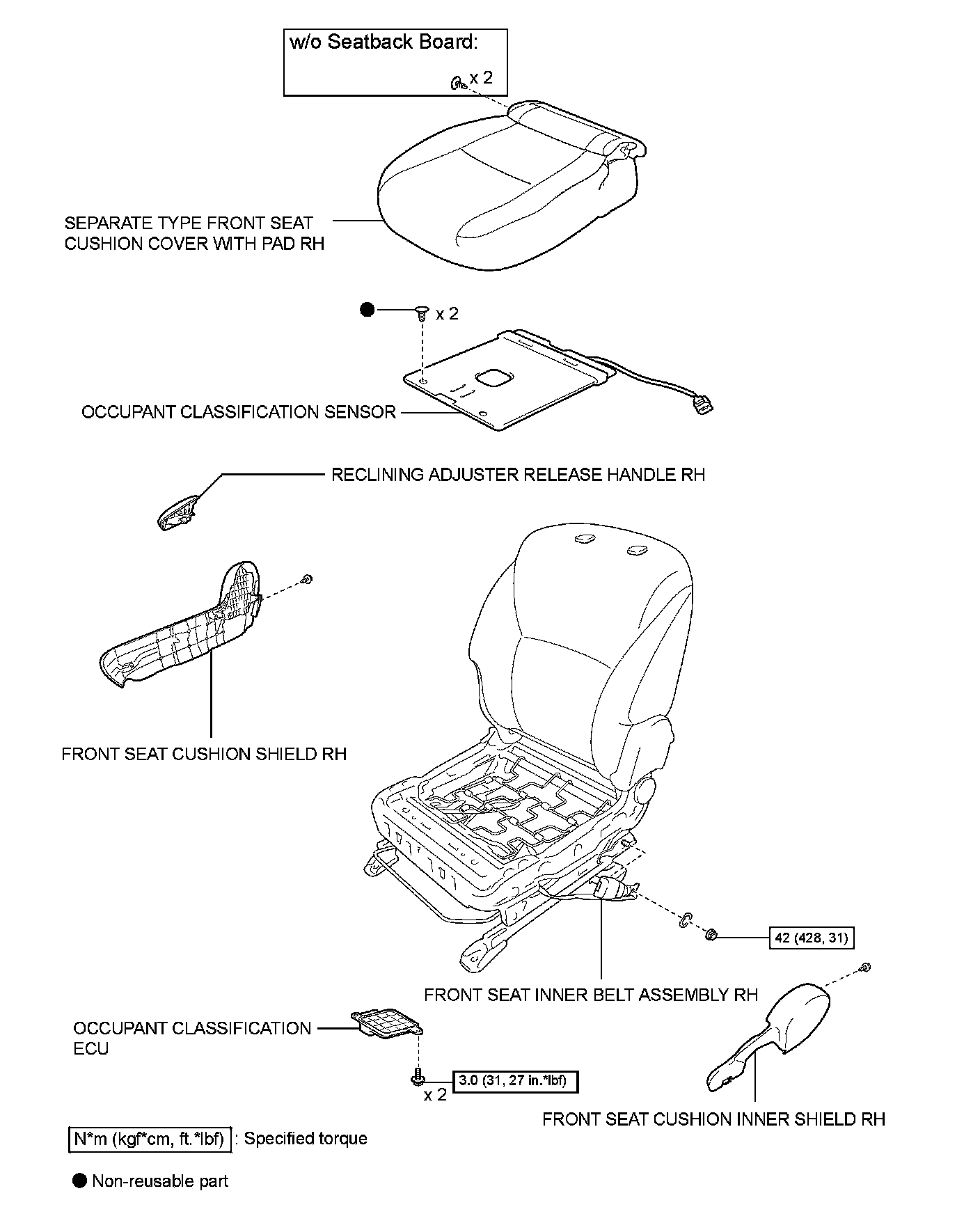

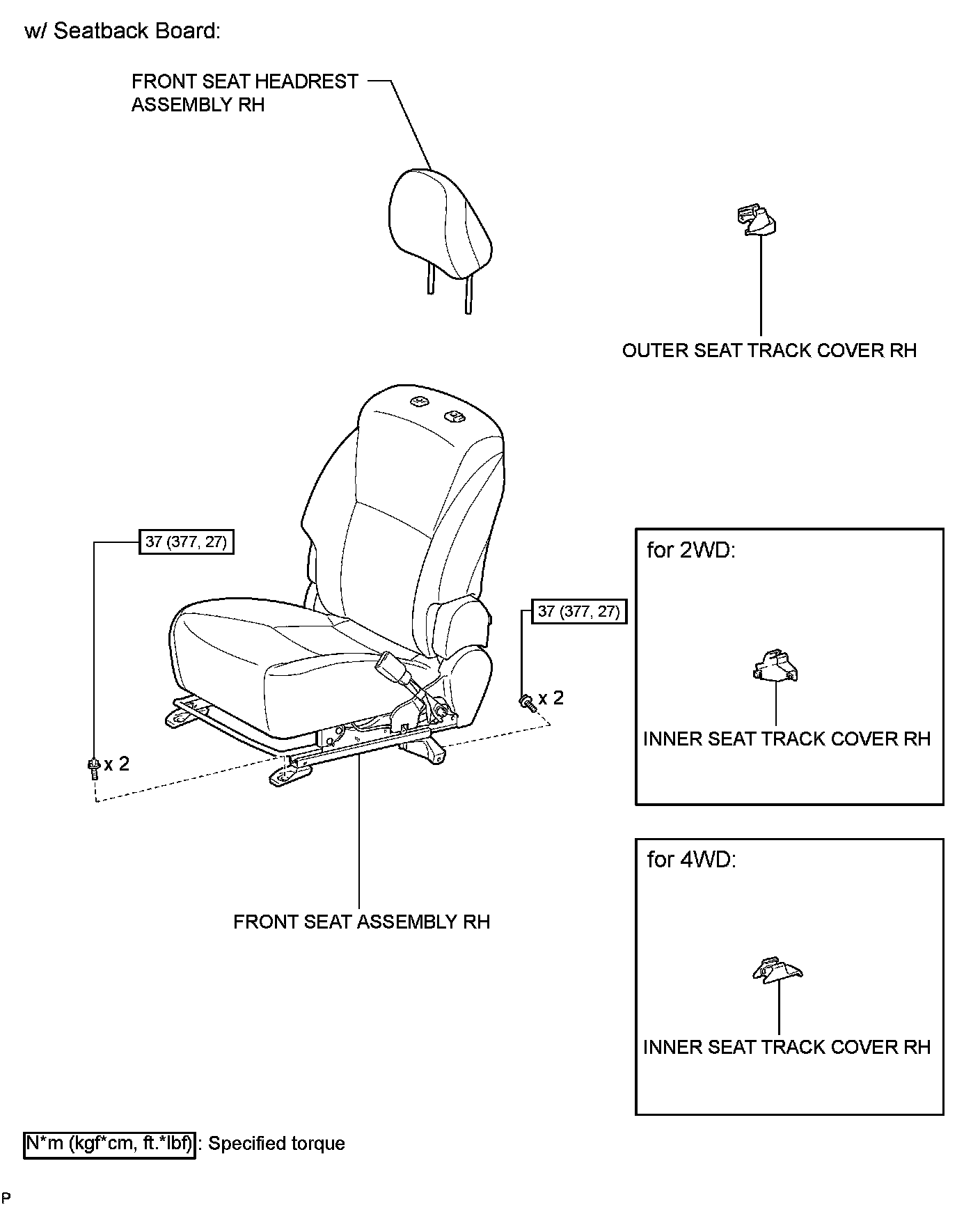

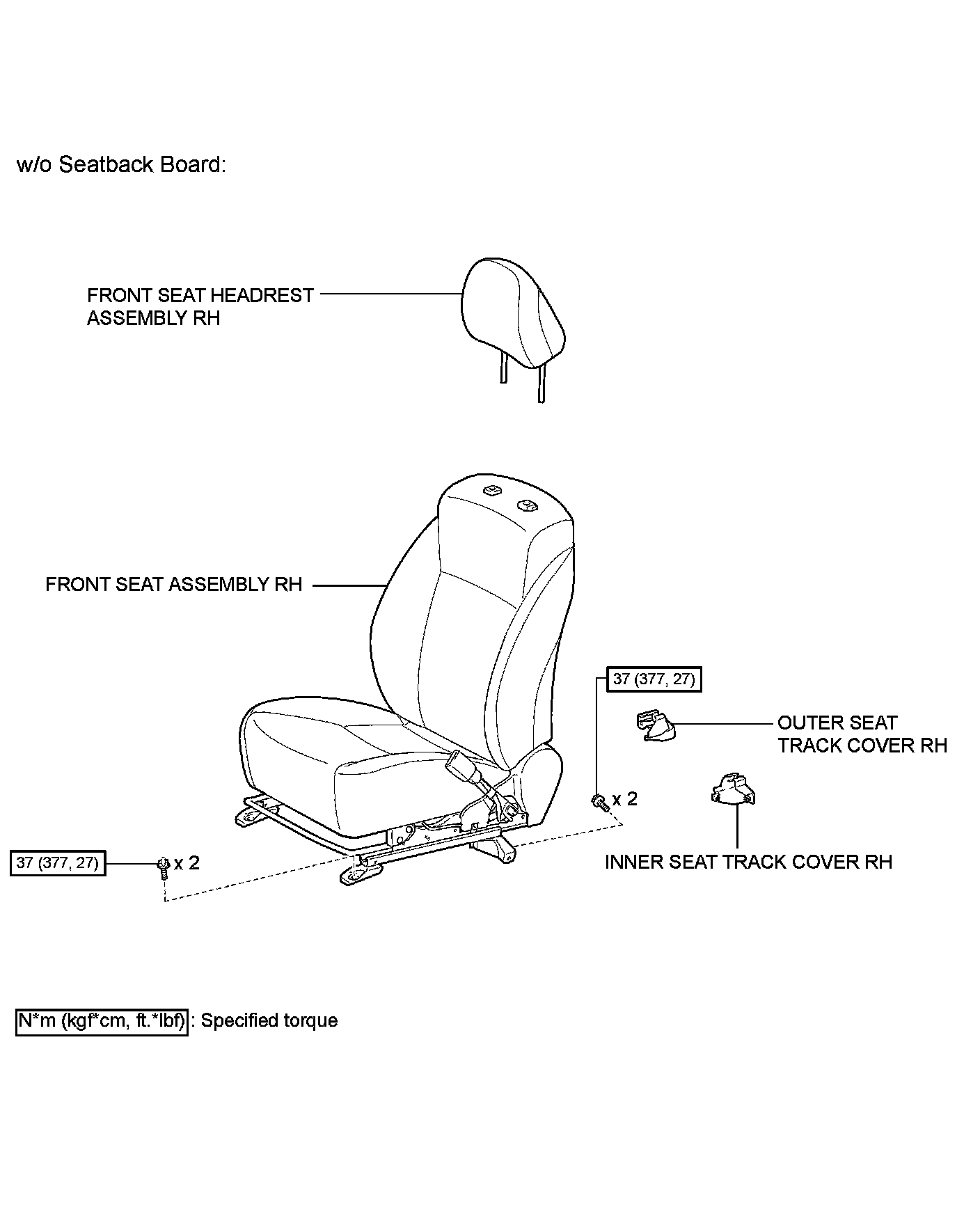

SUPPLEMENTAL RESTRAINT SYSTEMS: FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): COMPONENTS
