Inspection

SUPPLEMENTAL RESTRAINT SYSTEMS: FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): INSPECTION

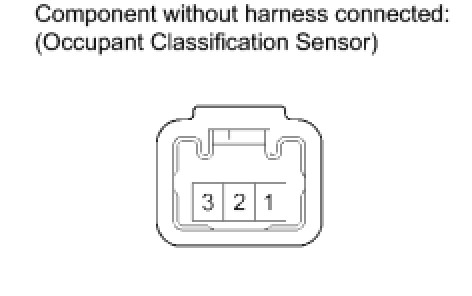

1. INSPECT OCCUPANT CLASSIFICATION SENSOR

(a) Measure the resistance according to the value(s) in the table below.

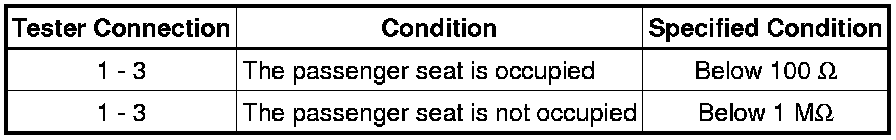

Standard Resistance:
