Installation

2AZ-FE STARTING: IGNITION SWITCH: INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

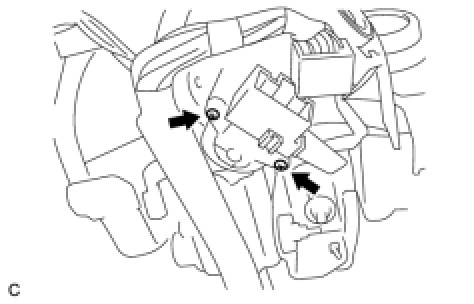

(a) Install the ignition switch with the 2 screws.

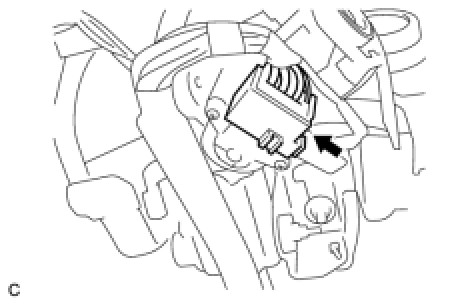

(b) Connect the connector.





2. INSTALL UPPER STEERING COLUMN COVER Installation

3. INSTALL LOWER STEERING COLUMN COVER Installation

4. ADJUST SPIRAL CABLE Installation

5. INSTALL STEERING WHEEL ASSEMBLY Installation

6. INSTALL STEERING PAD Installation

7. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

8. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

9. INSPECT STEERING WHEEL CENTER POINT

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

11. INSPECT STEERING PAD Installation

12. CALIBRATE TORQUE SENSOR ZERO POINT

Programming and Relearning

13. INSPECT SRS WARNING LIGHT

Diagnosis System
