Air Conditioning Amplifier Communication Stop Mode: Wiring Diagram

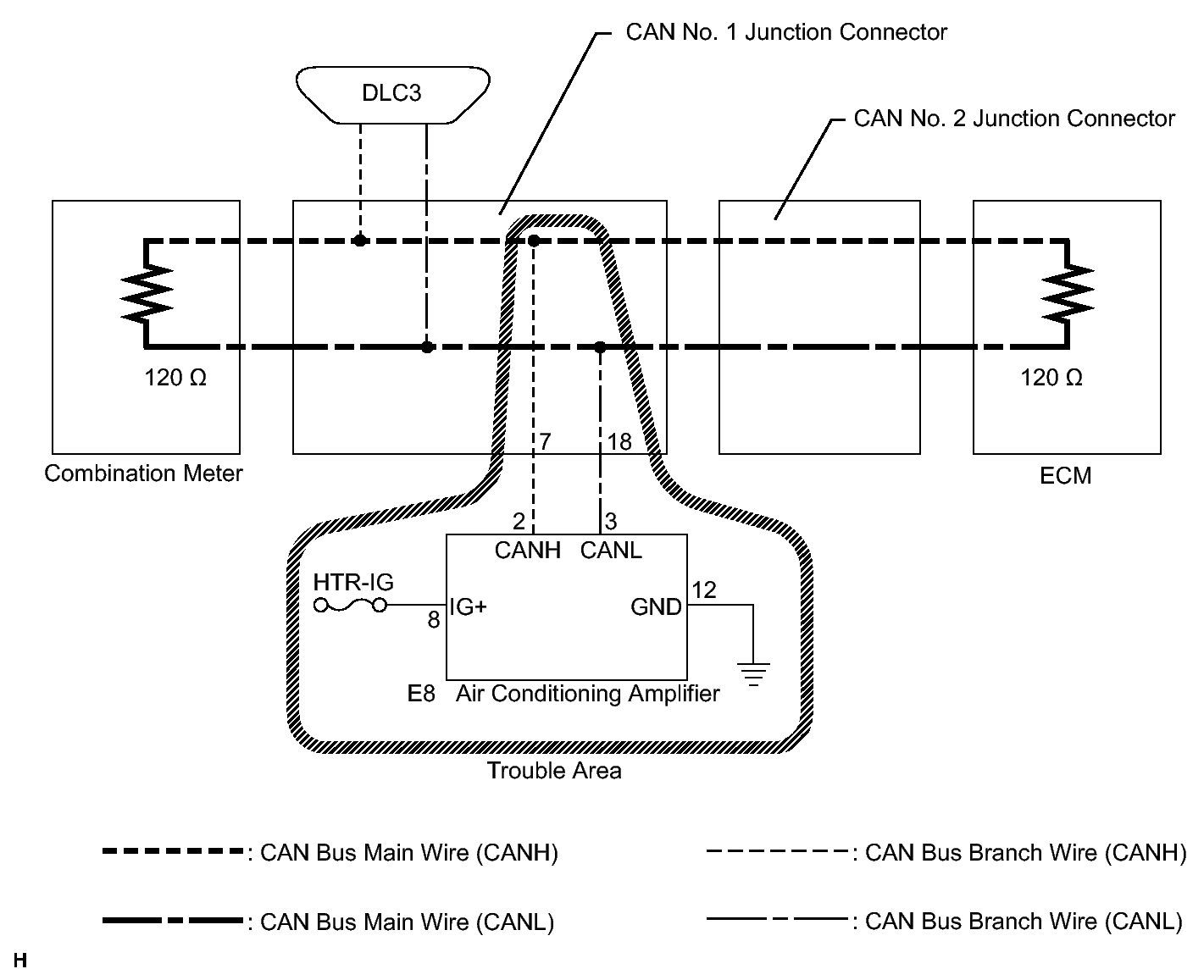

Fig 1: Air Conditioning Amplifier Communication -- Wiring Diagram
GTY243326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
