DTC U1002 (CAN No. 2 BUS), U0114: Lost Communication with Gateway Module (Network Gateway ECU); Lost Communication with 4WD Control ECU: Wiring Diagram

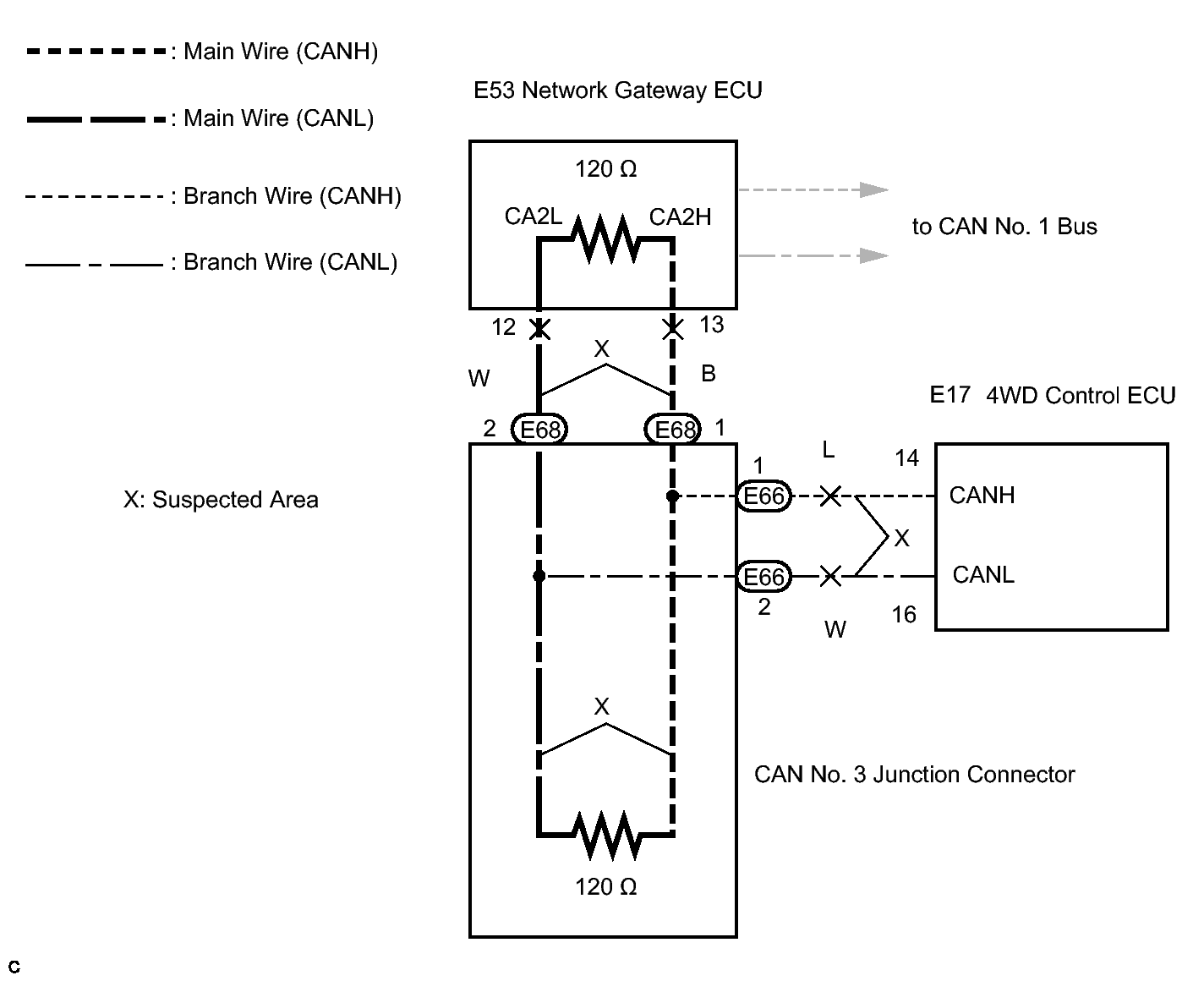

Fig 1: CAN Communication System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
