Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier: Procedure

1. Disconnect the connectors from the radio receiver and the stereo component amplifier.

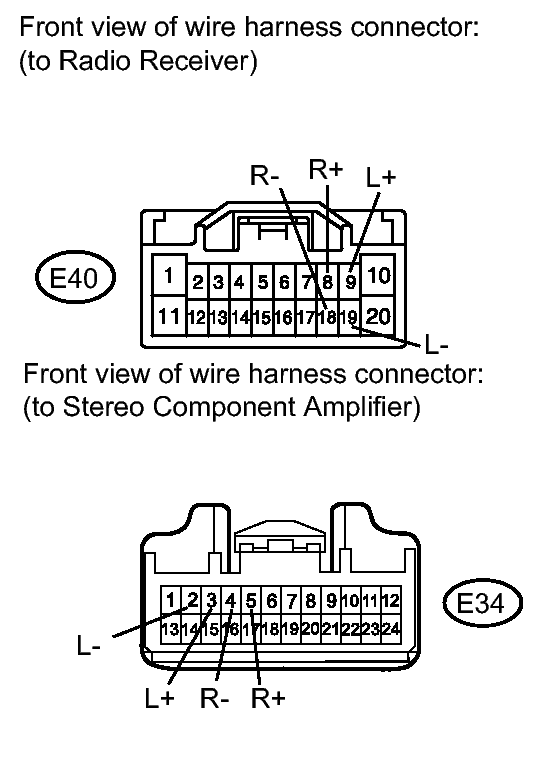

   Fig 1: Identifying E40 Radio Receiver And E34 Stereo Component Amplifier Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E40-9 (L+) - E34-3 (L+)	Always	Below 1 Ω
   E40-19 (L-) - E34-2 (L-)	Always	Below 1 Ω
   E40-8 (R+) - E34-5 (R+)	Always	Below 1 Ω
   E40-18 (R-) - E34-4 (R-)	Always	Below 1 Ω
   E40-9 (L+) - Body ground	Always	10 kΩ or higher
   E40-19 (L-) - Body ground	Always	10 kΩ or higher
   E40-8 (R+) - Body ground	Always	10 kΩ or higher
   E40-18 (R-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
