DTC 01-DD: Master Reset; DTC 01-E1: Voice Processing Device ON Error: Procedure

  1. CHECK RADIO RECEIVER POWER SOURCE CIRCUIT

    Refer to Radio Receiver Power Source Circuit. Refer to Radio Receiver Power Source Circuit .

    If the power source circuit is operating normally, proceed to the next step.

    NEXT: Go to next step

  2. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver connector.
      Fig 1: Identifying E40 Radio Receiver Connector
      GTY234717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E40-5 (ATX+) - E40-15 (ATX-) Always 60 to 80 Ω

    NG → See step   6

    OK: Go to next step

  3. IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE
    1. Enter diagnostic mode.

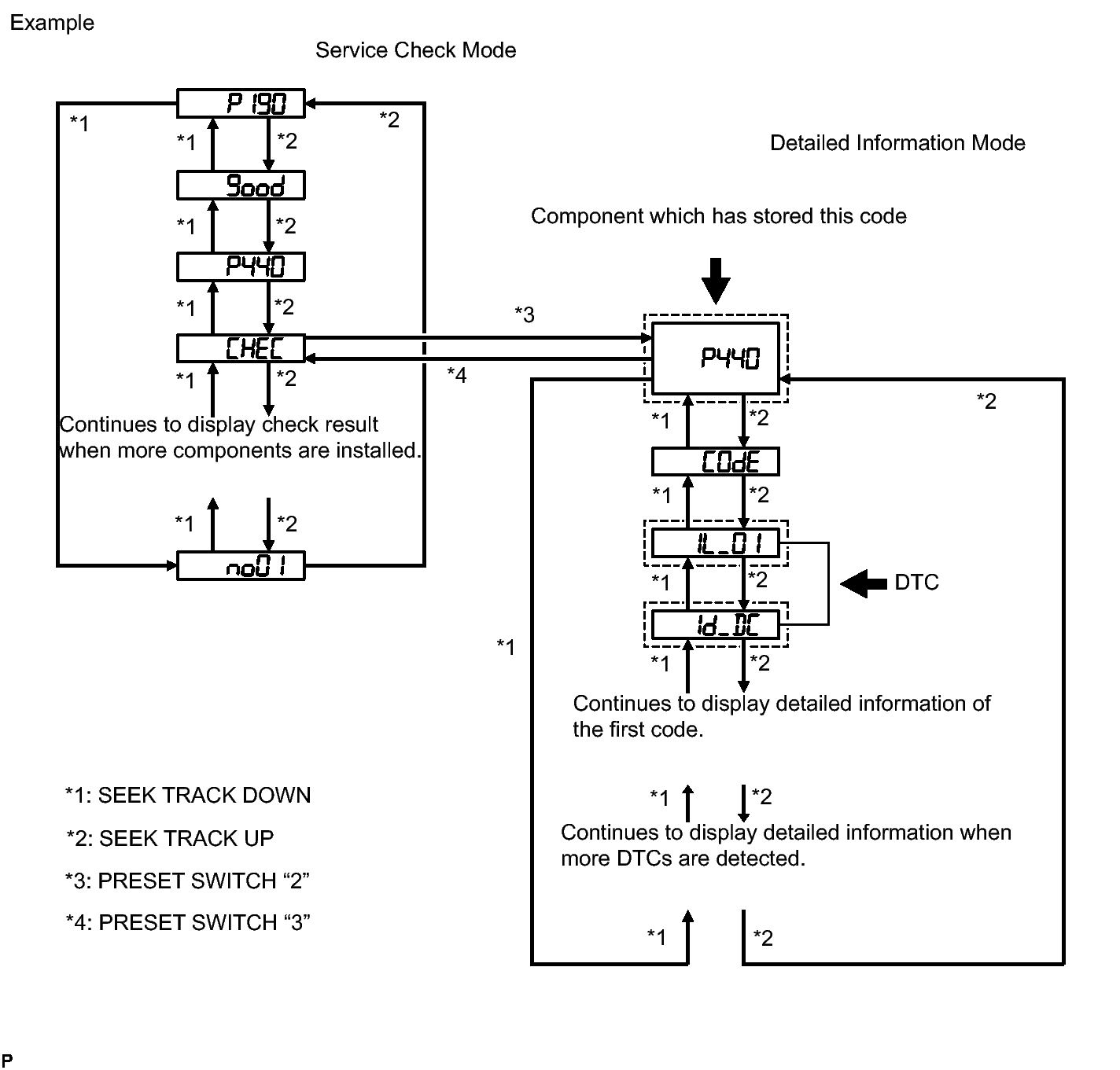

      Fig 2: Service Check Mode Flow Chart - Diagnostic Mode
      GTY150534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Press the preset switch "3" to change the mode to "Detailed Information Mode".
    3. Identify the component which has stored this code.
      COMPONENT TABLE

      Component Physical Address
      Stereo component amplifier 440

      HINT:

      • "P440" set by the stereo component amplifier is shown in the preceding illustration as an example.
      • For details of the DTC display, refer to DTC Check/Clear. Refer to DTC CHECK / CLEAR .

    NEXT: Go to next step

  4. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - COMPONENT WHICH HAS STORED THIS CODE)

    HINT:

    For details of the connectors, refer to Terminals of ECU. Refer to TERMINALS OF ECU .

    1. Referring to the following AVC-LAN Wiring Diagram, check the AVC-LAN circuit between the radio receiver and the component which has stored this code.
      1. Disconnect all connectors between the radio receiver and the component which has stored this code.
      2. Check for an open or short in the AVC-LAN circuit between the radio receiver and the component which has stored this code.

        OK

        There is no open or short circuit.

        Fig 3: AVC-LAN Wiring Diagram
        GTY229347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. REPLACE RADIO RECEIVER
    1. Replace the radio receiver with a known good one and check if the same problem occurs again.

      OK

      Malfunction disappears.

    NG → REPLACE COMPONENT WHICH HAS STORED THIS CODE

    OK → END

  6. REPLACE RADIO RECEIVER. Refer to  REMOVAL
