Rear Combination Light Assembly: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
  2. REMOVE SPARE WHEEL COVER CLAMP
  3. REMOVE SPARE WHEEL COVER ASSEMBLY
  4. REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY
    1. Remove the bolt.

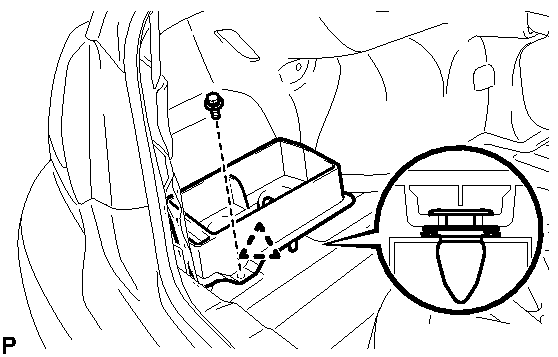

      Fig 1: Locating Luggage Compartment Side Tray Assembly Fasteners
      GTY303052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and remove the luggage compartment side tray assembly.
  5. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
    1. Push the 2 pins and remove the 2 No. 1 luggage compartment trim hooks.

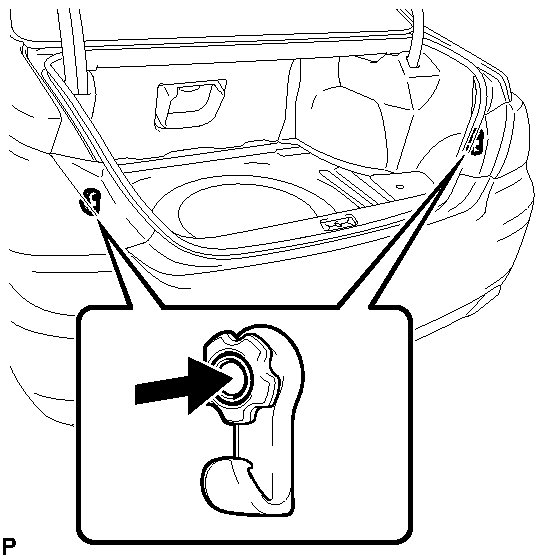

      Fig 2: Locating No. 1 Luggage Compartment Trim Hook Push Pins
      GTY303053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR FLOOR FINISH PLATE
    1. Disengage the 7 clips and remove the rear floor finish plate.

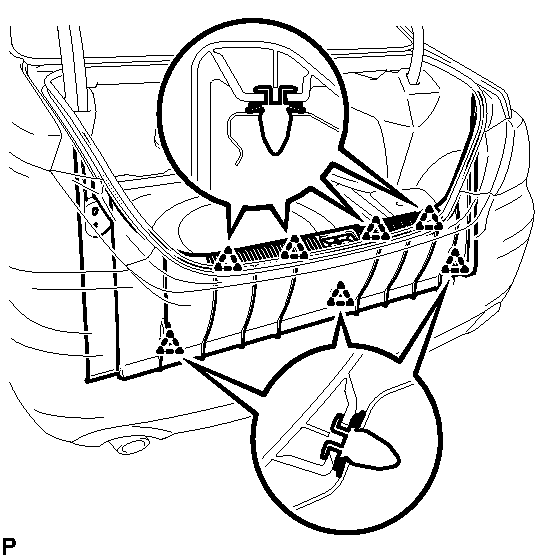

      Fig 3: Locating Rear Floor Finish Plate Clips
      GTY303051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER
    1. Using a clip remover, remove the 2 clips and luggage compartment inner trim cover.

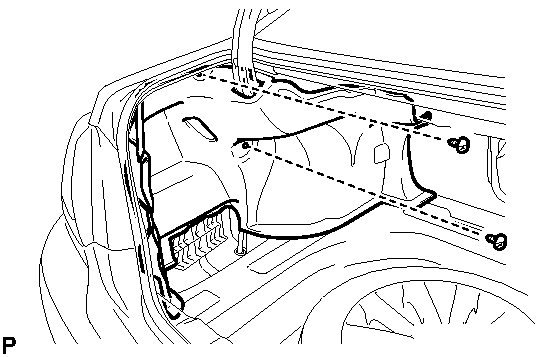

      Fig 4: Locating Luggage Compartment Inner Trim Cover Clips
      GTY303058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL

  9. REMOVE REAR COMBINATION LIGHT ASSEMBLY
    1. Disconnect the connector.

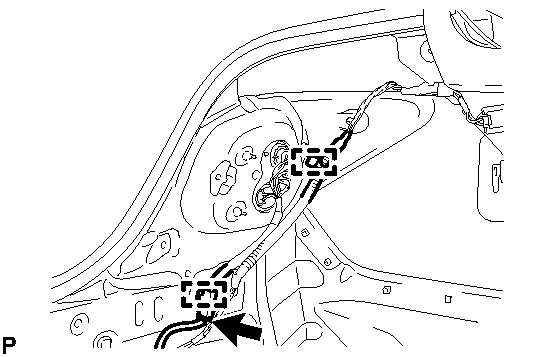

      Fig 5: Locating Rear Combination Light Assembly Clamps
      GTY303057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.
    3. Remove the 3 nuts.

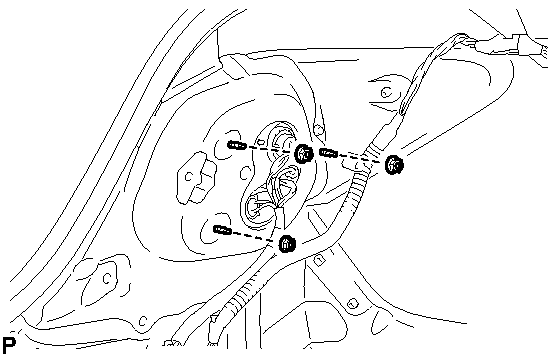

      Fig 6: Locating Rear Combination Light Assembly Nuts
      GTY307222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the guide and remove the rear combination light assembly.

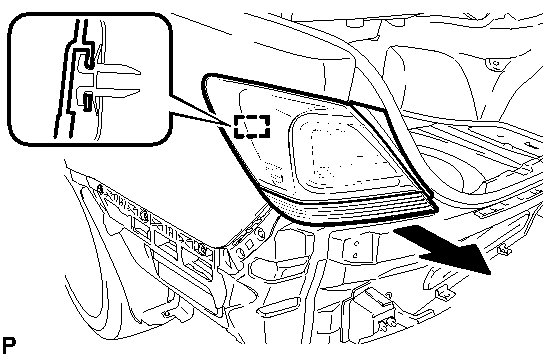

      Fig 7: Removing Rear Combination Light Assembly
      GTY303059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE LUGGAGE COMPARTMENT DOOR COVER  . Refer to REMOVAL - Step 1
  11. REMOVE REAR LIGHT ASSEMBLY
    1. Disconnect the connector.

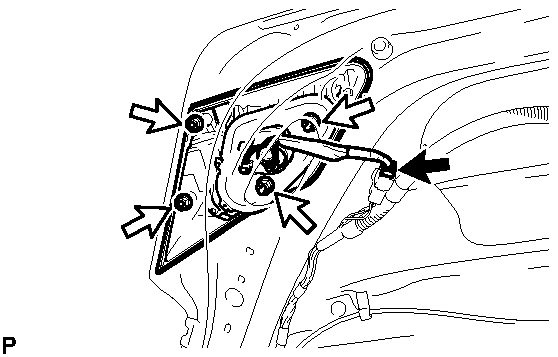

      Fig 8: Locating Rear Light Assembly Fasteners and Connector
      GTY303123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and rear light assembly.
