Side Turn Signal Light Assembly: Inspection: Inspection

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY
    1. Connect a positive (+) lead from the battery to terminal 1 and a negative (-) lead to terminal 2.

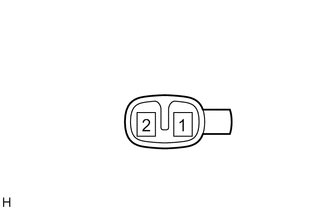

      Fig 1: View Of Side Turn Signal Light Assembly Connector Terminal Identification
      GTY302845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that the side turn signal light comes on.

      OK

      The light comes on.
