Stop Light Switch: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

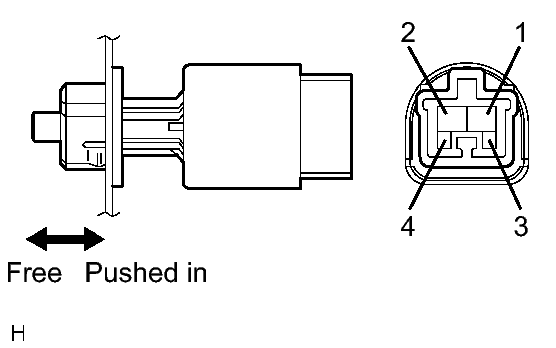

- INSPECT STOP LIGHT SWITCH ASSEMBLY
- Inspect the stop light switch assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard resistance
| Tester Connection |
Switch Condition |
Specified Condition |
| 1 - 2 |
Switch pin free |
Below 1 Ω |
| Switch pin pushed in |
10 kΩ or higher |
| 3 - 4 |
Switch pin free |
10 kΩ or higher |
| Switch pin pushed in |
Below 1 Ω |
