System Diagram

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

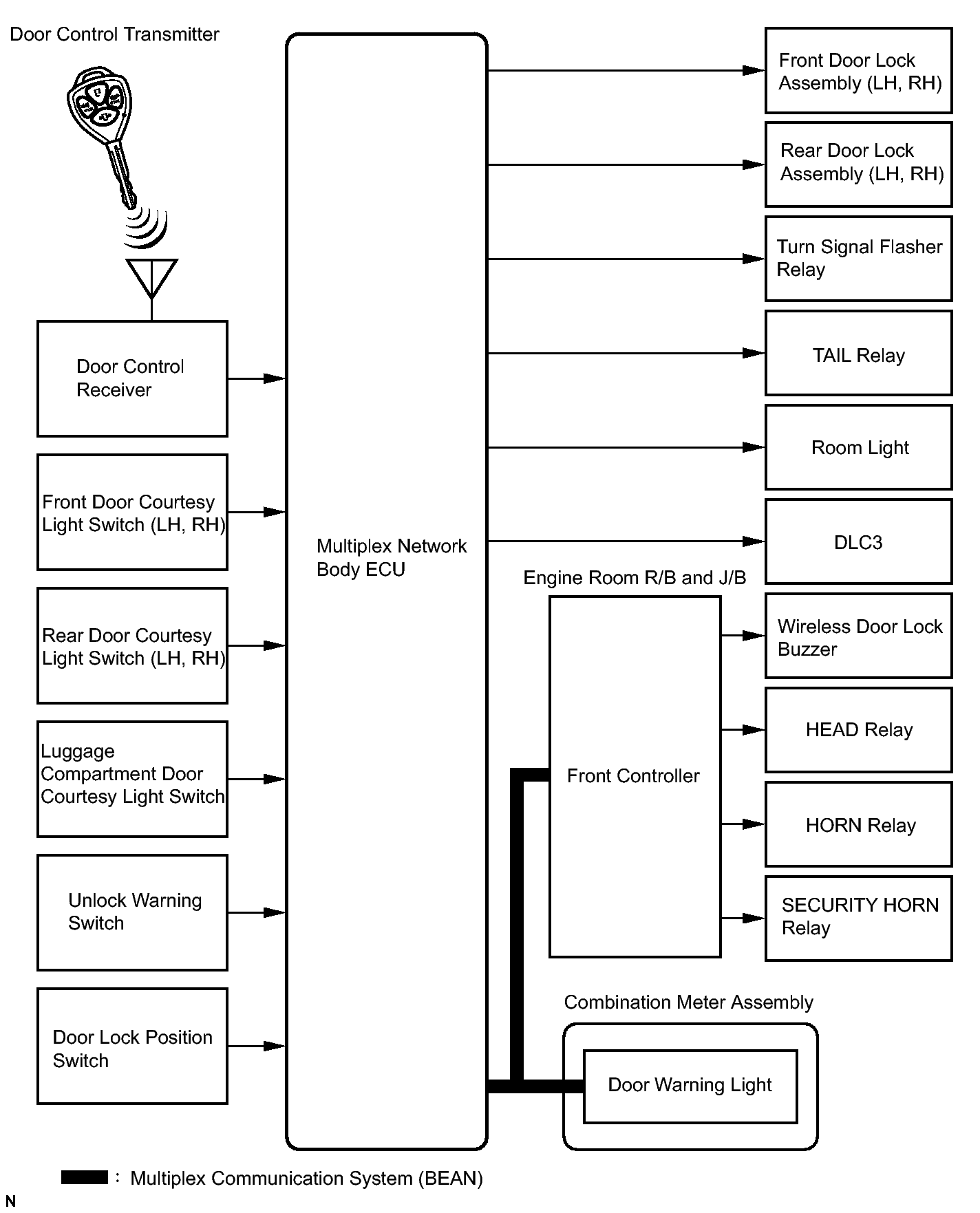

Fig 1: Identifying Wireless Door Lock Control System Diagram
GTY199914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
Multiplex network body ECU Front controller
  • Wireless door lock buzzer drive (answer back) signal
  • Headlight drive (panic alarm) signal
  • Horn drive (panic alarm) signal
  • Security horn drive (panic alarm) signal
 Multiplex communication system
Multiplex network body ECU Combination meter Door warning light ON signal Multiplex communication system
