CANISTER (for 2WD): Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL CHARCOAL CANISTER ASSEMBLY (for Double Wishbone Type Suspension)
1. Install the charcoal canister assembly with the 3 bolts.

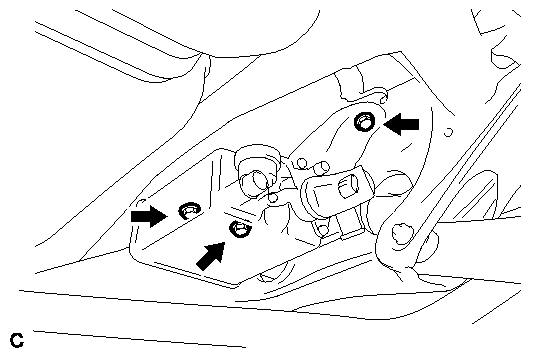

  Fig 1: Locating Charcoal Canister Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
2. Connect the purge line.

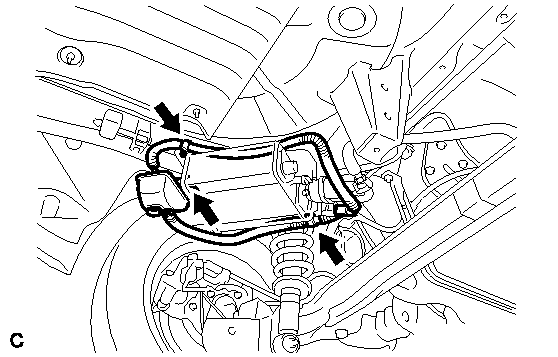

  Fig 2: Locating Purge Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the charcoal canister filter sub-assembly to the charcoal canister.
4. Connect the vapor pressure sensor connector.

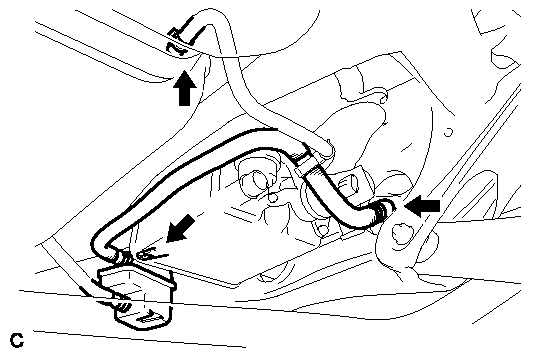

  Fig 3: Locating Vapor Pressure Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the fuel tank vent hose to the charcoal canister assembly.
INSTALL CHARCOAL CANISTER ASSEMBLY (for Torsion Beam Type Suspension)
1. Install the charcoal canister assembly with the 3 bolts.

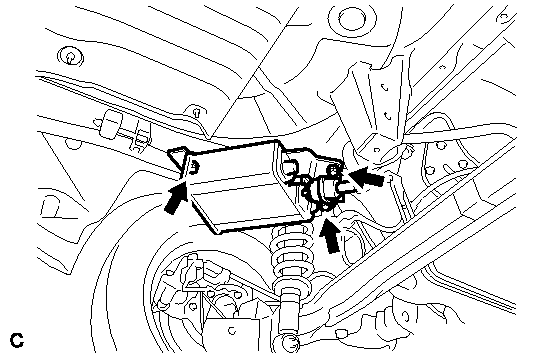

  Fig 4: Locating Charcoal Canister Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
2. Connect the the charcoal canister filter sub-assembly to the charcoal canister.

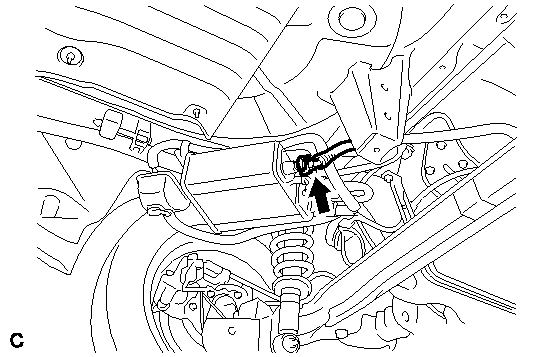

  Fig 5: Locating Charcoal Canister Filter Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the purge line hose.

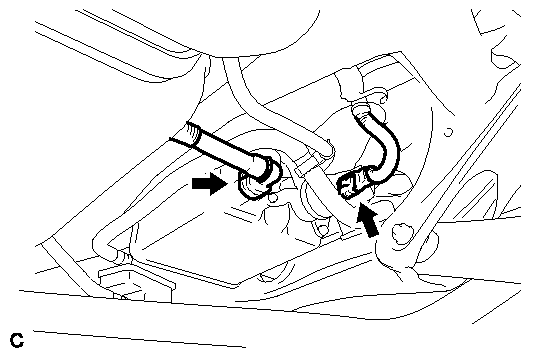

  Fig 6: Locating Purge Line Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the wire harness clamp.
5. Connect the vapor pressure sensor connector.
6. Connect the fuel tank vent hose to the charcoal canister.

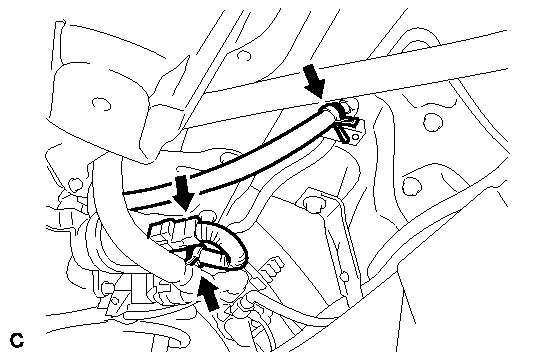

  Fig 7: Locating Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
