Wiper Switch: Components: Illustration

Fig 1: Identifying Wiper Switch Replacement Components With Torque Specifications (1 Of 4)
GTY222835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

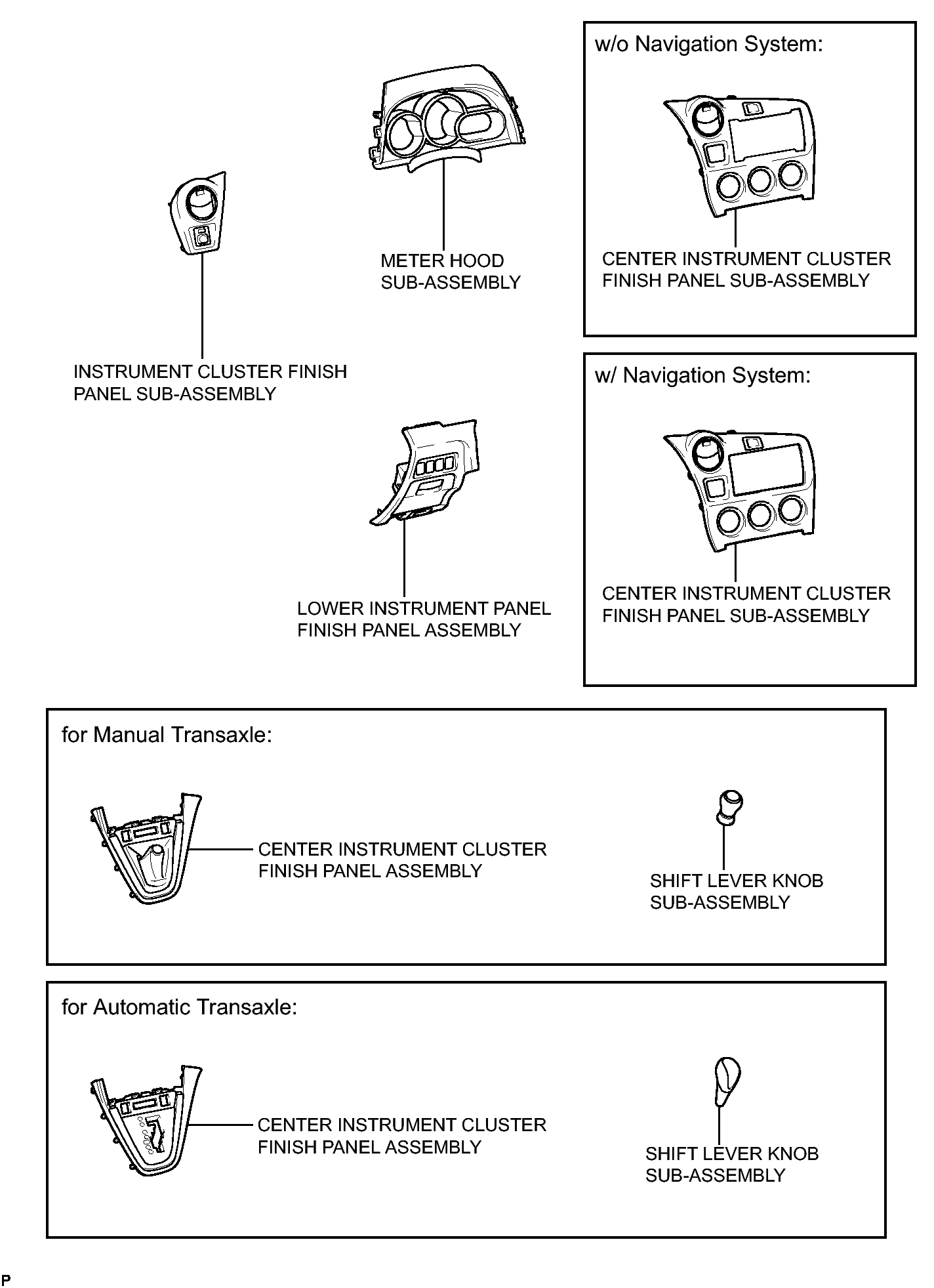

Fig 1: Identifying Wiper Switch Replacement Components (2 Of 4)
GTY233307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Wiper Switch Replacement Components (3 Of 4)
GTY220294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

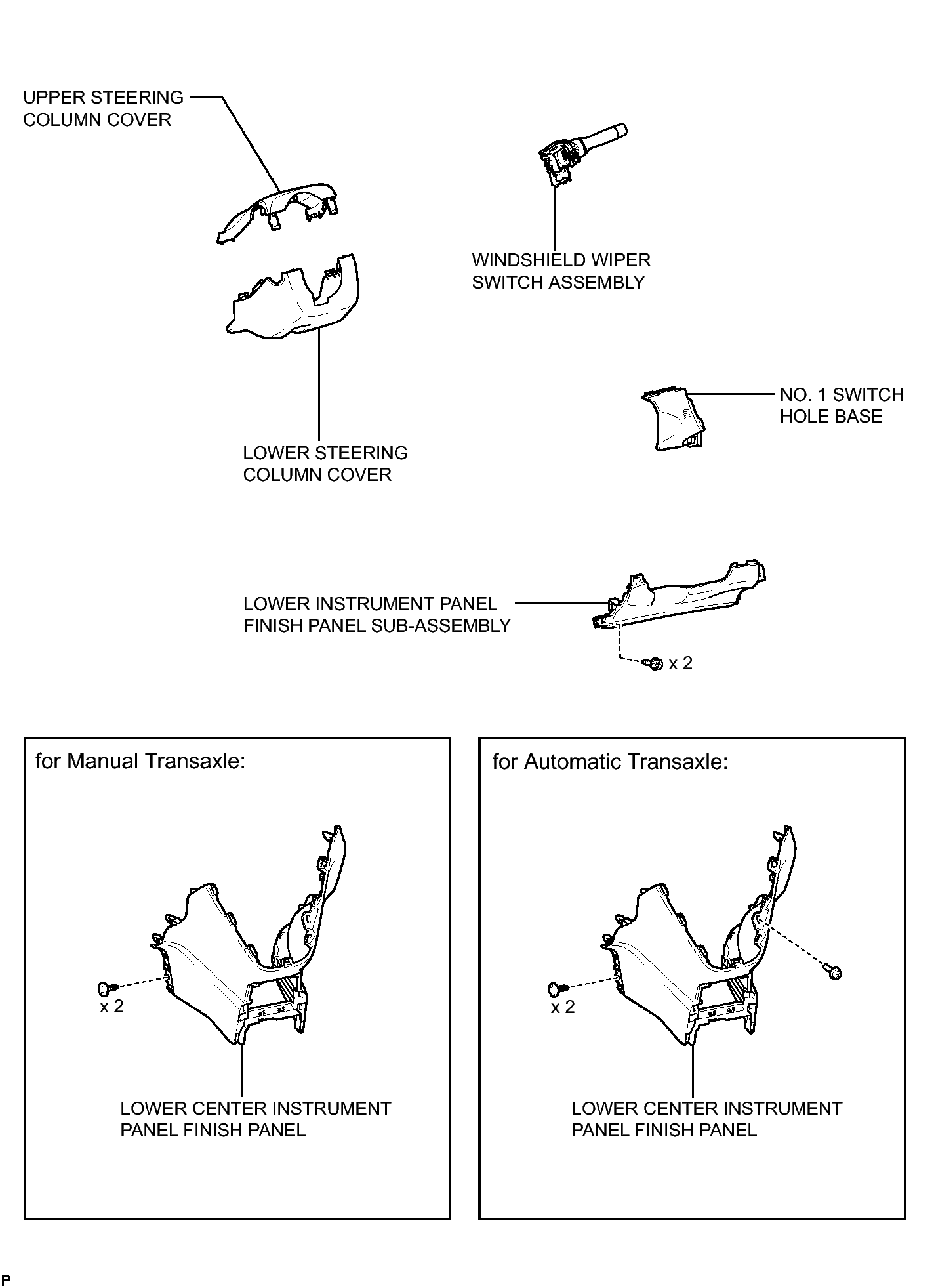

Fig 1: Identifying Wiper Switch Replacement Components (4 Of 4)
GTY247006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
