IGNITION SWITCH (w/o Smart Key System): Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

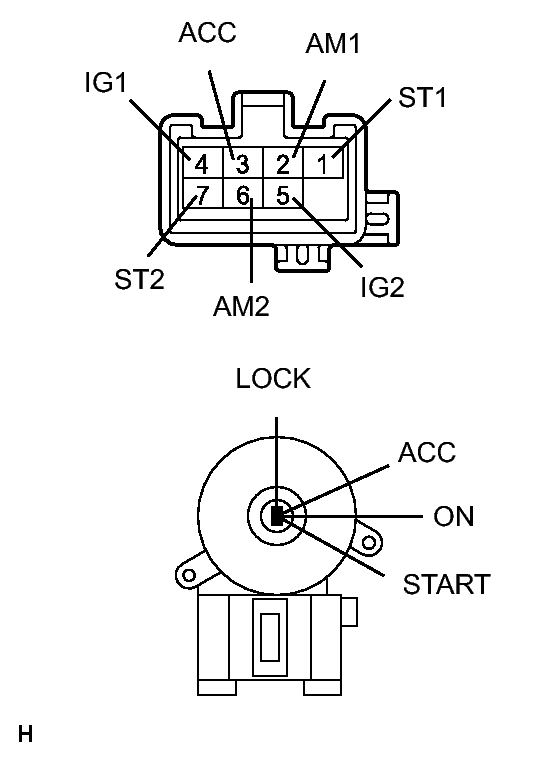

- INSPECT IGNITION OR STATER SWITCH ASSEMBLY
- Measure the switch resistance.
Resistance
Switch Condition Tester Connection Specified Condition LOCK - 10 kΩ or higher ACC 1 (ST1) - 3 (ACC) Below 1 Ω ON 1 (ST1) - 2 (AM1)
1 (ST1) - 3 (ACC)
5 (IG2) - 6 (AM2)Below 1 Ω START 1 (ST1) - 2 (AM1)
4 (IG1) - 5 (IG2)
5 (IG2) - 6 (AM2)Below 1 Ω If the result is not as specified, replace the ignition or starter switch assembly.
- Measure the switch resistance.
