DTC C1528: Motor Rotation Angle Sensor Malfunction: Wiring Diagram

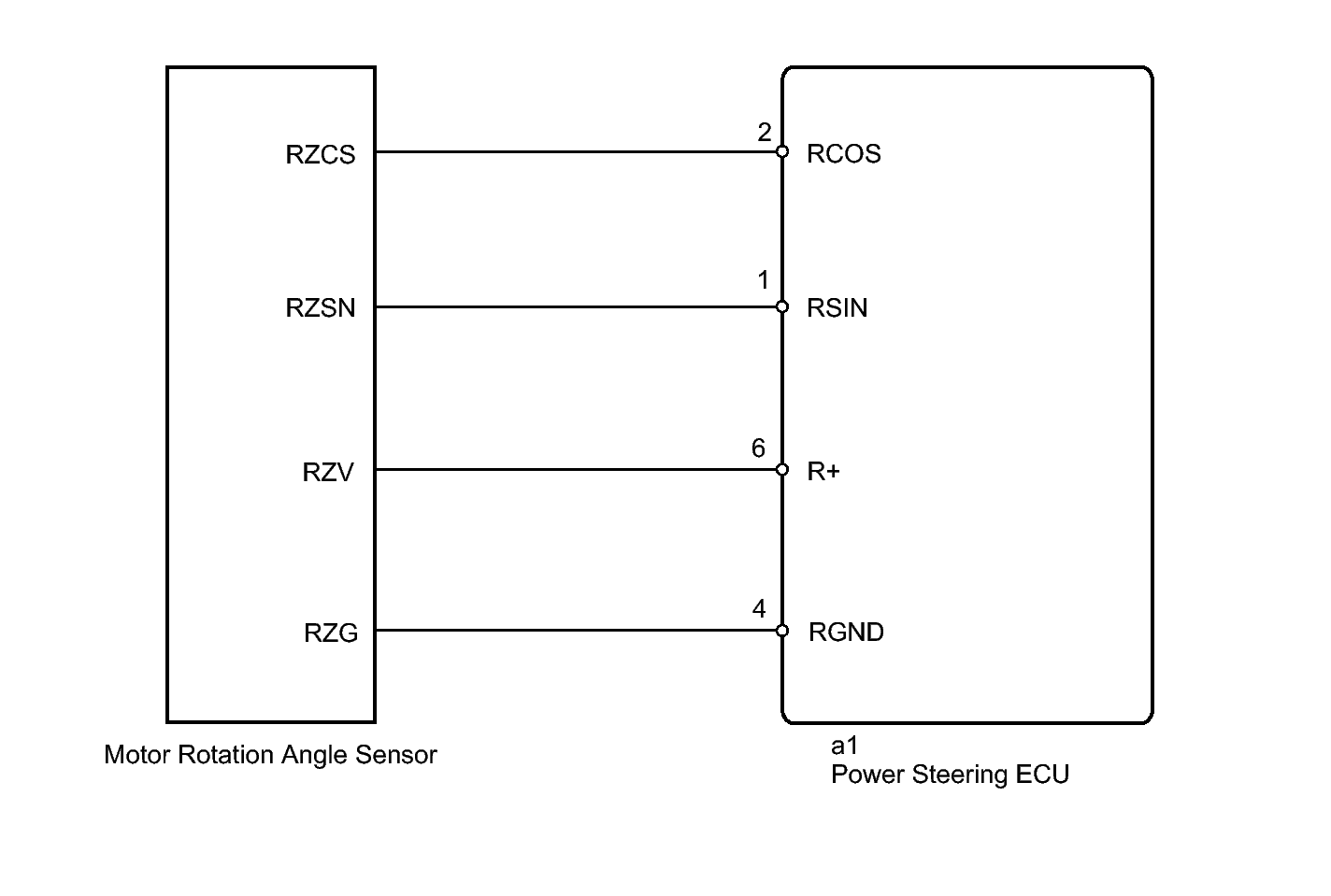

Fig 1: Motor Rotation Angle Sensor Malfunction - Wiring Diagram
GTY218003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
