System Diagram

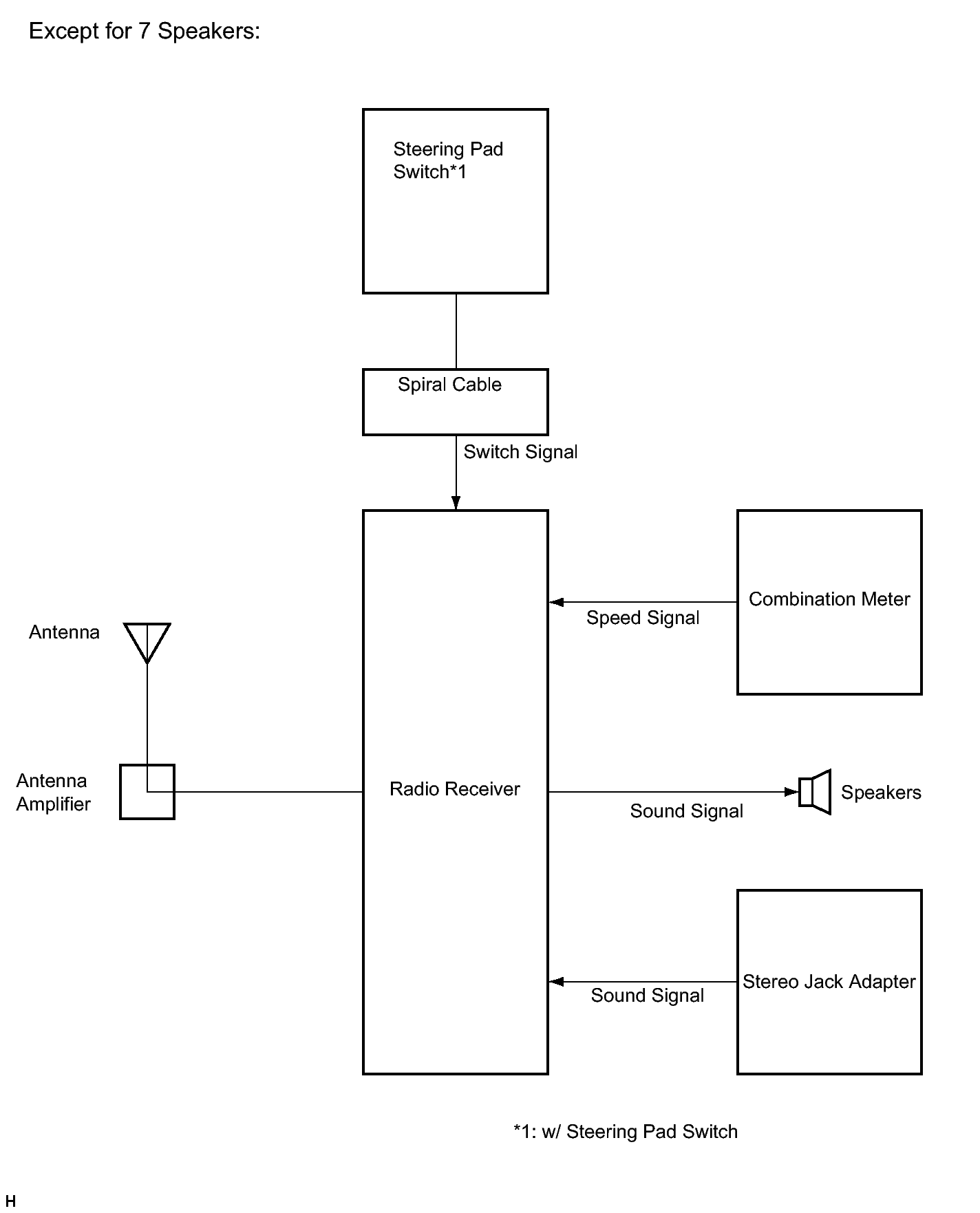

Fig 1: Audio And Visual System Diagram (1 Of 2)
GTY247352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

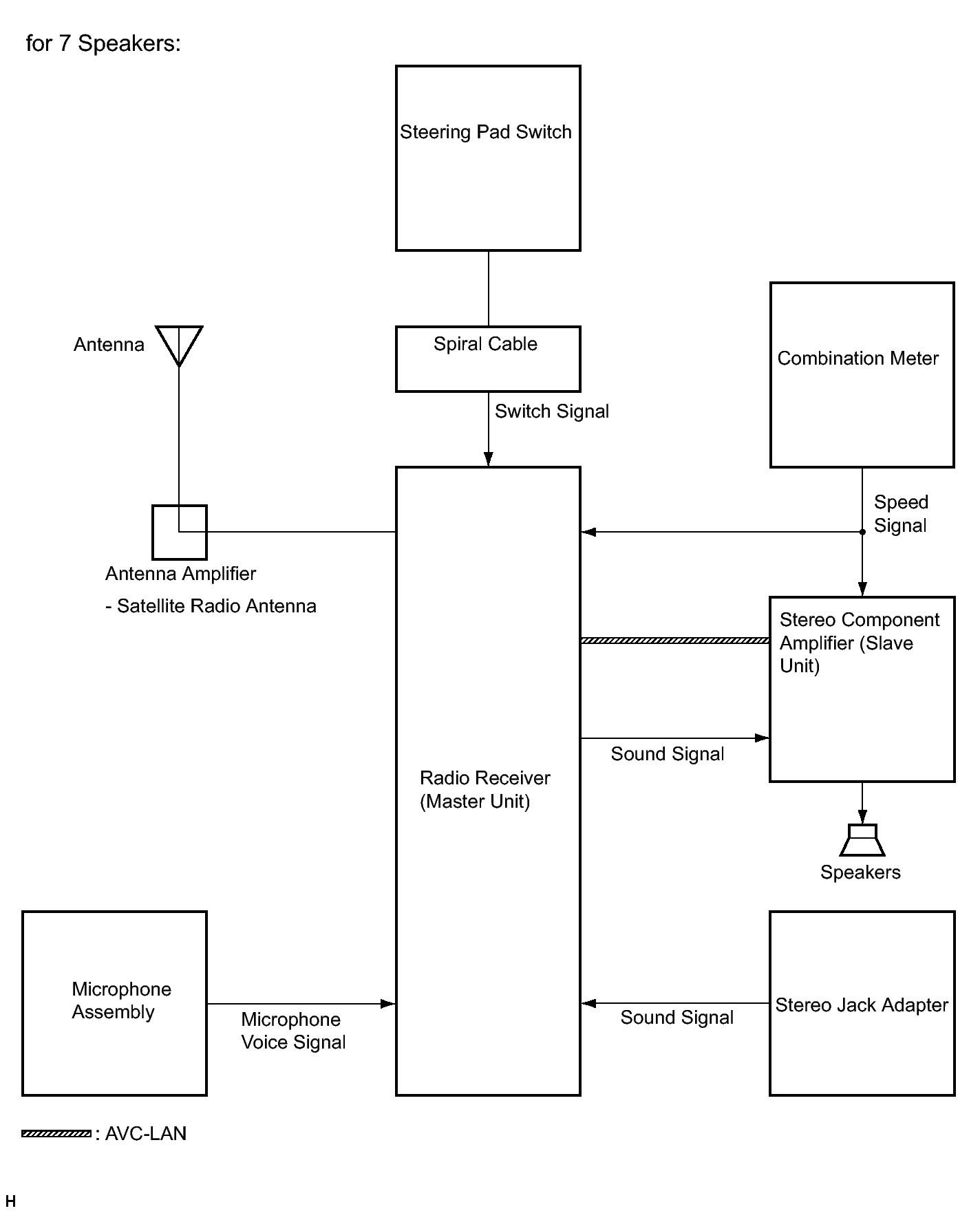

Fig 2: Audio And Visual System Diagram (2 Of 2)
GTY247353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
