Heated Oxygen Sensor: Removal: Removal

  1. REMOVE HEATED OXYGEN SENSOR
    1. Disconnect the heated oxygen sensor connector.
    2. Remove the grommet and pull the sensor connector out of the cabin through the floor panel.
    3. Remove the wire harness clamp bracket and disconnect the wire harness clamp.

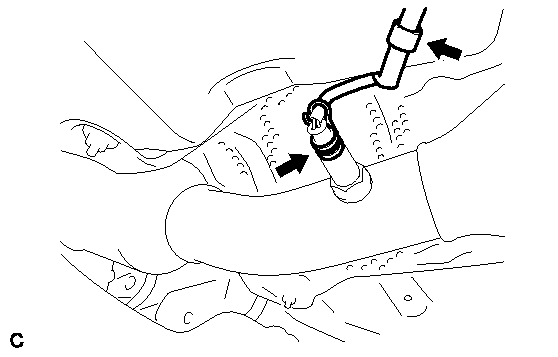

      Fig 1: Identifying Heated Oxygen Sensor And SST
      GTY187571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010

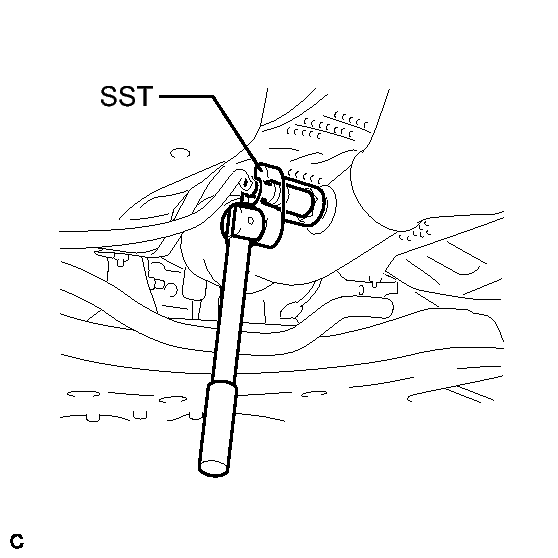

      Fig 2: View Of Heated Oxygen Sensor And SST
      GTY171810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
