Front Console Box: Components: Illustration

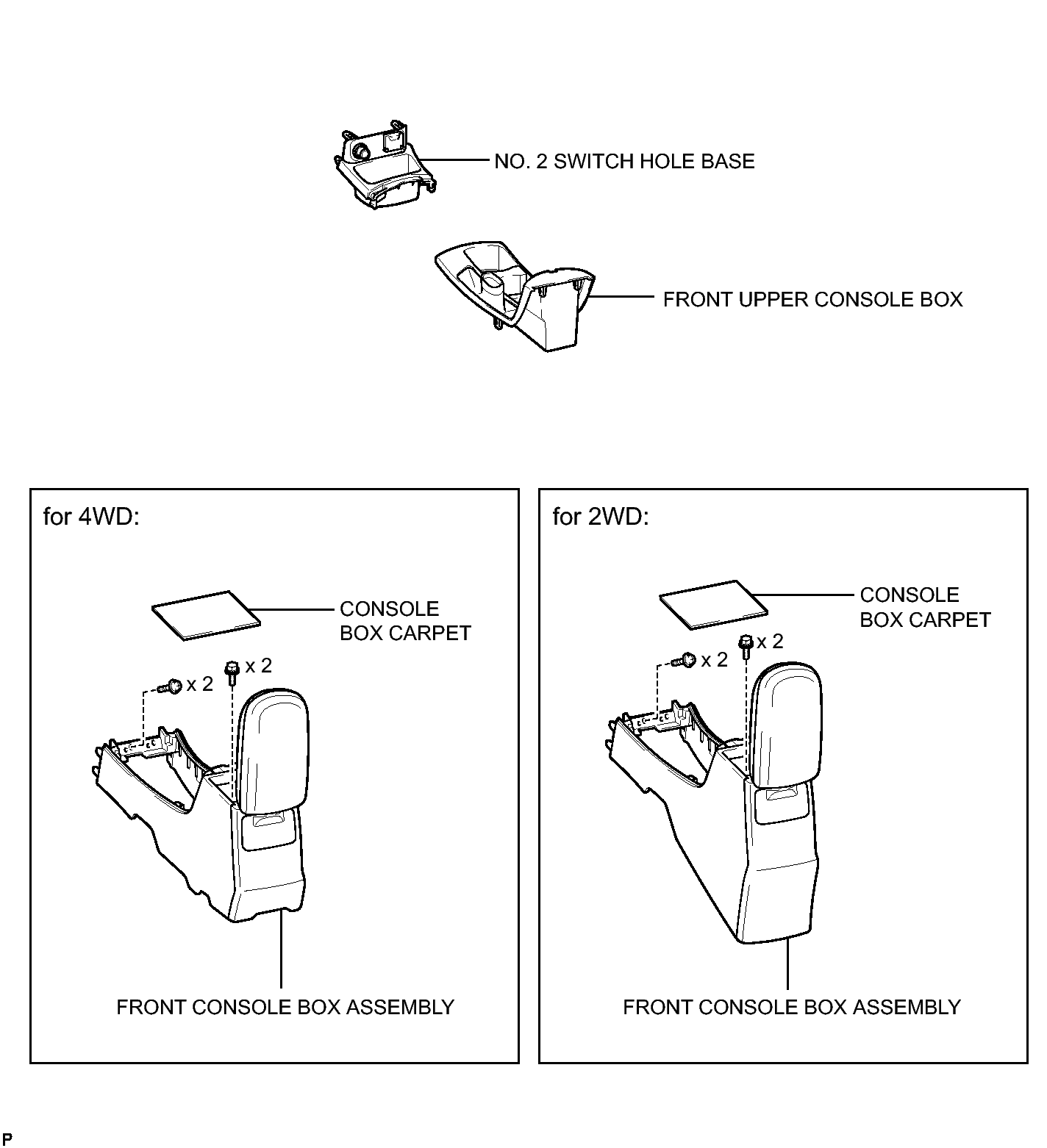

Fig 1: Identifying Front Console Box Replacement Components (1 Of 3)
GTY242331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

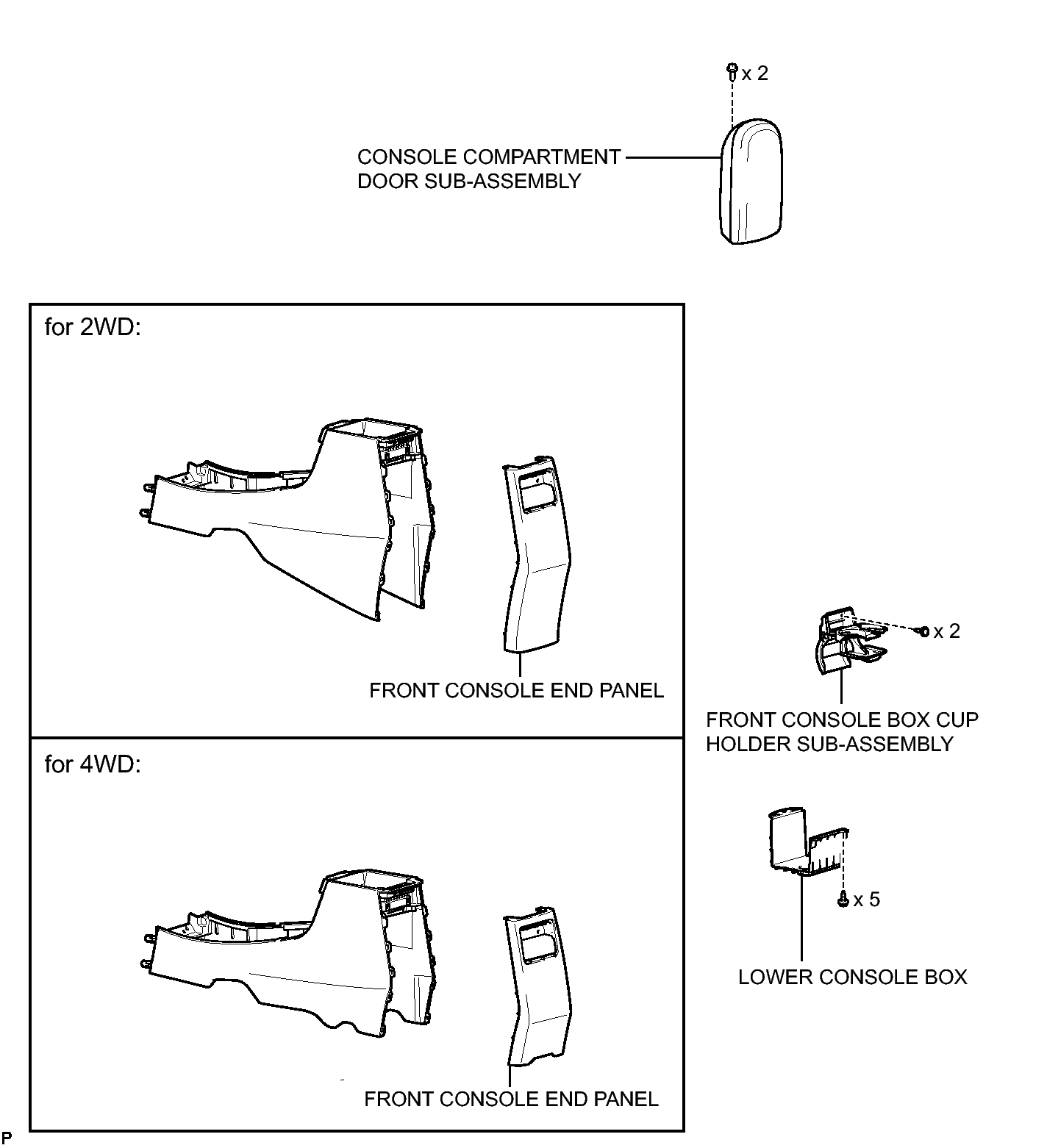

Fig 1: Identifying Front Console Box Replacement Components (2 Of 3)
GTY242283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

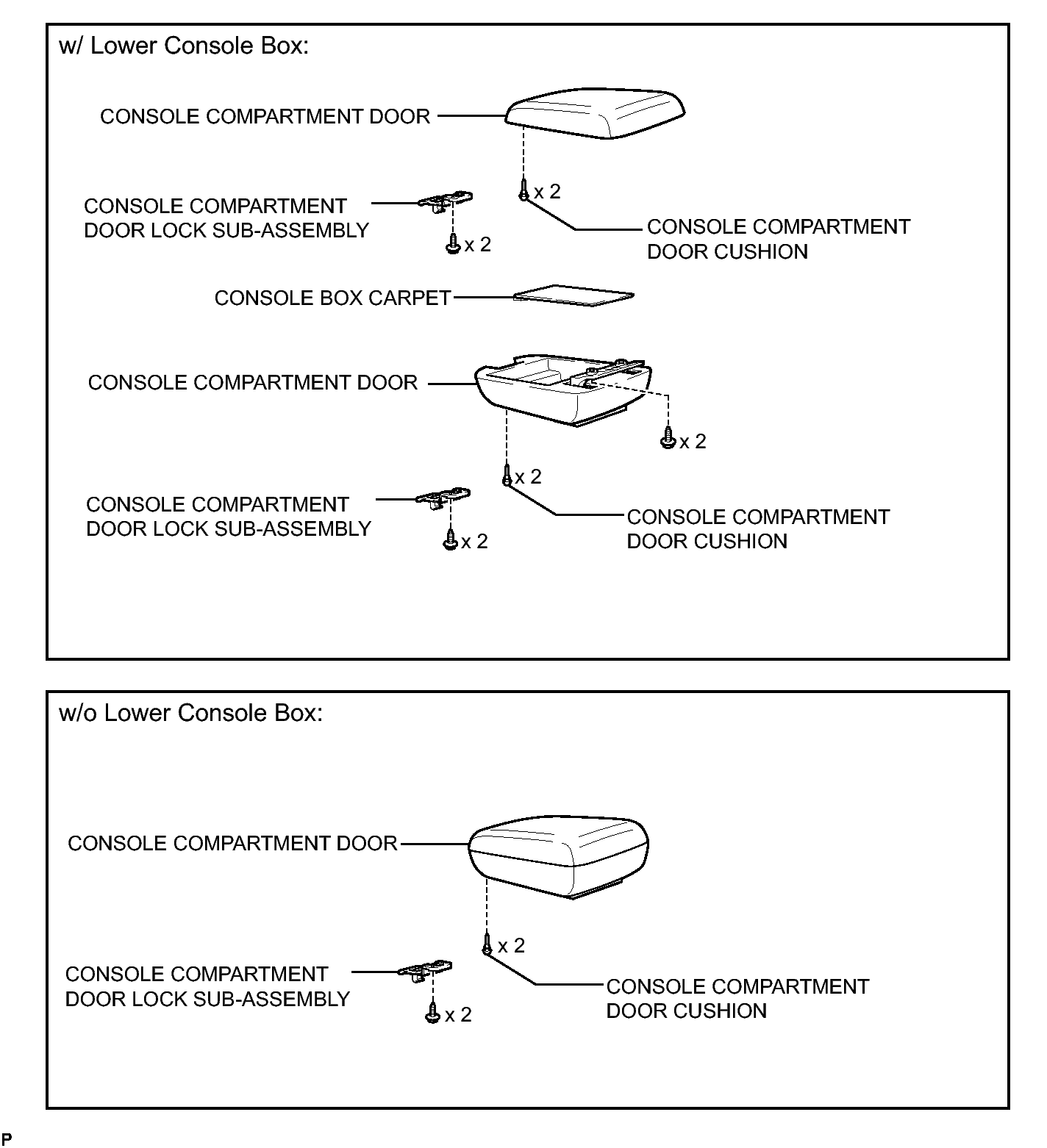

Fig 1: Identifying Front Console Box Replacement Components (3 Of 3)
GTY223843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
