ABS (w/o VSC): Notes — 2010 Toyota Matrix Base, Standard Service Manual ~ LEMON Manuals

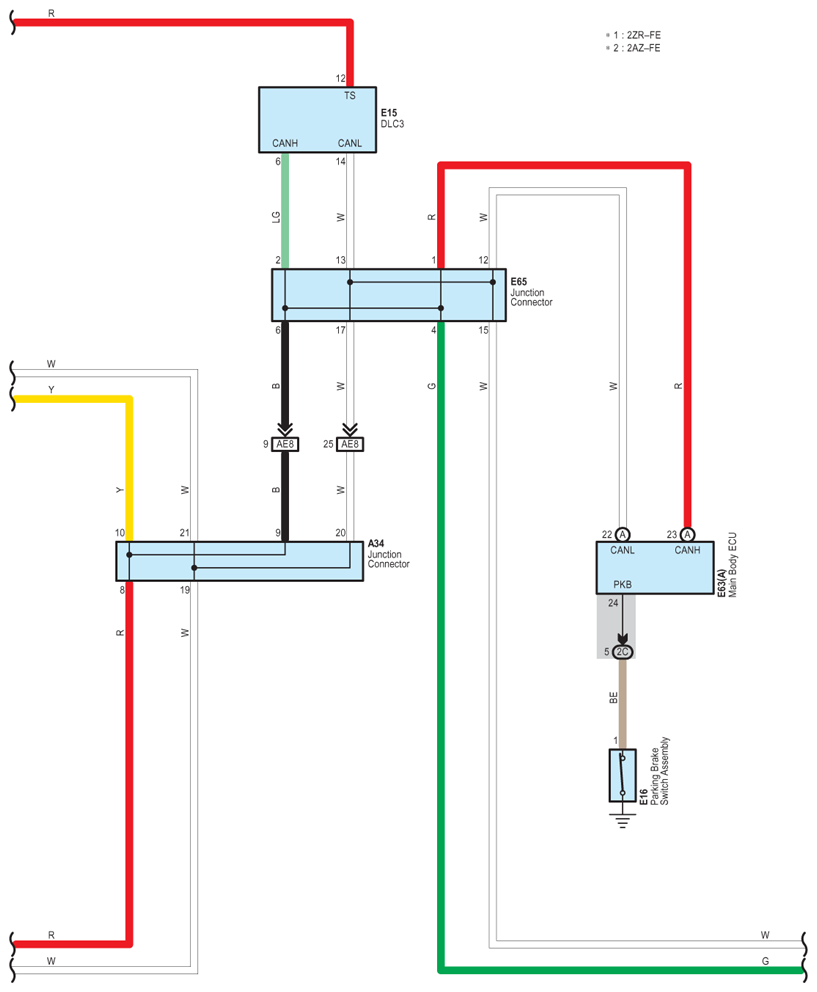

Fig 1: ABS (W/O VSC) - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

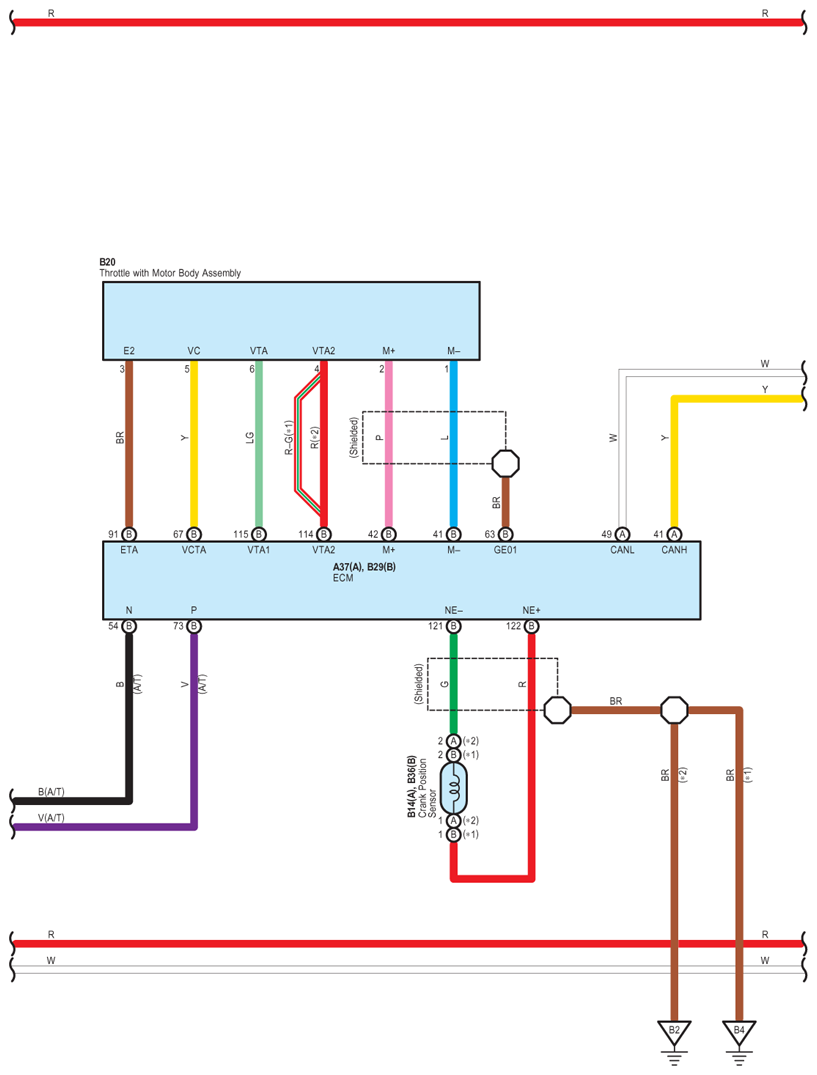

Fig 2: ABS (W/O VSC) - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

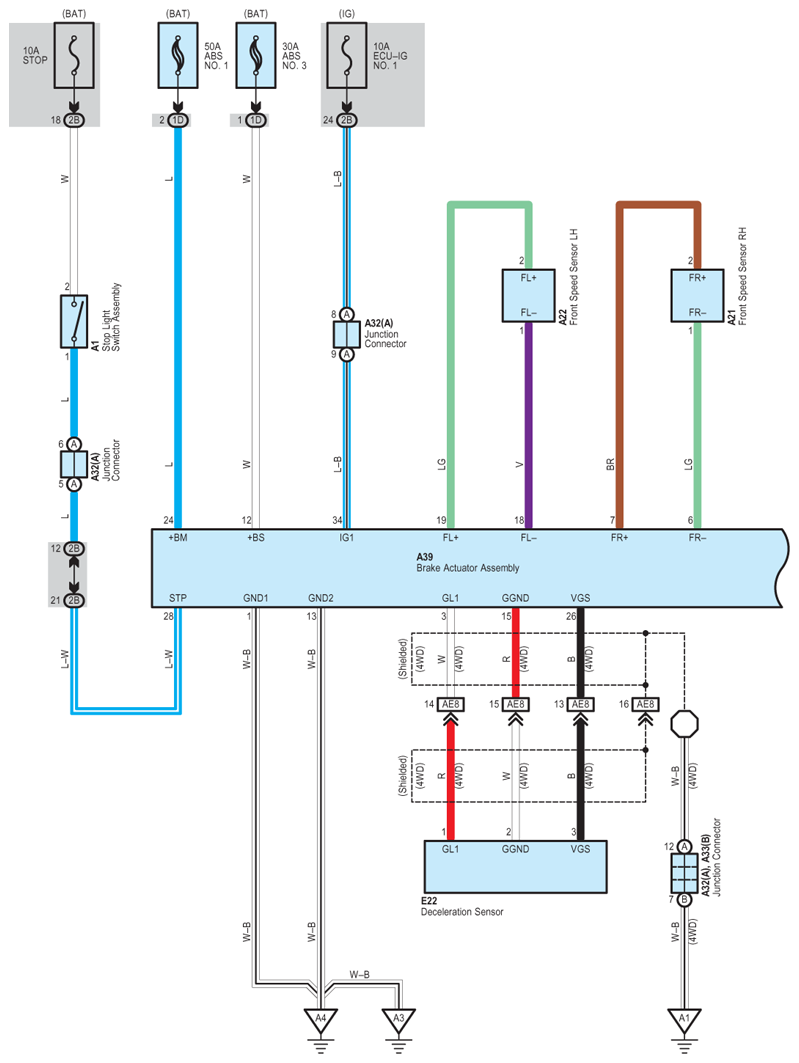

Fig 3: ABS (W/O VSC) - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

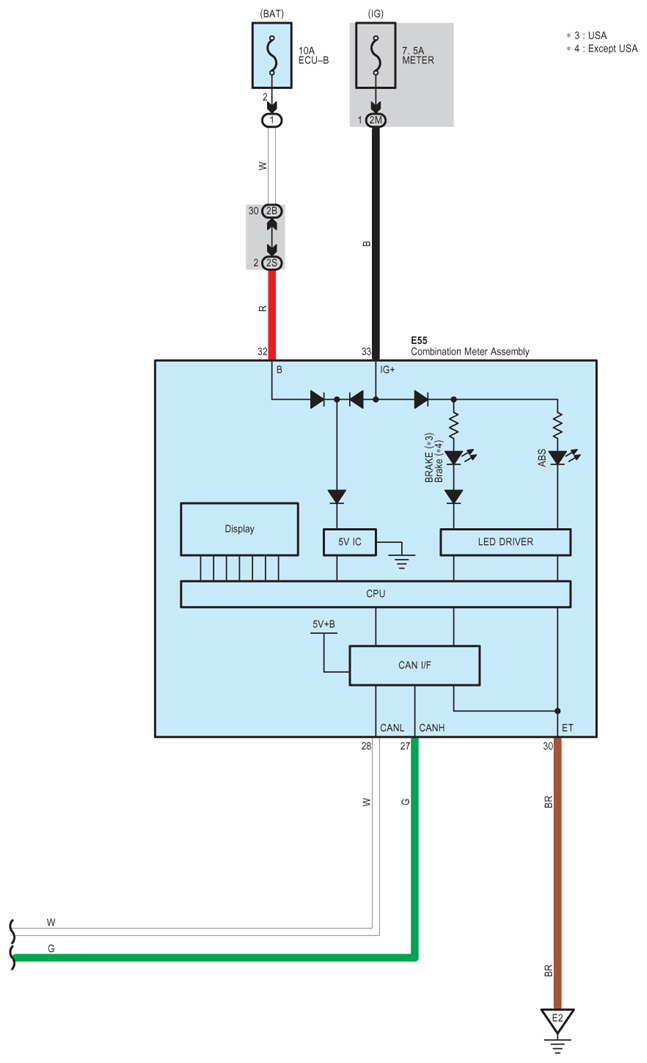

Fig 4: ABS (W/O VSC) - Circuit Diagram (4 Of 5)

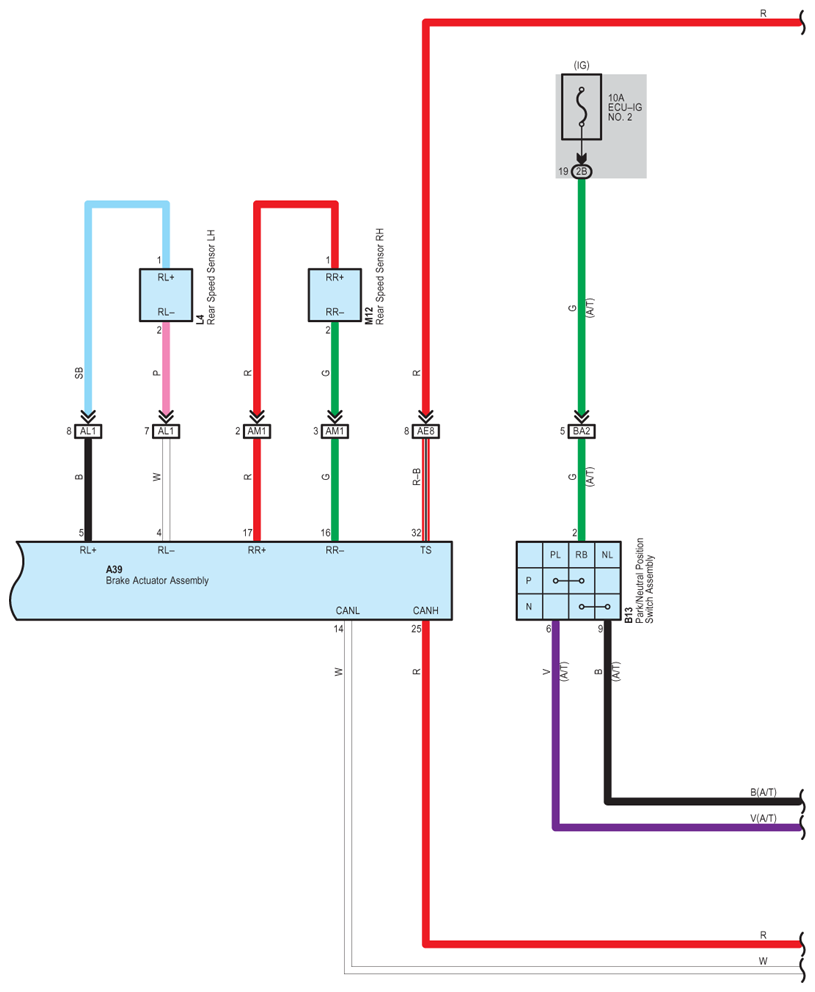

Fig 5: ABS (W/O VSC) - Circuit Diagram (5 Of 5)
