Fuel Pump: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

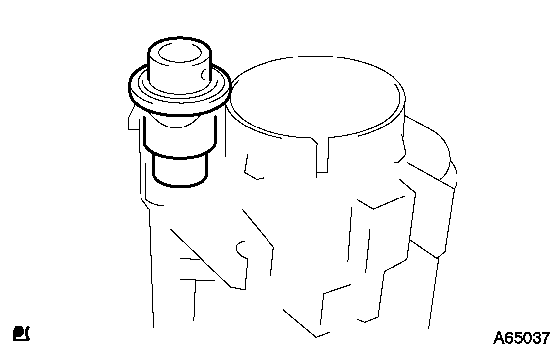

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
1. Apply a light coat of spindle oil or gasoline to a new O-ring, and install it to the fuel pressure regulator.

  Fig 1: Identifying Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push in the fuel pressure regulator to the fuel tank fuel filter.

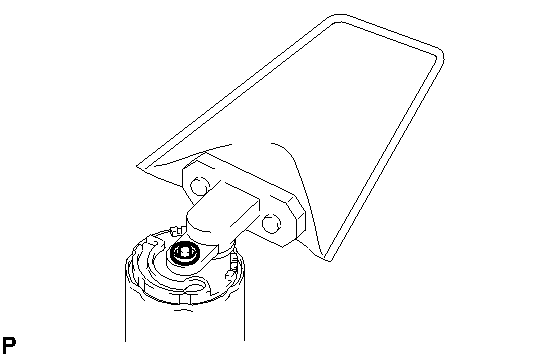

INSTALL FUEL PUMP FILTER
1. Install the fuel pump filter with a new clip.

  Fig 2: Identifying Fuel Pump, Filter And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP

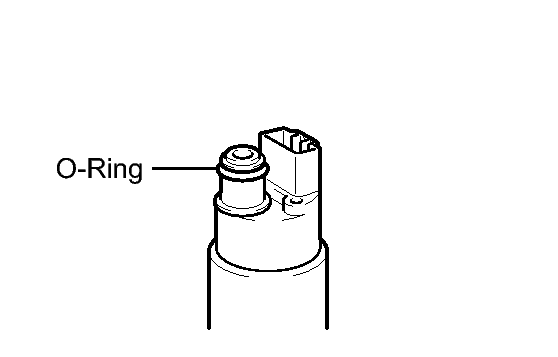

1. Apply a light coat of gasoline or grease to the O-ring of the fuel pump.

  Fig 3: Identifying Fuel Pump O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

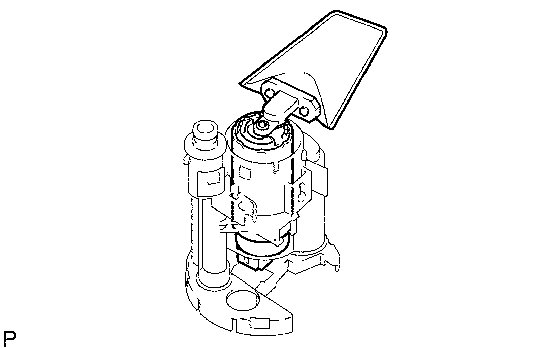

2. Push in the fuel pump to the fuel tank fuel filter.

  Fig 4: Identifying Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

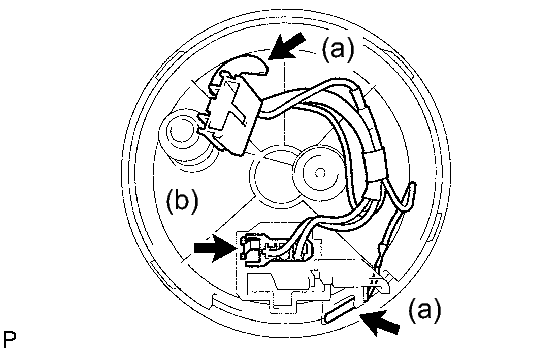

INSTALL FUEL PUMP HARNESS
1. Install the fuel pump harness.

  Fig 5: Identifying Fuel Pump Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.

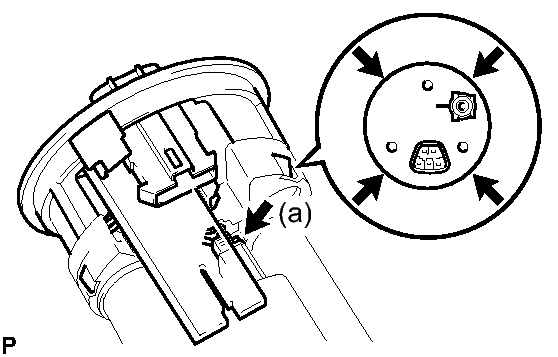

INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY
1. Install the fuel suction plate.

  Fig 6: Installing Fuel Suction Plate Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel pump connector.

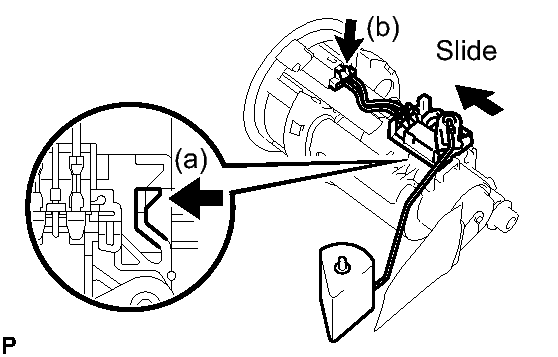

INSTALL FUEL SENDER GAUGE ASSEMBLY
1. Slide the fuel sender gauge to engage with the claw.

  Fig 7: Connecting Fuel Sender Gauge Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel sender gauge connector.

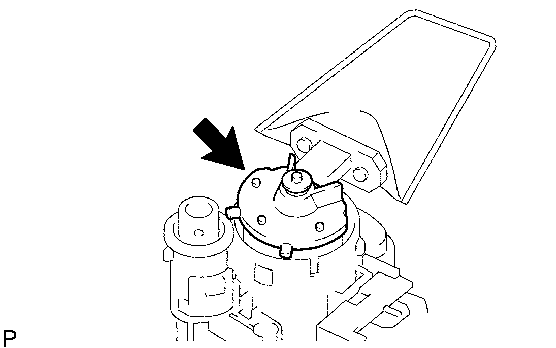

INSTALL FUEL PUMP CUSHION RUBBER
1. Install the fuel pump cushion rubber to the fuel pump.

  Fig 8: Locating Fuel Pump Cushion Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

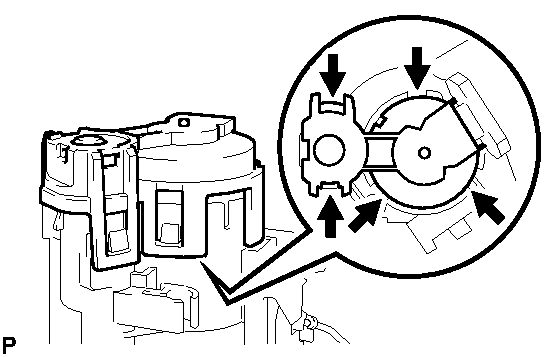

INSTALL FUEL SUCTION SUPPORT NO. 2
1. Install the fuel suction support No. 2.

  Fig 9: Locating Fuel Suction Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
