Height Control Sensor: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH
1. Disconnect the connector.

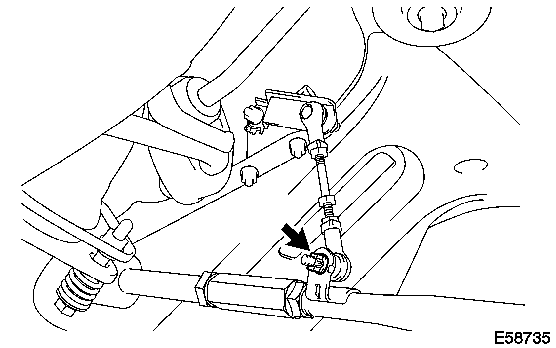

  Fig 1: Locating Height Control Sensor Rear Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Place matchmarks with the one on the height control sensor sub-assembly rear RH and bracket.
3. Remove a nut.
4. Remove the 2 nuts and height control sensor sub-assembly rear RH.

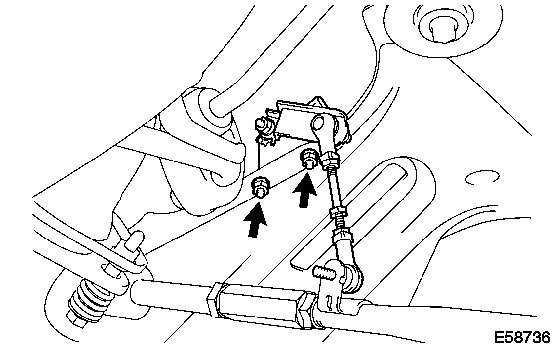

  Fig 2: Locating Height Control Sensor Rear RH Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
