Intake Manifold: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. REMOVE FRONT WIPER ARM HEAD CAP  . Refer to REMOVAL - Step 1
  4. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to REMOVAL - Step 2
  5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to REMOVAL - Step 3
  6. REMOVE HOOD TO COWL TOP SEAL  . Refer to REMOVAL - Step 4
  7. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 5
  8. REMOVE COWL TOP VENTILATOR LOUVER LH  . Refer to REMOVAL - Step 6
  9. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  . Refer to REMOVAL - Step 7
  10. REMOVE OUTER COWL TOP PANEL  . Refer to REMOVAL - Step 8
  11. REMOVE SUSPENSION TOWER DAMPER ASSEMBLY (w/ Front Strut Bar)  . Refer to REMOVAL - Step 9
  12. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  13. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 1
  14. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  . Refer to REMOVAL - Step 3
  15. REMOVE THROTTLE BODY ASSEMBLY  . Refer to REMOVAL - Step 4
  16. DISCONNECT FUEL MAIN TUBE  . Refer to REMOVAL - Step 5
  17. DISCONNECT NO. 2 VENTILATION HOSE  . Refer to REMOVAL - Step 2
  18. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY  . Refer to REMOVAL - Step 7
  19. REMOVE INTAKE MANIFOLD
    1. Disconnect the union to connector tube hose from the No. 2 hose to hose tube.

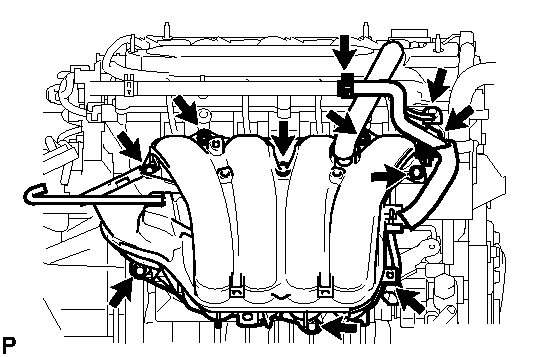

      Fig 1: Locating Bolts, Nuts And Intake Manifold
      GTY185300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the camshaft timing oil control valve connector.
    3. Remove the wire harness clamp.
    4. Remove the union to connector tube hose from the vacuum hose clamp.
    5. Remove the 5 bolts, 2 nuts and intake manifold.
    6. Remove the gasket from the intake manifold.
      Fig 2: Locating Intake Manifold Gasket
      GTY161847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
