Main Body ECU Communication Stop Mode: Procedure

1. Turn the ignition switch off.

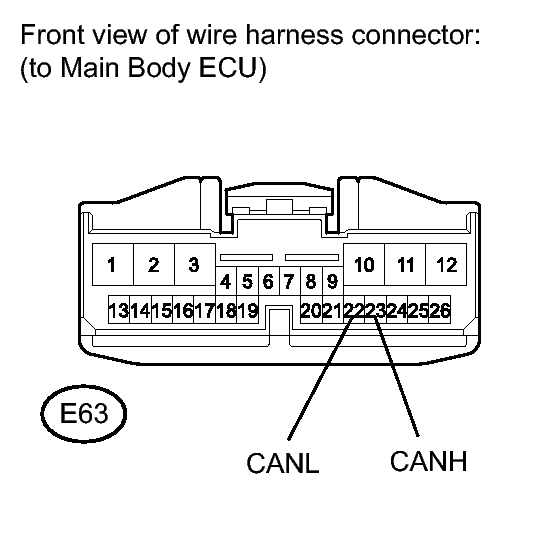

   Fig 1: Identifying Terminal CANL And CANH Of Main Body ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the main body ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   E63-23 (CANH) - E63-22 (CANL)	Ignition switch off	54 to 69 Ω

NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (MAIN BODY ECU BRANCH WIRE)

OK: Go to next step

1. Disconnect the instrument panel junction block connectors.

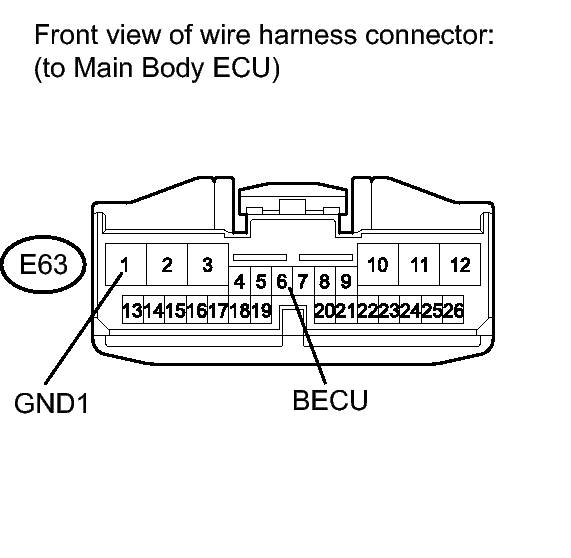

   Fig 2: Identifying Terminal BECU And GND1 Of Main Body ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E63-1 (GND1) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   E63-6 (BECU) - Body ground	Always	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)
