Yaw Rate Sensor Communication Stop Mode: Wiring Diagram

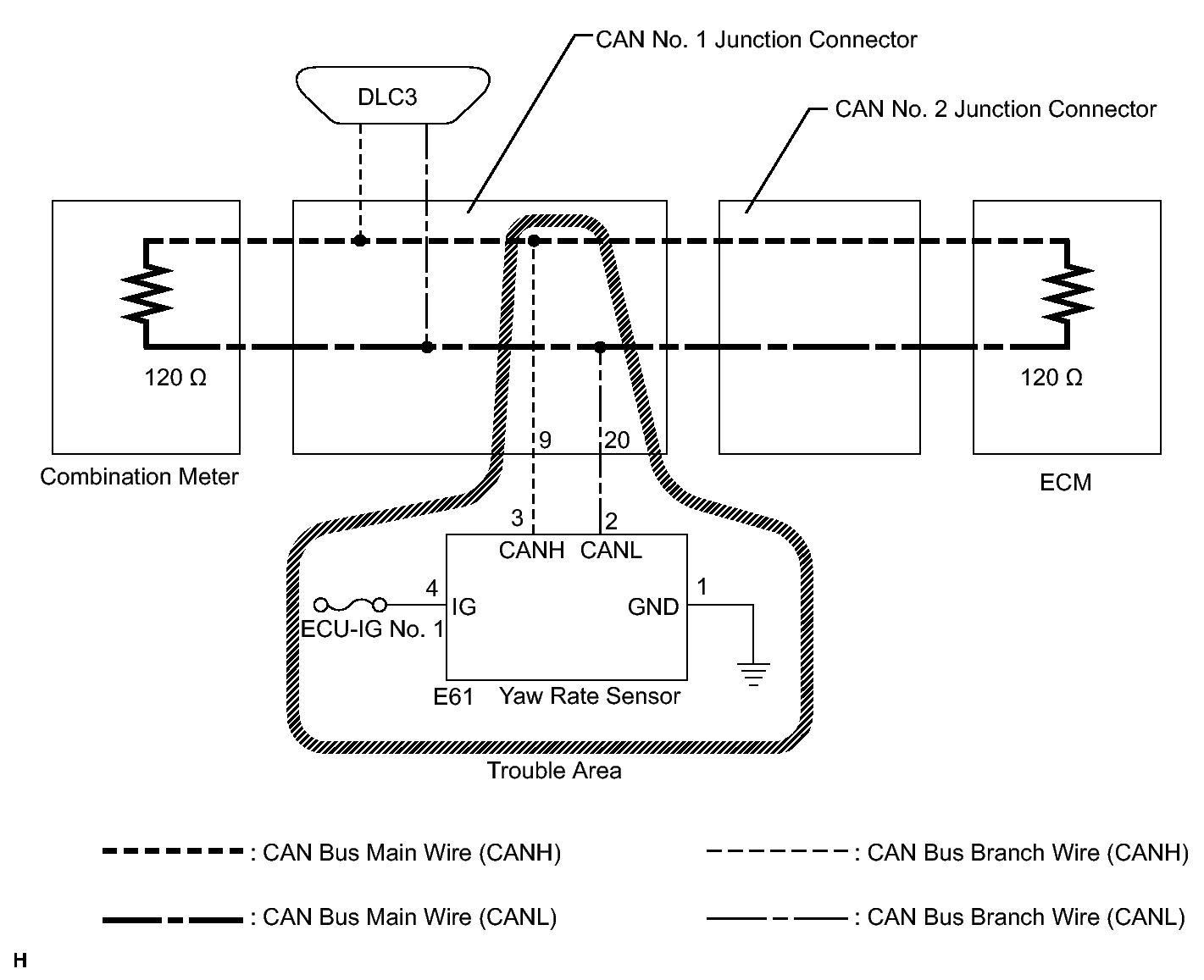

Fig 1: Yaw Rate Sensor Communication -- Wiring Diagram
GTY243327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
