Power Window Control System (Diagnostics - Introduction)
>>
Power Window Control System
>>
Symptom Tests
>>
Key-off Operation Function Operates even if Operating Conditions are not Satisfied
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

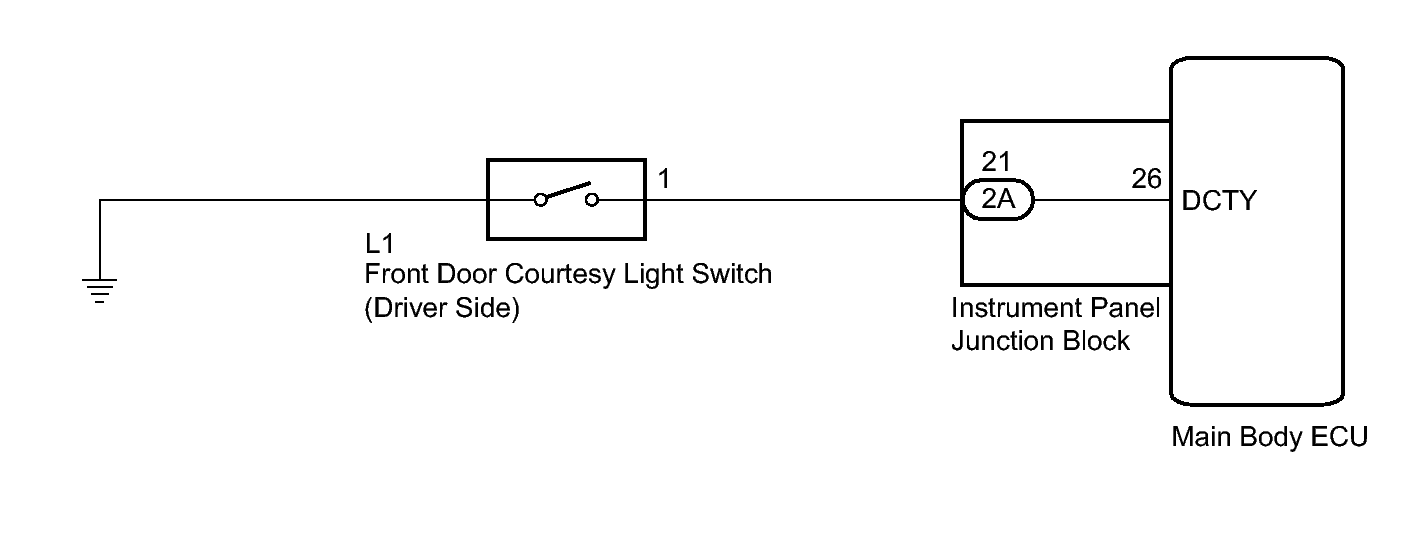

Fig 1: Front Door Courtesy Light Switch (Door Side) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
