Heated Oxygen Sensor: Removal: Removal

  1. REMOVE HEATED OXYGEN SENSOR (for 4WD)
    1. Disconnect the heated oxygen sensor connector.
    2. Separate the wire harness grommet.

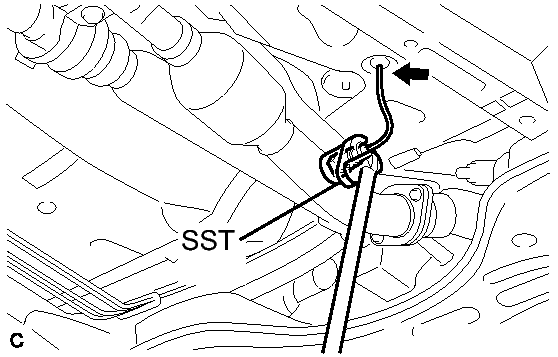

      Fig 1: Locating Heated Oxygen Sensor
      GTY231844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010
  2. REMOVE HEATED OXYGEN SENSOR (for 2WD)
    1. Disconnect the heated oxygen sensor connector.
      Fig 2: Locating Heated Oxygen Sensor Connector
      GTY194577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010

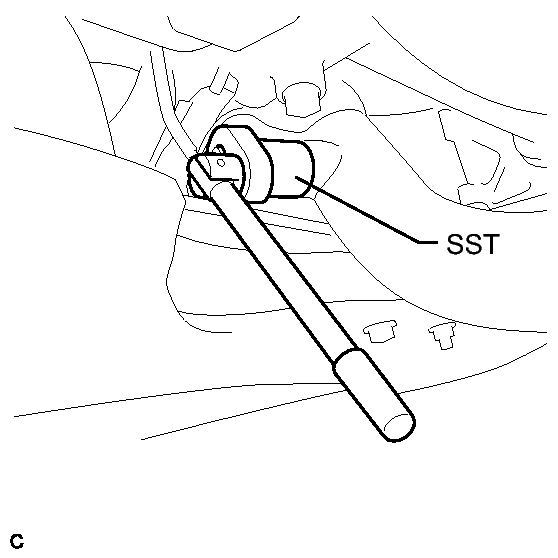

      Fig 3: Removing Heated Oxygen Sensor Using SST
      GTY179645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
