Fuel Pump Control Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump/Speed.
5. Check whether the fuel pump operating sound occurs when performing the Active Test using the Techstream.

   Result

   Result	Proceed to
   Fuel pump operating sound does not occur	A
   Fuel pump operating sound occurs	B

B → See step   8

A: Go to next step

1. Measure the voltage between the terminal of the driver side junction block and the body ground when the ignition switch is turned to ON and OFF.

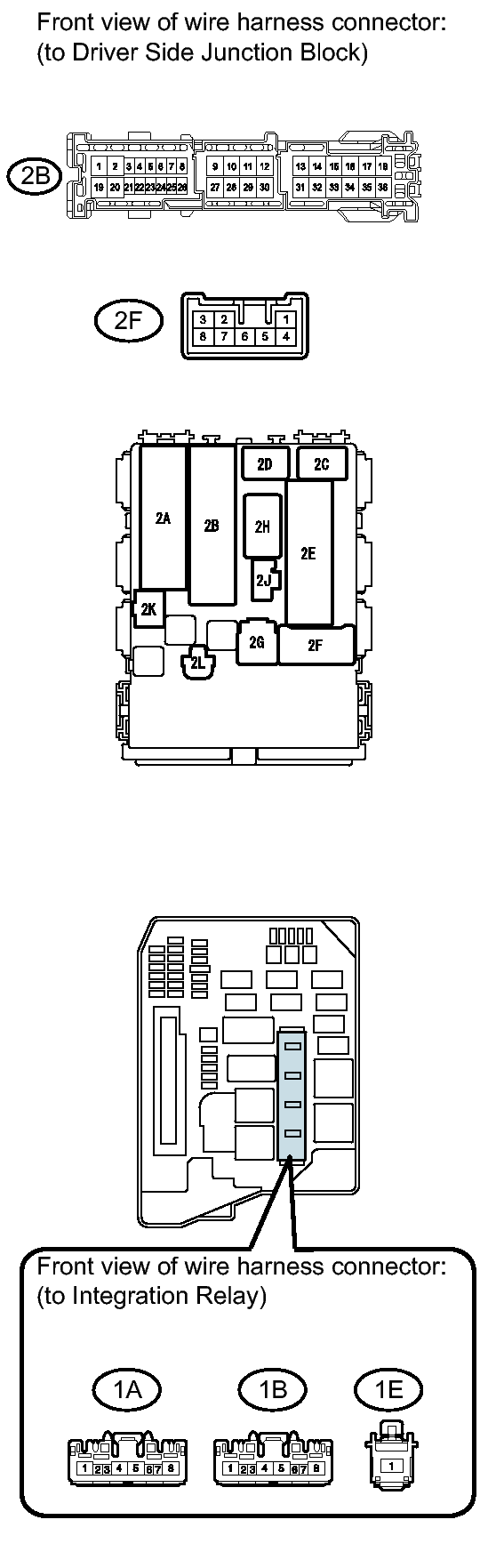

   Fig 1: Inspecting Driver Side Junction Block

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   2B-11 - Body ground	Ignition switch OFF	Below 1 V
   2F-4 - Body ground
   2B-11 - Body ground	Ignition switch ON	11 to 14 V
   2F-4 - Body ground

   Result

   Result	Proceed to
   Outside standard range	A
   Within standard range	B

B → See step   4

A: Go to next step

1. Remove the integration relay from the engine room relay block.

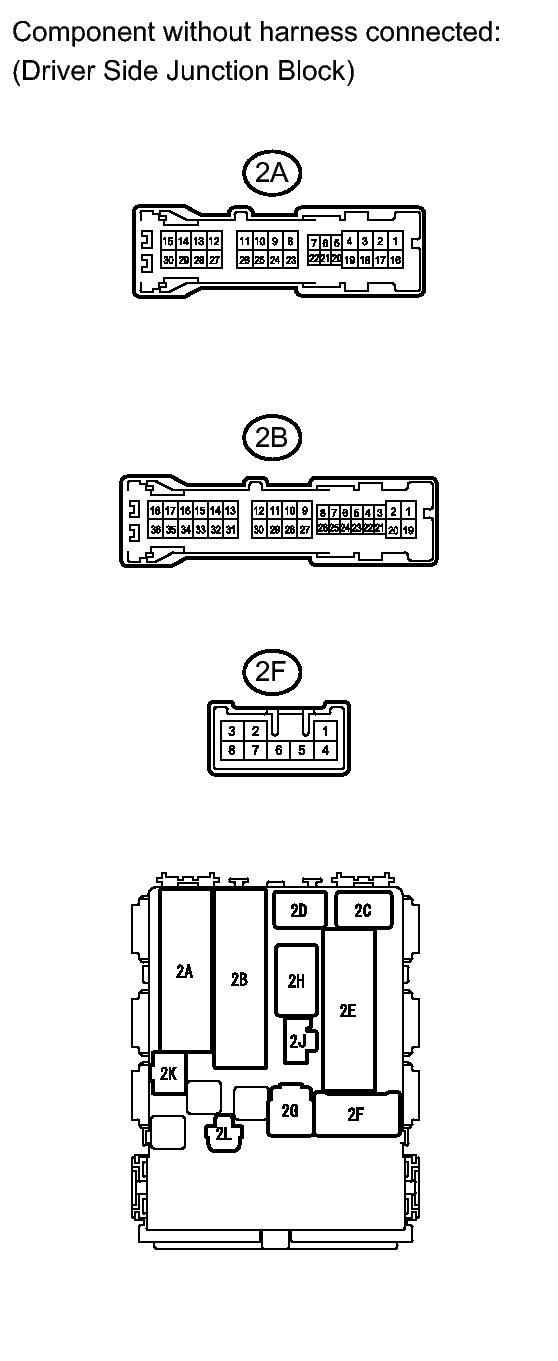

   Fig 2: Identifying Driver Side Junction Block Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the driver side junction block connectors.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   1A-4 - 2F-4	Always	Below 1 Ω
   1B-4 - 2B-11	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   2F-4 - Body ground	Always	10 kΩ or higher
   2B-11 - Body ground	Always	10 kΩ or higher

4. Reinstall the integration relay.
5. Reconnect the driver side junction block connectors.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (DRIVER SIDE JUNCTION BLOCK - INTEGRATION RELAY)

OK → See step   10

1. Remove the driver side junction block.
   Fig 3: Inspecting Driver Side Junction Block Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2B-11 - 2A-8	When battery voltage absent	10 kΩ or higher
   	When battery voltage applied to terminals 2F-4 and 2B-10	Below 1 Ω

3. Reinstall the driver side junction block.

NG → REPLACE DRIVER SIDE JUNCTION BLOCK

OK: Go to next step

1. Disconnect the ECM connector.
   Fig 4: Checking Harness And Connector (C/OPN Relay - ECM)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the driver side junction block connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   2B-10 - A37-7 (FC)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   2B-10 or A37-7 (FC) - Body ground	Always	10 kΩ or higher

4. Reconnect the driver side junction block connector.
5. Reconnect the ECM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (C/OPN RELAY - ECM)

OK: Go to next step

1. Disconnect the driver side junction block connector.
   Fig 5: Checking Harness And Connector (C/OPN Relay - Fuel Pump)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the fuel pump connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connections	Condition	Specified Conditions
   2A-8 - L13-4 (Fuel pump)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connections	Condition	Specified Conditions
   2A-8 or L13-4 (Fuel pump) - Body ground	Always	10 kΩ or higher

4. Reconnect the fuel pump connector.
5. Reconnect the driver side junction block connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (DRIVER SIDE JUNCTION BLOCK - FUEL PUMP)

OK: Go to next step

1. Disconnect the fuel pump connector.
   Fig 6: Identifying Fuel Pump Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connections	Condition	Specified Conditions
   L13-5 (Fuel pump) - Body ground	Always	Below 1 Ω

3. Reconnect the fuel pump connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (FUEL PUMP GROUND CIRCUIT)

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Starter Signal.
5. Check the result when the ignition switch is turned to ON and START.

   Result

   Ignition Switch Position	Starter Signal
   ON	OFF
   START	ON

NG → See step   12

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Engine Speed.
5. Read the values displayed on the Techstream while cranking.

   OK

   Values are displayed continuously.

NG → See step   13

OK → See step   11
