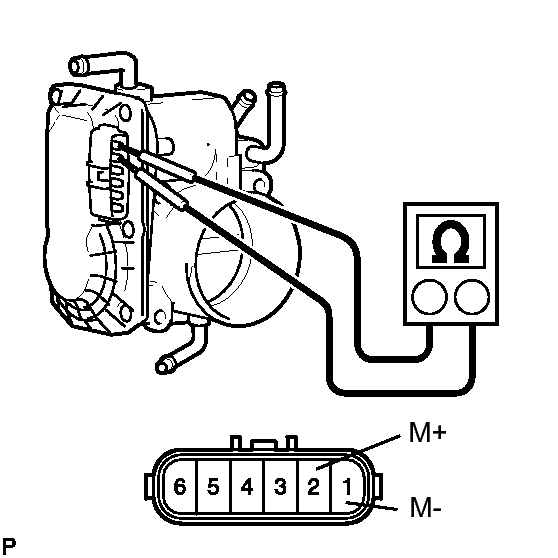

Using an ohmmeter, measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| 1 (M-) - 2 (M+) |
20°C (68°F) |
0.3 to 100 Ω |
If the result is not as specified, replace the throttle body assembly.
