Operation Check

1. If the cause of a symptom is any of the following, the corresponding symptom is normal, it is not a malfunction.

   Symptom	Answer
   A longer route than expected is chosen.	Depending on the road conditions, the navigation receiver assembly may determine that a longer route is quicker.
   Even when distance priority is high, the shortest route is not shown.	Some paths may not be advised due to safety concerns.
   When the vehicle is put into motion immediately after the engine starts, the navigation system deviates from the actual position.	If the vehicle starts before the navigation system activates, the system may not react.
   When running on certain types of roads, especially new roads, the vehicle position deviates from the actual position.	When the vehicle is driving on new roads not available on the map disc, the system attempts to match it to another nearby road, causing the position mark to deviate.

2. The following symptoms are not a malfunction, but are caused by errors inherent in the GPS, gyro sensor, speed sensor, or navigation receiver assembly.
   Fig 1: Locating Position Mark On Parallel Road

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. The current position mark may be displayed on a nearby parallel road.
   2. Immediately after a fork in the road, the current vehicle position mark may be displayed on the wrong road.
      Fig 2: Locating Vehicle Position Mark On Wrong Road

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. When the vehicle turns right or left at an intersection, the current vehicle position mark may be displayed on a nearby parallel road.
      Fig 3: Locating Vehicle Position Mark On Parallel Road

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. When the vehicle is carried, such as on a ferry, and the vehicle itself is not running, the current vehicle position mark may be displayed in the position where the vehicle was until a measurement can be performed by GPS.
      Fig 4: Identifying Vehicle Position Mark On GPS

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. When the vehicle is driven on a steep hill, the current vehicle position mark may deviate from the correct position.
      Fig 5: Identifying Vehicle Position Mark In Correct Position - Runs On Steep Hill

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. When the vehicle makes a continuous turn of 360°, 720°, 1080°, etc., the current vehicle position mark may deviate from the correct position.
      Fig 6: Identifying Vehicle Position Mark In Correct Position - Continuous Turn

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. When the vehicle moves erratically, such as constant lane changes, the current vehicle position mark may deviate from the correct position.
      Fig 7: Identifying Vehicle Position Mark In Correct Position - Erratically

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. When the ignition switch is turned to ACC or ON on a turntable while parking, the current vehicle position mark may not point in the correct direction. The same will occur when the vehicle starts to move.
      Fig 8: Symptoms - When Engine Switch Is Turned On (ACC Or ON) On Turntable Before Parking

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   9. When the vehicle is driven on a snowy road or a mountain path with tire chains installed or using a spare tire, the current vehicle position mark may deviate from the correct position.
      Fig 9: Identifying Vehicle Position Mark In Correct Position - Runs On Snowy Road

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   10. When a tire is changed, the current vehicle position mark may deviate from the correct position.
       Fig 10: Identifying Vehicle Position Mark In Correct Position - Tire Change

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       • A change in tire diameter may cause a speed sensor error.
       • Performing the "tire change" in calibration mode will allow the system to correct the current vehicle position faster.

HINT:

• This mode checks the color display on the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.

1. Enter diagnostic mode. Refer to DTC CHECK/CLEAR .
2. Select "Display Check" from the "Diagnosis MENU" screen.

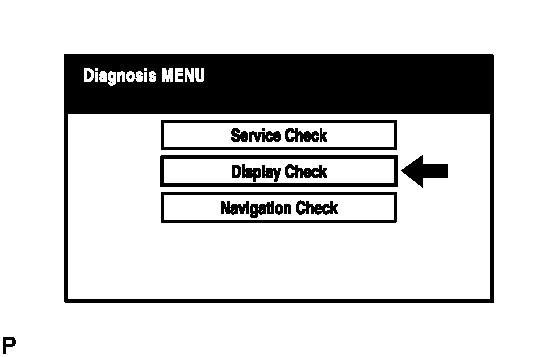

   Fig 11: Locating Display Check On Diagnosis MENU Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Color Bar Check
   1. Select "Color Bar Check" from the "Display Check" screen.

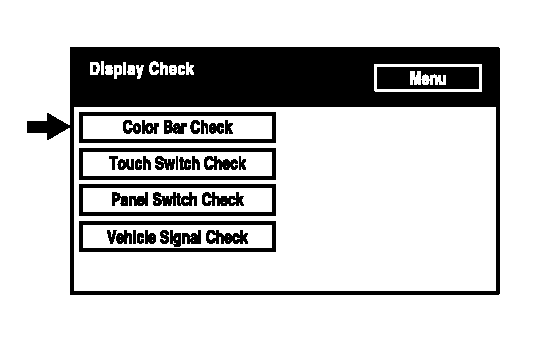

      Fig 12: Locating Color Bar Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a color bar from the "Color Bar Check Mode" screen.

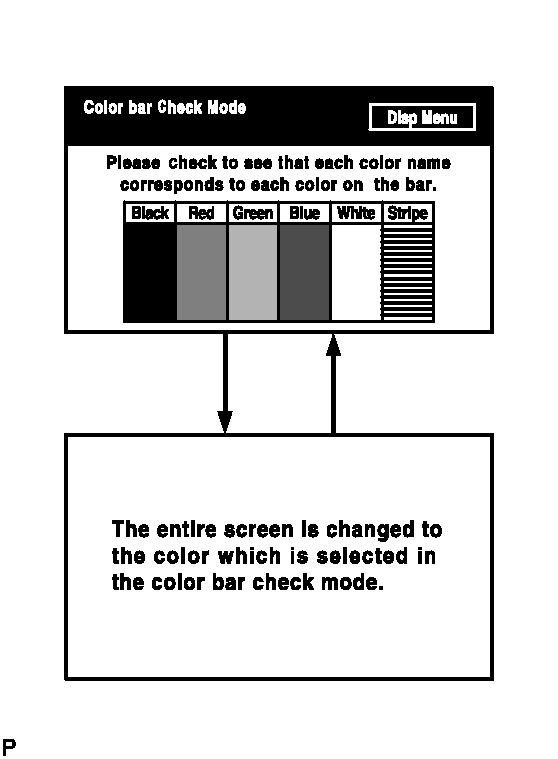

      Fig 13: Color Bar Check Mode - Screen Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Check the display color.

      HINT:

      • The entire screen turns to the color or stripe selected.
      • Touch the display to return to the "Color Bar Check Mode" screen.
4. Touch Switch Check
   1. Select "Touch Switch Check" from the "Display Check" screen.

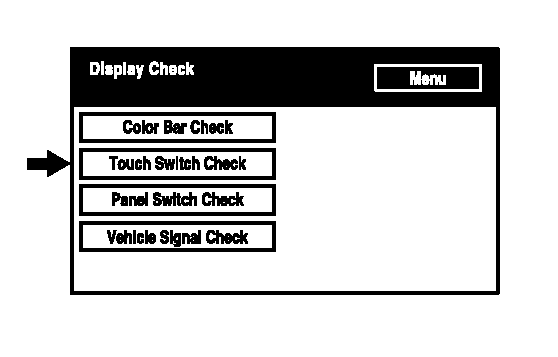

      Fig 14: Locating Touch Switch Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

      HINT:

      A "+" mark is displayed where the display is touched.

      Fig 15: Diagnostic Tool Display - Touch Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Panel Switch Check
   1. Select "Panel Switch Check" from the "Display Check" screen.

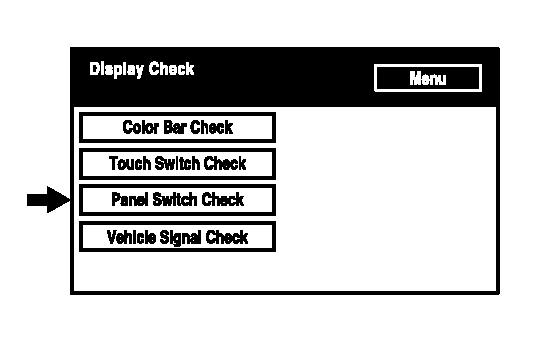

      Fig 16: Locating Panel Switch Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Operate each switch and check that the switch name and condition are correctly displayed.

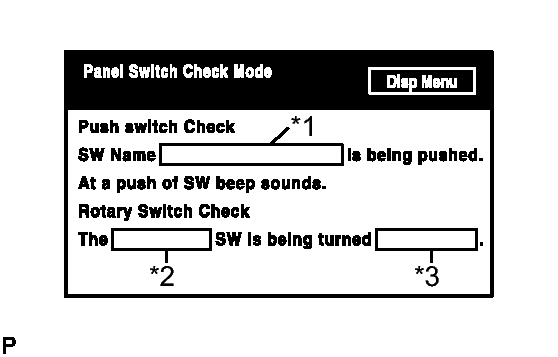

      Fig 17: Diagnostic Tool Display - Panel Switch Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SCREEN DESCRIPTION



      Display	Content
      *1: Pushed switch name	Name of the pressed switch is displayed. If more than one switch is pressed, "MULTIPLE" is displayed.
      *2: Rotary switch name	Name of the rotary switch is displayed.
      *3: Rotary switch direction	Direction of the rotary switch is displayed.

6. Vehicle Signal Check
   1. Select "Vehicle Signal Check" from the "Display Check" screen.

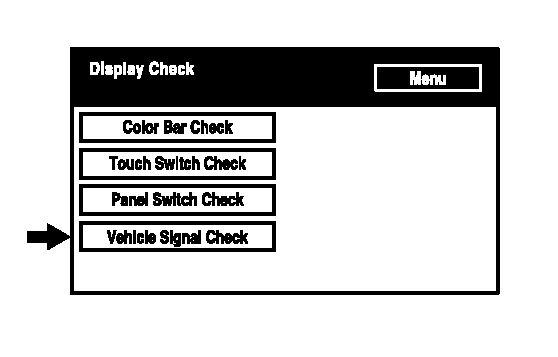

      Fig 18: Locating Vehicle Signal Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.
      • For details of this function, refer to Diagnosis Display Detailed Description in the System Description. Refer to SYSTEM DESCRIPTION .

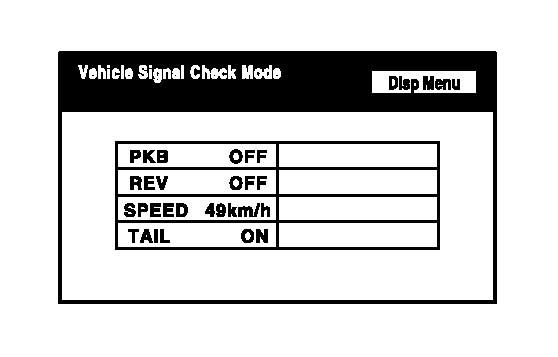

      Fig 19: Identifying Vehicle Signal Check Mode Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• This mode displays GPS satellite information.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.

1. Enter Diagnostic Mode. Refer to DTC CHECK/CLEAR .
2. Navigation Check
   1. Select "Navigation Check" from the "Diagnosis MENU" screen.

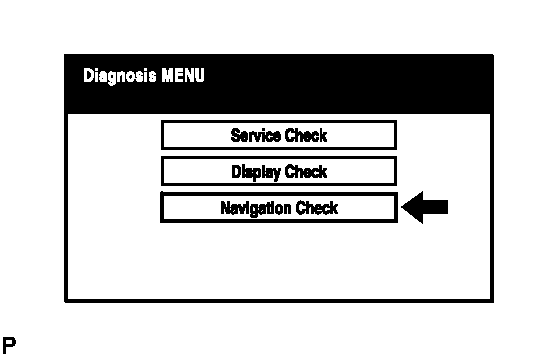

      Fig 20: Locating Navigation Check On Diagnosis MENU Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. GPS Information
   1. Select "GPS Information" from the "Navigation Check" screen.

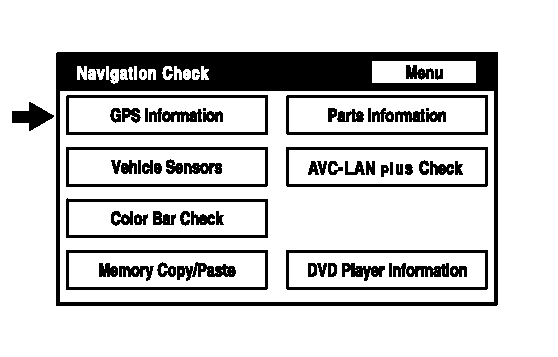

      Fig 21: Locating GPS Information On Navigation Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When GPS information is displayed, check the GPS conditions.

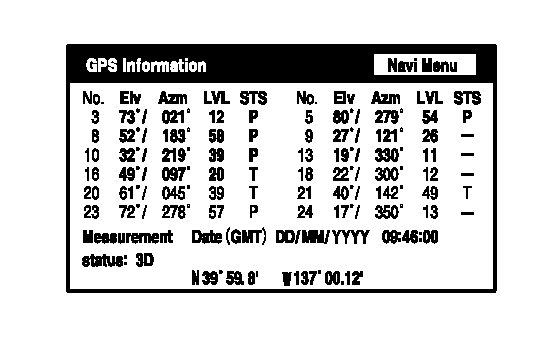

      Fig 22: Diagnosis Display - GPS Information

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • This screen is updated once per second when input signals to the vehicle are changed.
      • For details of this function, refer to Diagnosis Display Detailed Description in the System Description. Refer to SYSTEM DESCRIPTION .
4. Vehicle Sensors
   1. Select "Vehicle Sensors" from the "Navigation Check" screen.

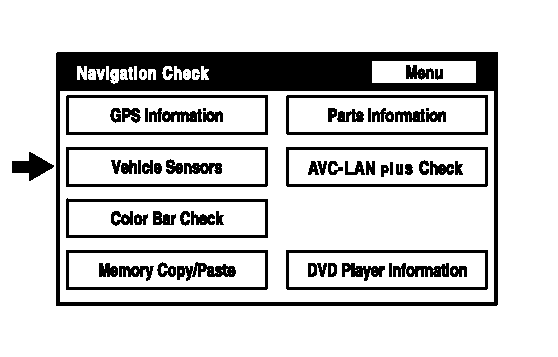

      Fig 23: Locating Vehicle Sensors On Navigation Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check all the signals and sensors when vehicle signal information is displayed.
      Fig 24: Screen Display - Vehicle Sensors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • This screen is updated once per second when input signals to the vehicle are changed.
      • This screen displays vehicle signals input to the built-in navigation ECU.
      • For details of this function, refer to Diagnosis Display Detailed Description in the System Description. Refer to SYSTEM DESCRIPTION .
5. Color Bar Check
   1. Select "Color Bar Check" from the "Navigation Check" screen.

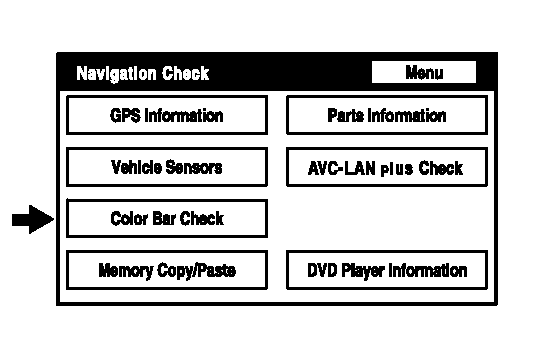

      Fig 25: Locating Color Bar Check On Navigation Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.
      Fig 26: Diagnostic Tool Display - NAVI Color Bar Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Colors will not be displayed full-screen as in "Display Check Mode".
      • This screen displays the built-in navigation ECU display color.
6. Memory Copy/Paste

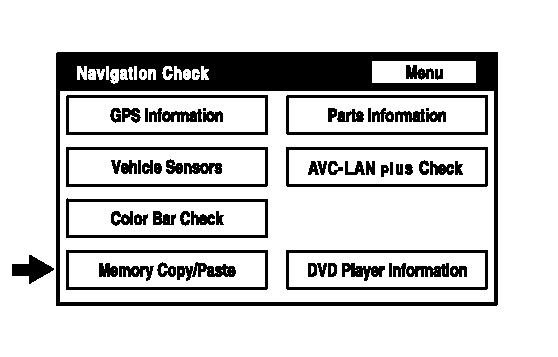

   Fig 27: Locating Memory Copy/Paste On Navigation Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   This function cannot be used.

7. Parts Information
   1. Select "Parts Information" from the "Navigation Check" screen.

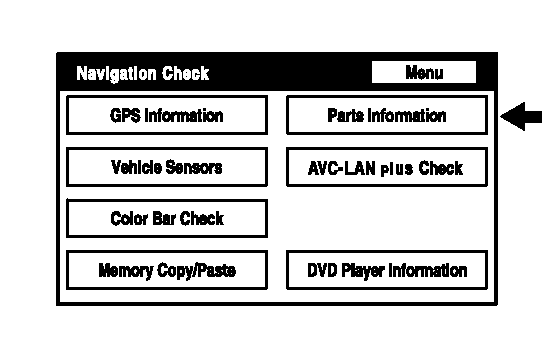

      Fig 28: Locating Parts Information On Navigation Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the navigation and disc information when the "Parts Information" screen is displayed.

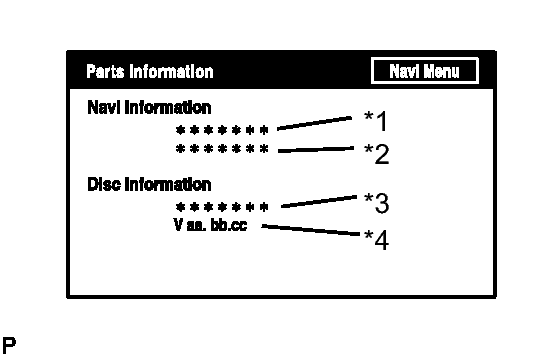

      Fig 29: Diagnosis Display - Parts Information Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SCREEN DESCRIPTION



      Display	Content
      *1: Navigation Manufacturer	Navigation receiver assembly manufacturer is displayed.
      *2: Navigation Version	Navigation receiver assembly version is displayed.
      *3: Disc Manufacturer	Map disc manufacturer is displayed.
      *4: Disc Version	Map disc version is displayed.

8. DVD Player Information
   1. Select "DVD Player Information" from the "Navigation Check" screen.

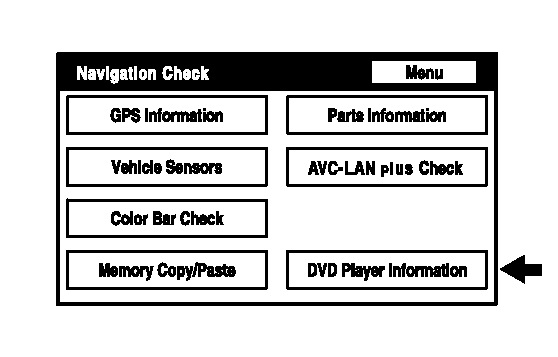

      Fig 30: Locating DVD Player Information On Navigation Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check for DTCs.

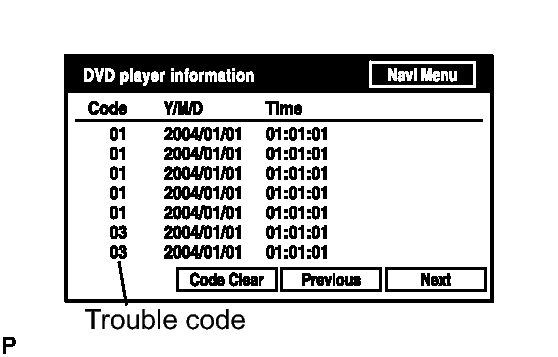

      Fig 31: Diagnosis Display - Check Bluetooth Tel Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • This is the DVD player check function in the navigation receiver assembly.
      • For details of this function, refer to Diagnosis Display Detailed Description in the System Description. Refer to SYSTEM DESCRIPTION .
