Navigation ECU Communication Stop Mode: Wiring Diagram

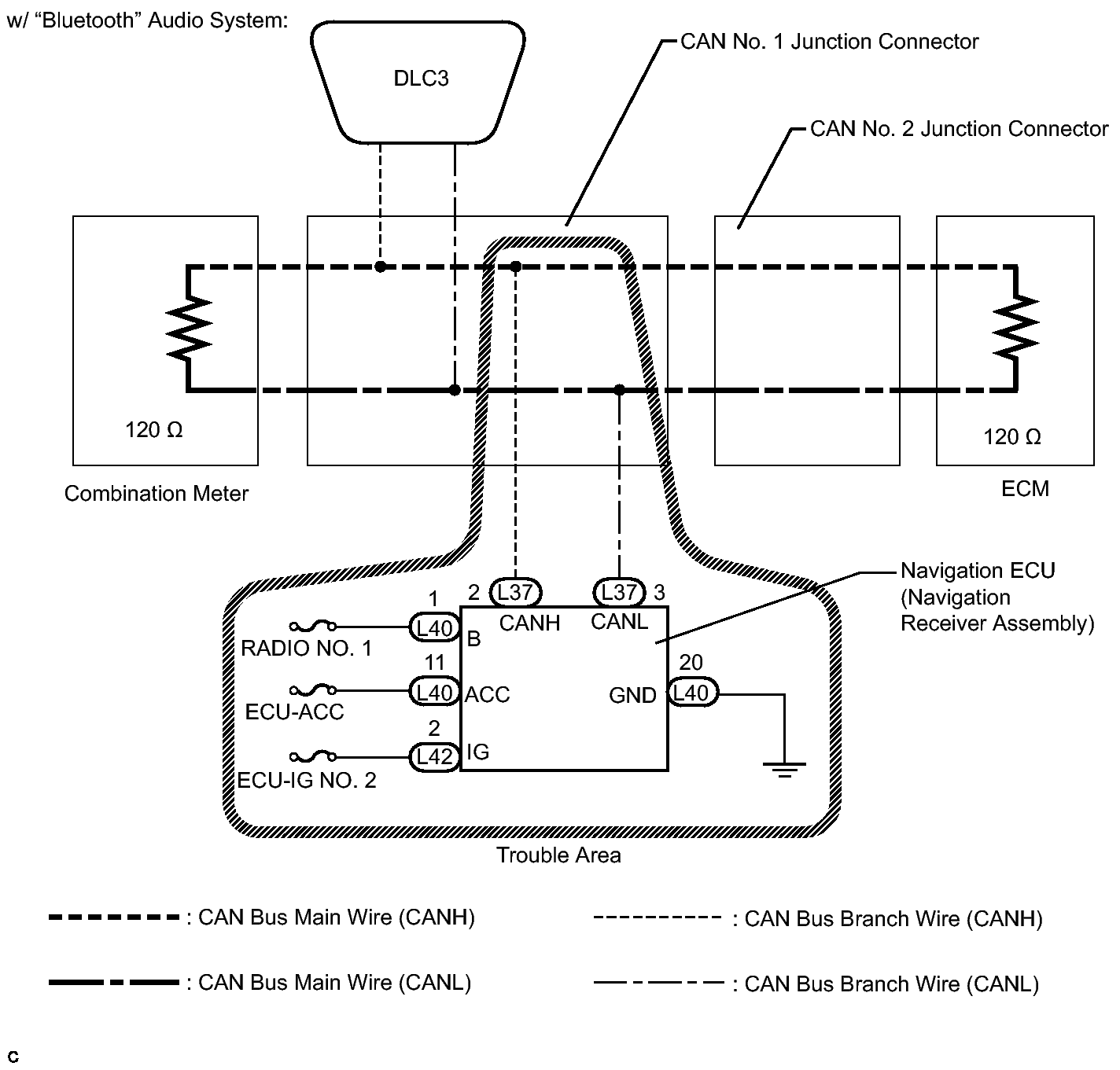

Fig 1: View Of Navigation ECU Wiring Diagram (1 Of 2)
GTY227157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: View Of Navigation ECU Wiring Diagram (2 Of 2)
GTY227153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
