Power Management Control ECU Communication Stop Mode: Wiring Diagram

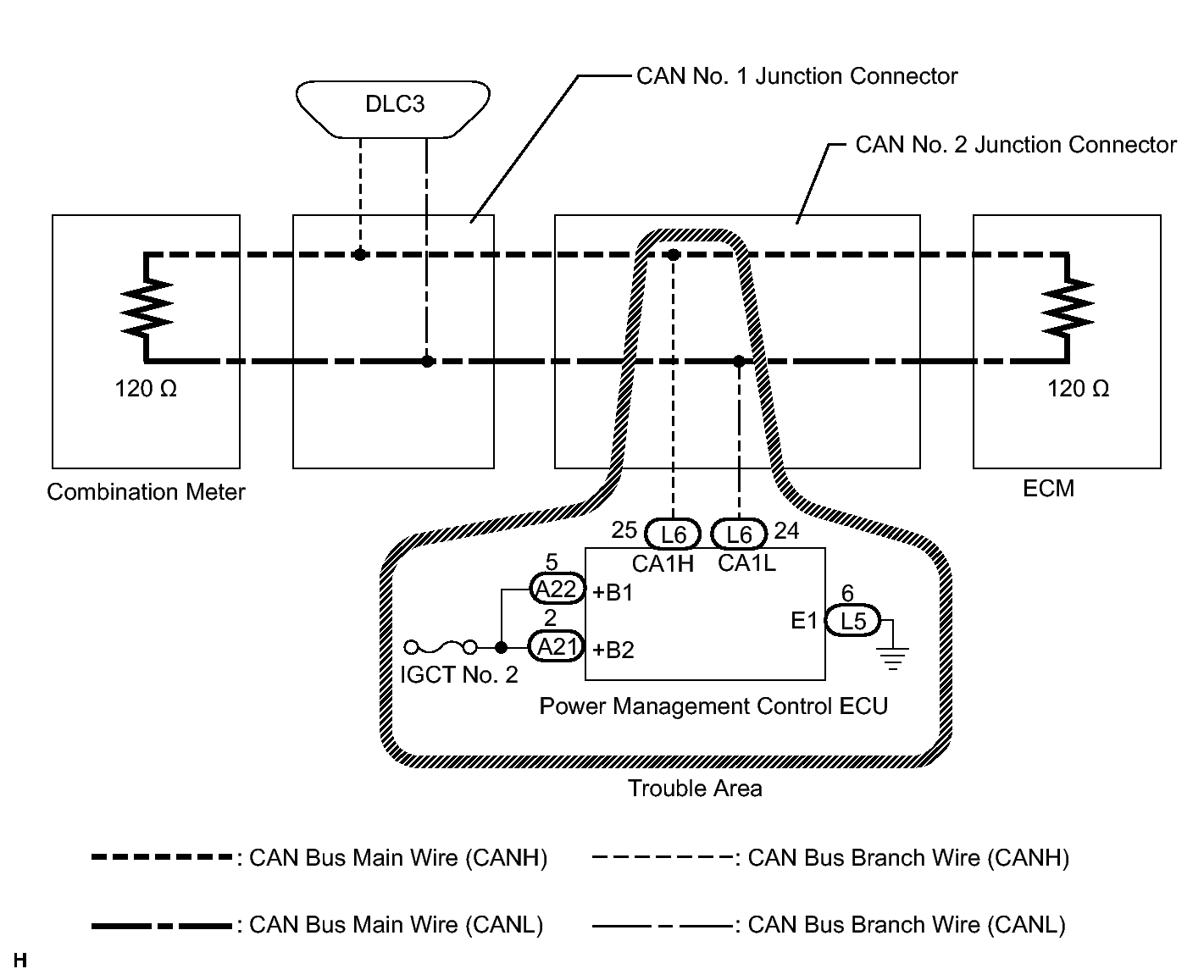

Fig 1: View Of Power Management Control ECU Wiring Diagram
GTY219090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
