Steering Angle Sensor Communication Stop Mode: Wiring Diagram

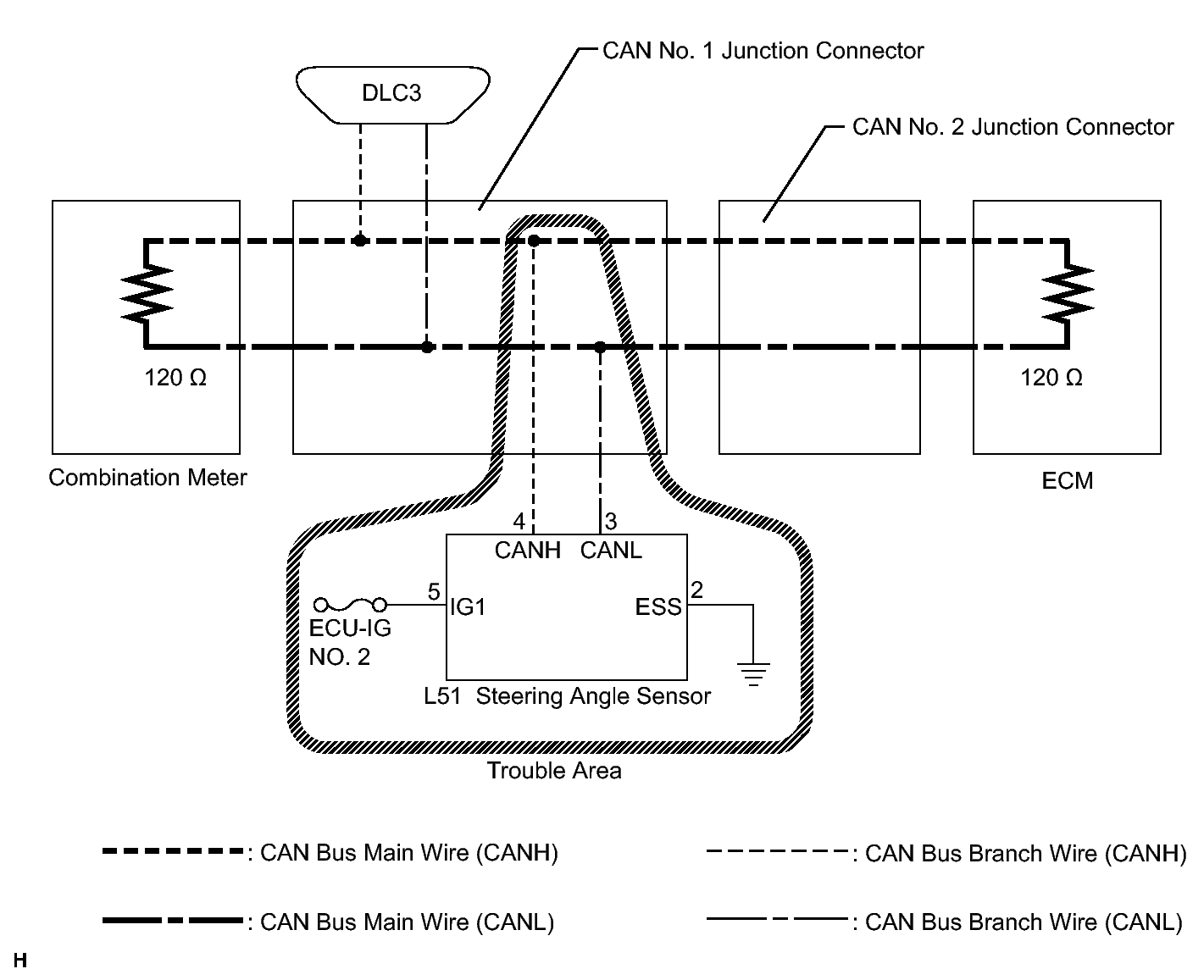

Fig 1: View Of Steering Angle Sensor Wiring Diagram
GTY220818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
