Microphone Circuit between Microphone and Navigation Receiver Assembly: Wiring Diagram

  1. w/o Manual (SOS) Switch

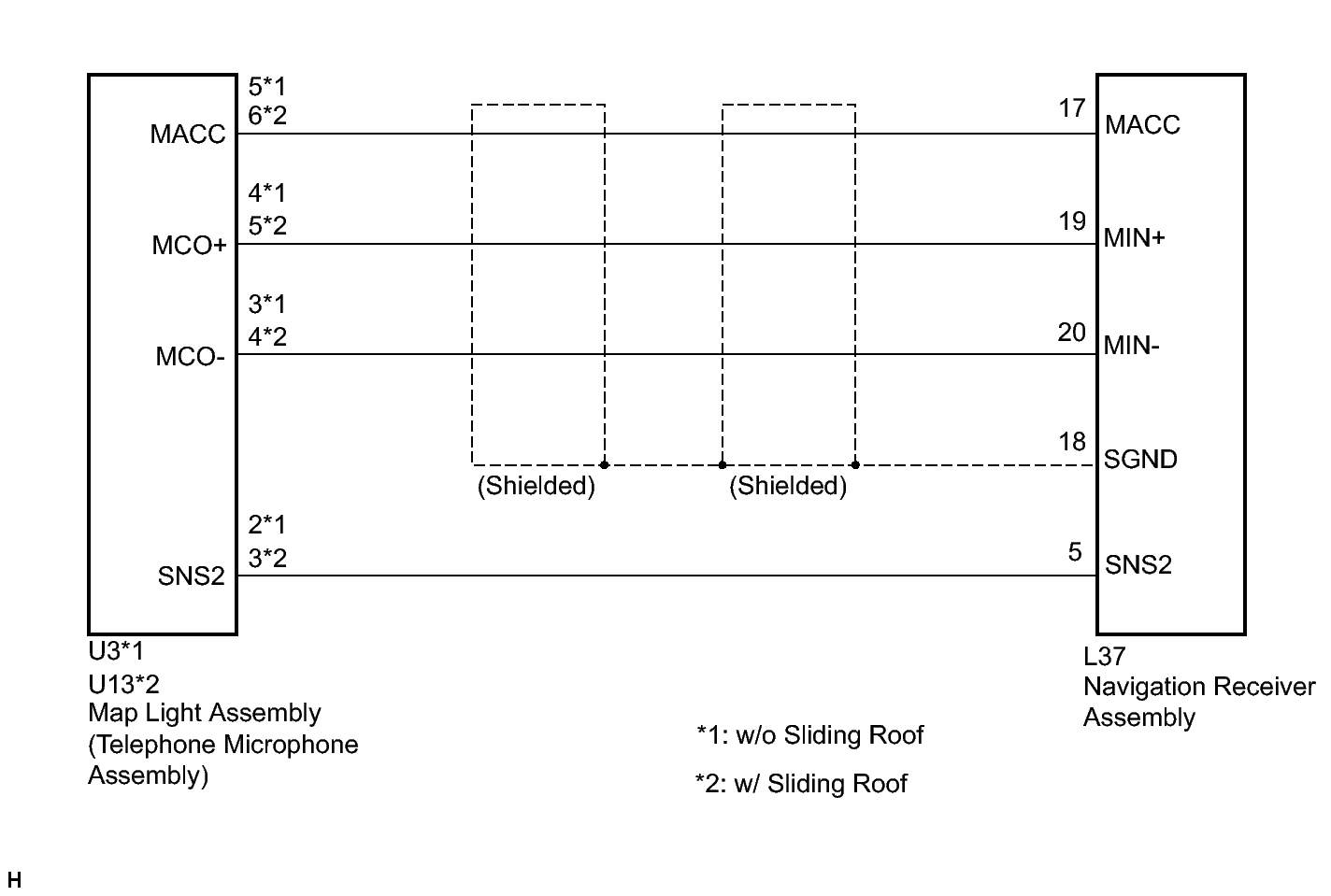

    Fig 1: Microphone To Navigation Receiver Assembly W/O Manual (SOS) Switch Wiring Diagram
    GTY223239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Manual (SOS) Switch

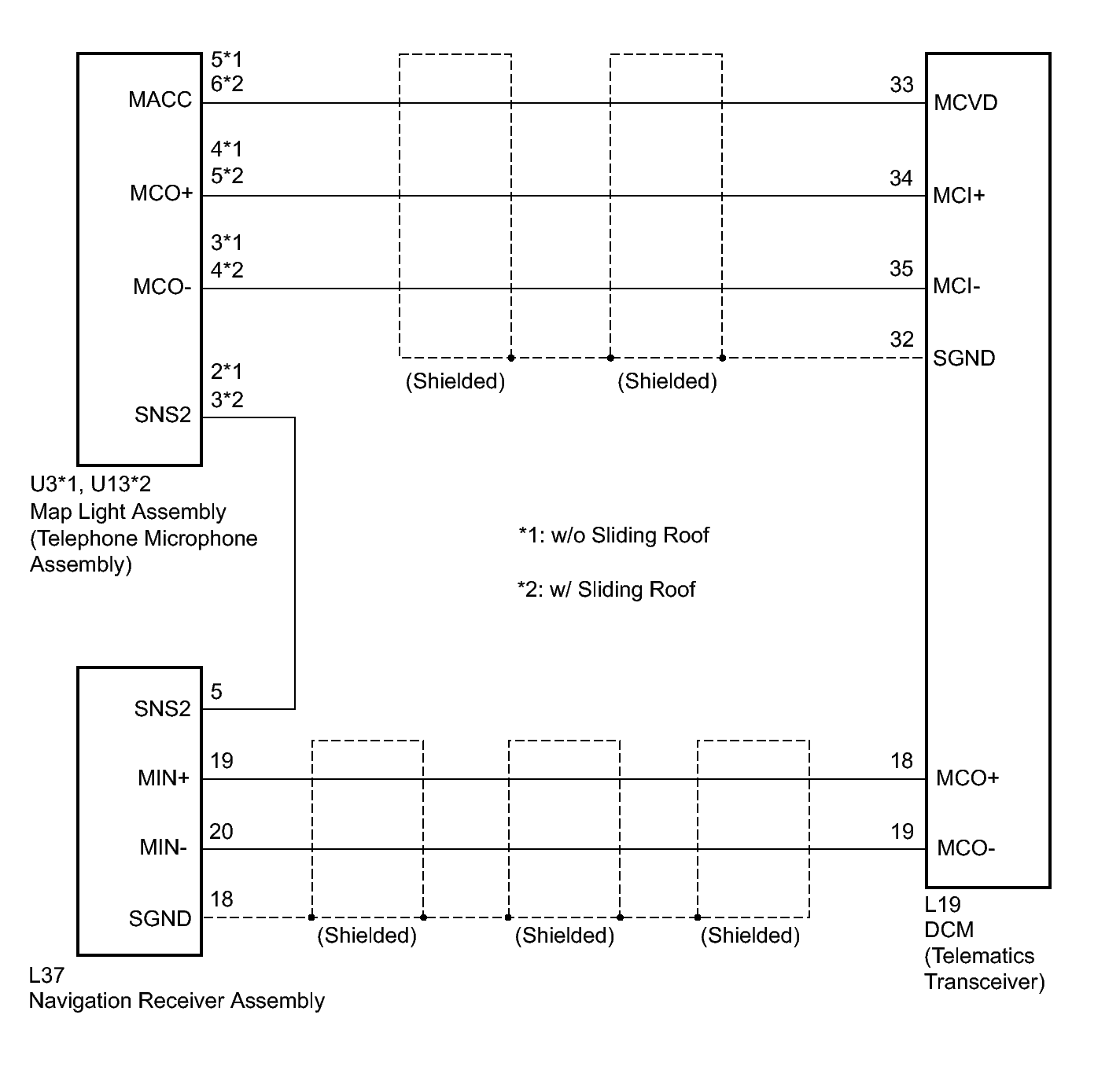

    Fig 2: Identifying To Navigation Receiver Assembly W/ Manual (SOS) Switch Wiring Diagram
    GTY234745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
