Navigation Receiver Assembly Power Source Circuit: Wiring Diagram

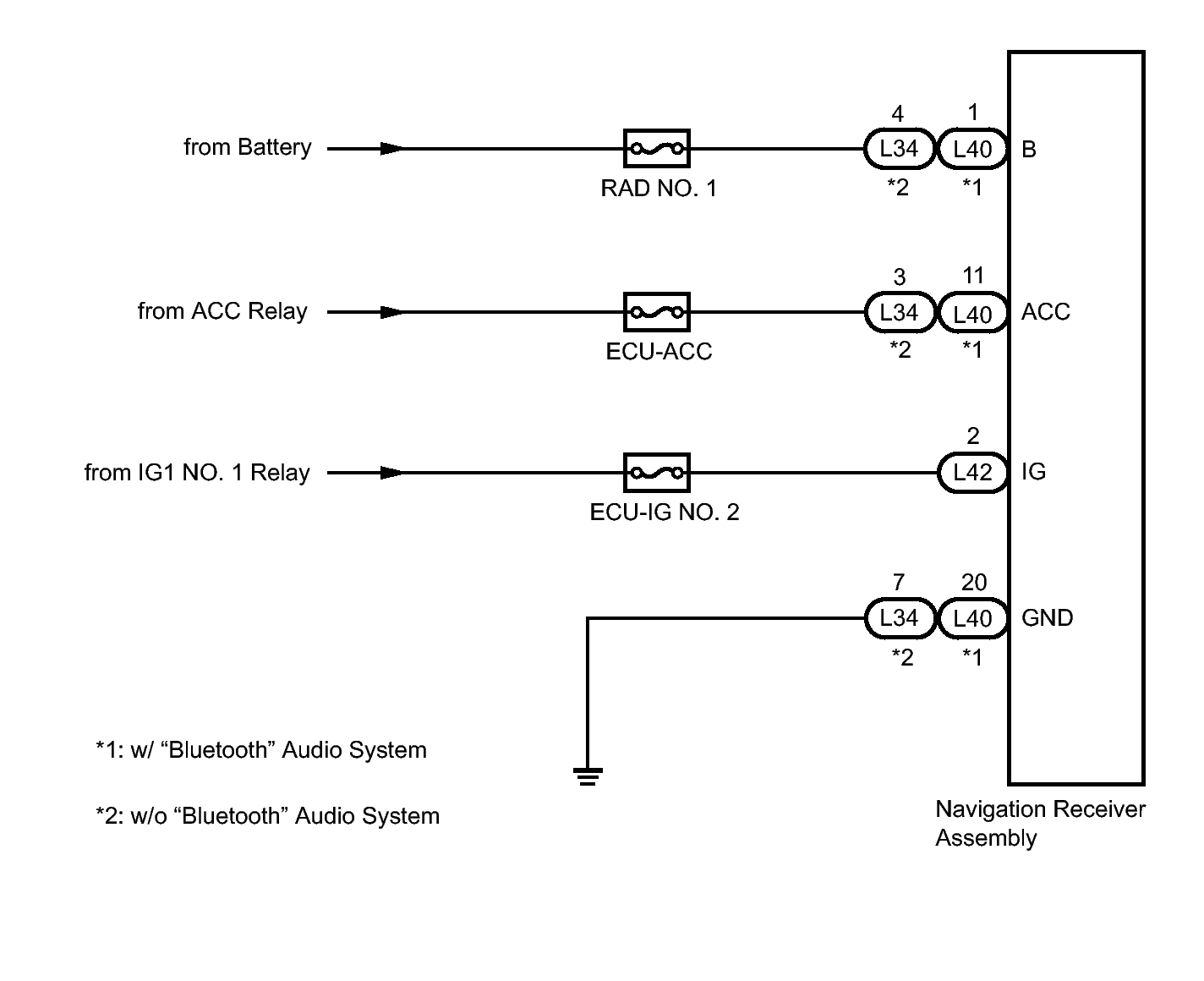

Fig 1: Identifying Navigation Receiver Assembly Power Source Circuit Wiring Diagram
GTY220966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
