Navigation Voice Circuit: Wiring Diagram

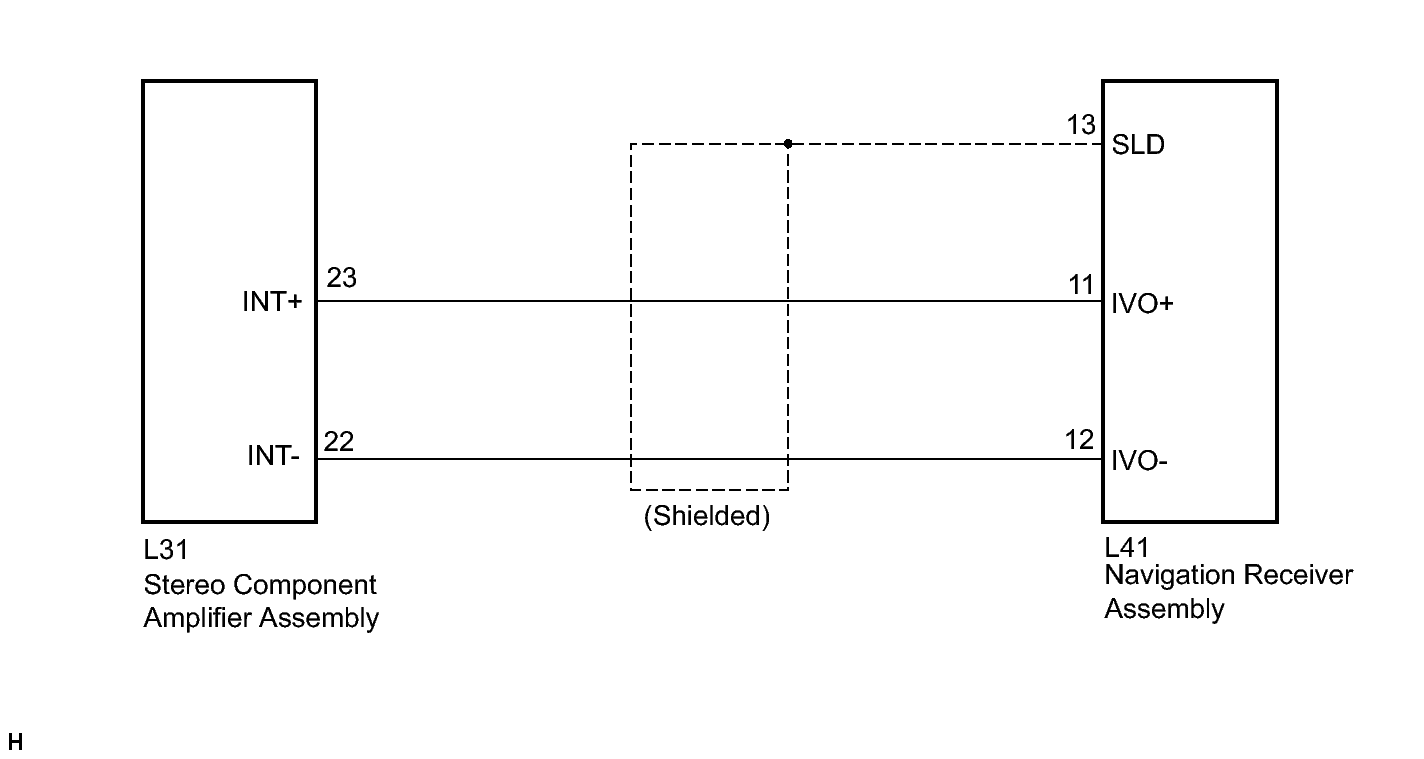

Fig 1: Navigation Voice Circuit Wiring Diagram
GTY229995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
