Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Procedure
- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER - NO. 1 STEREO JACK ADAPTER)
- Disconnect the L41 navigation receiver assembly connector.
- Disconnect the z19 No. 1 stereo jack adapter assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

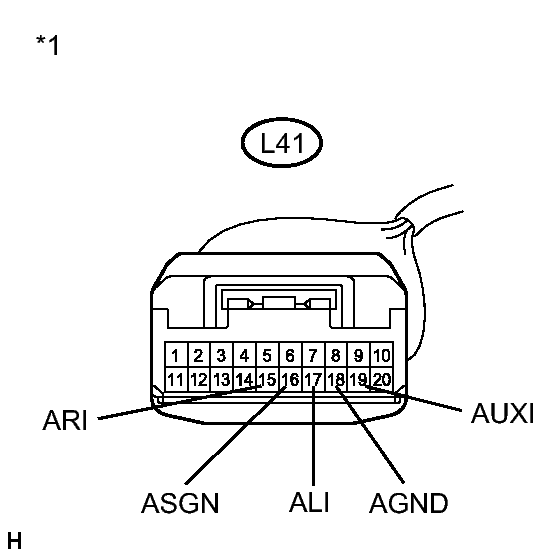

Tester Connection Condition Specified Condition L41-19 (AUXI) - z19-4 (AUXO) Always Below 1 Ω L41-18 (AGND) - z19-5 (AGND) Always Below 1 Ω L41-15 (ARI) - z19-2 (ARO) Always Below 1 Ω L41-17 (ALI) - z19-1 (ALO) Always Below 1 Ω L41-16 (ASGN) - z19-3 (ASGN) Always Below 1 Ω L41-19 (AUXI) - Body ground Always 10 kΩ or higher L41-18 (AGND) - Body ground Always 10 kΩ or higher L41-15 (ARI) - Body ground Always 10 kΩ or higher L41-17 (ALI) - Body ground Always 10 kΩ or higher L41-16 (ASGN) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*1 Front view of wire harness connector

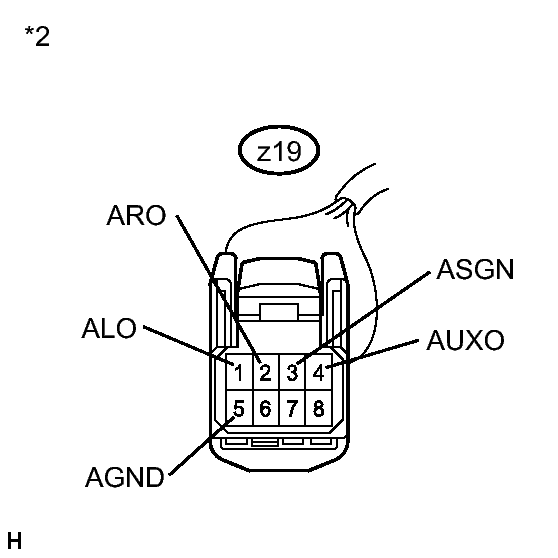

(to Navigation Receiver Assembly)*2 Front view of wire harness connector
(to No. 1 Stereo Jack Adapter Assembly)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 2
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
