Steering Pad Switch Circuit: Wiring Diagram

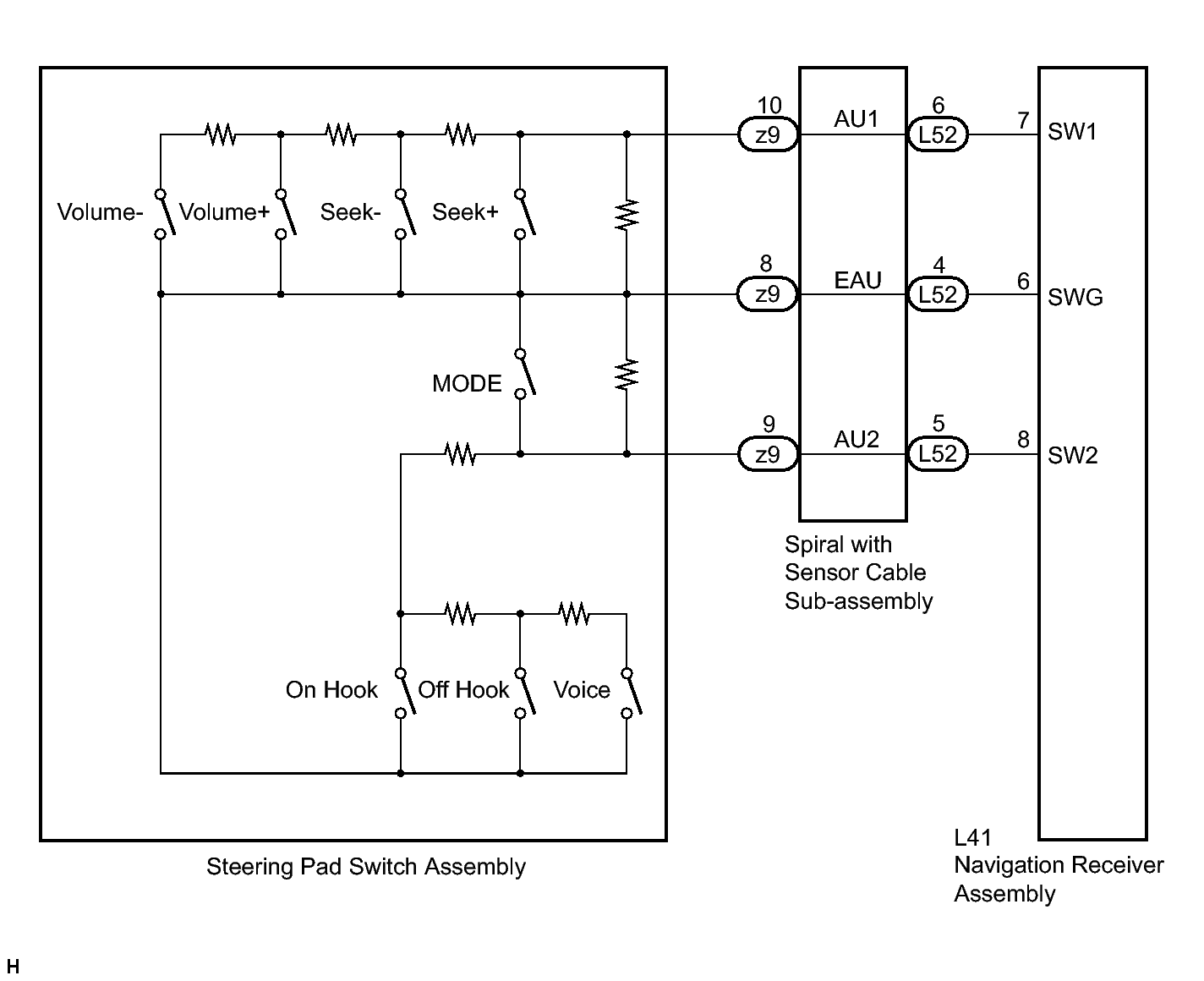

Fig 1: Steering Pad Switch Assembly To Navigation Receiver Assembly Wiring Diagram
GTY214366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
