Stereo Component Amplifier Power Source Circuit: Wiring Diagram

  1. w/ "Bluetooth" Audio System

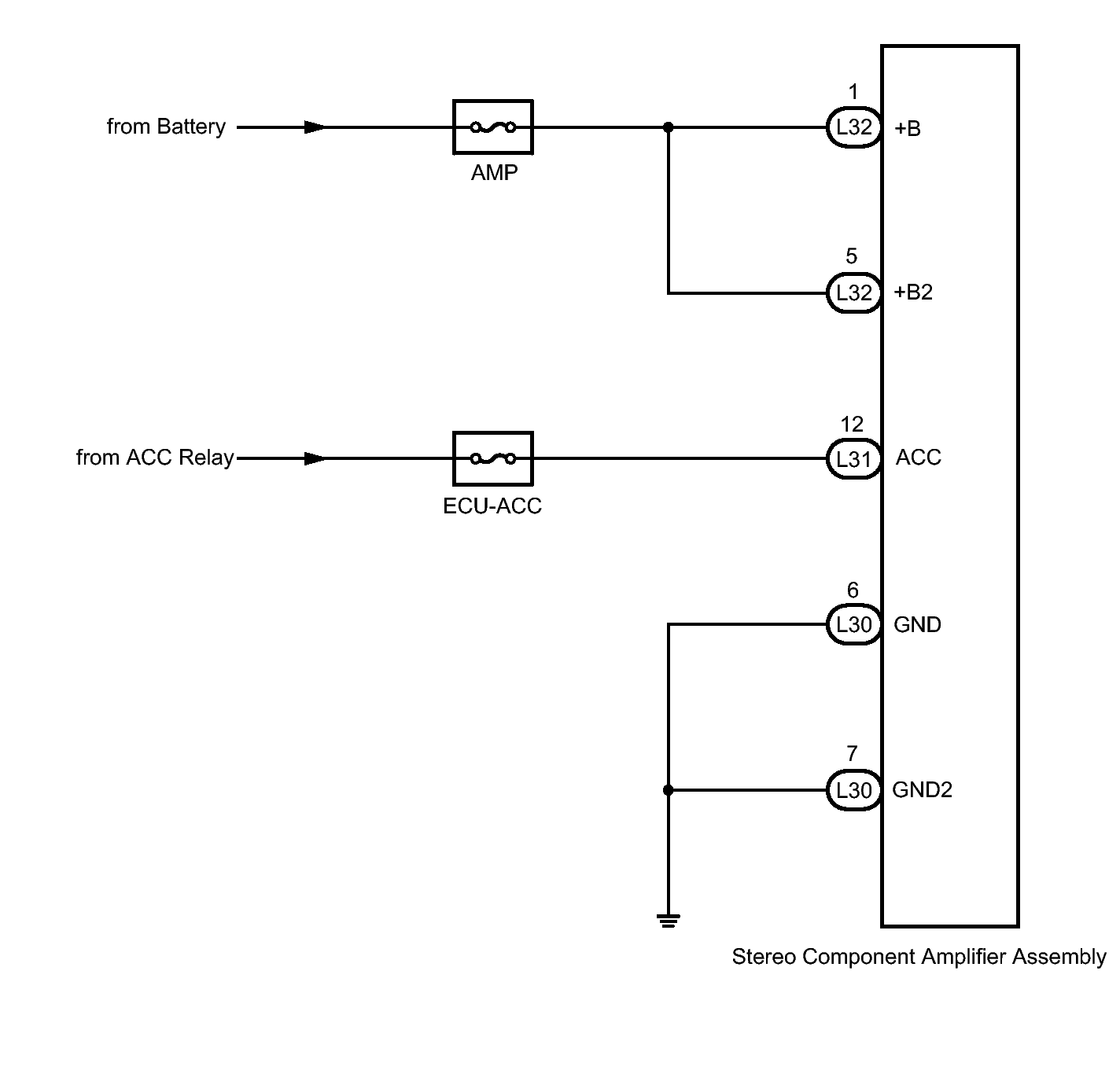

    Fig 1: Stereo Component Amplifier Power Source Circuit W/ "Bluetooth" Audio System Wiring Diagram
    GTY227280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o "Bluetooth" Audio System

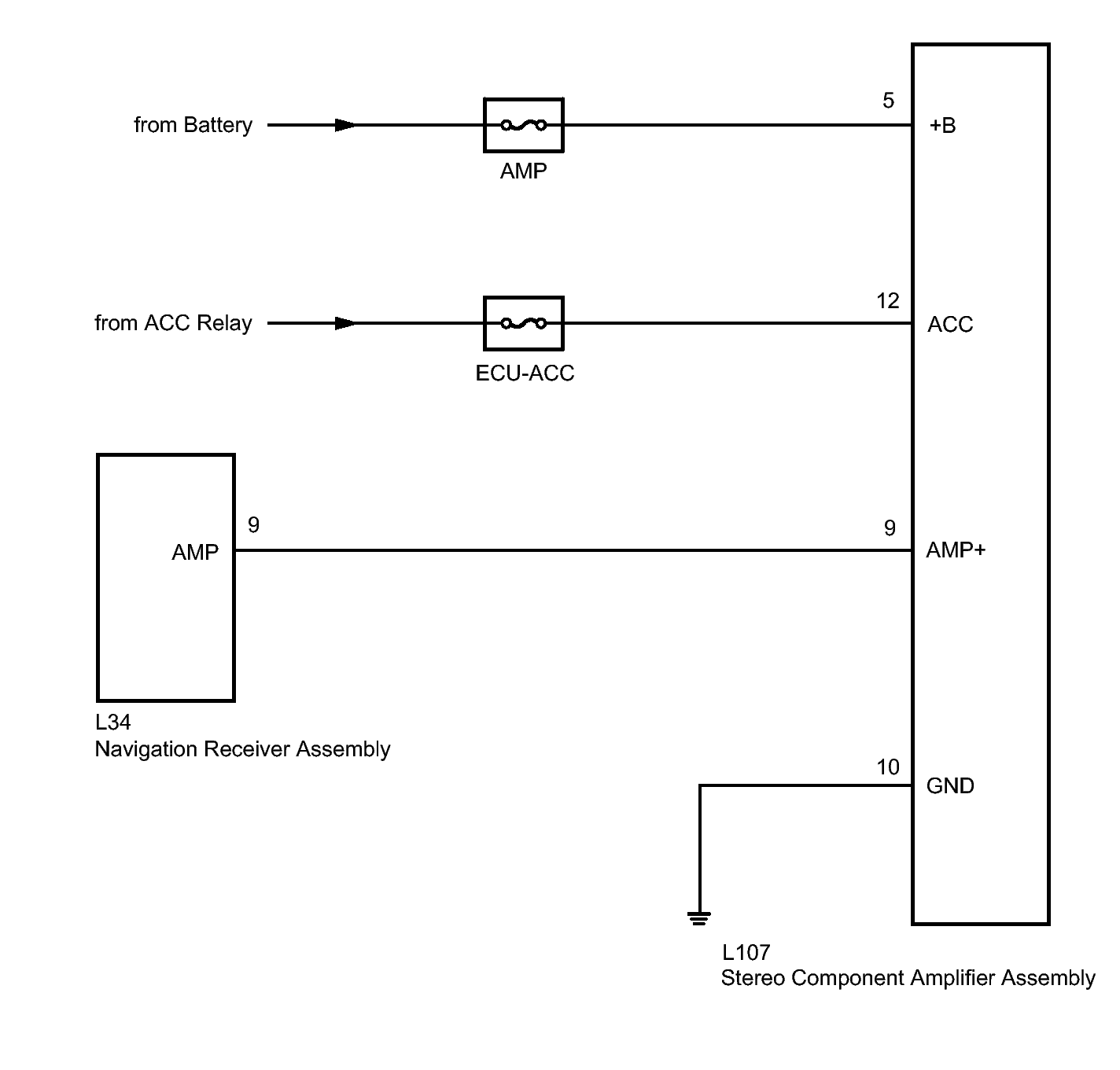

    Fig 2: Stereo Component Amplifier Power Source Circuit W/O "Bluetooth" Audio System Wiring Diagram
    GTY220692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
