Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter: Wiring Diagram

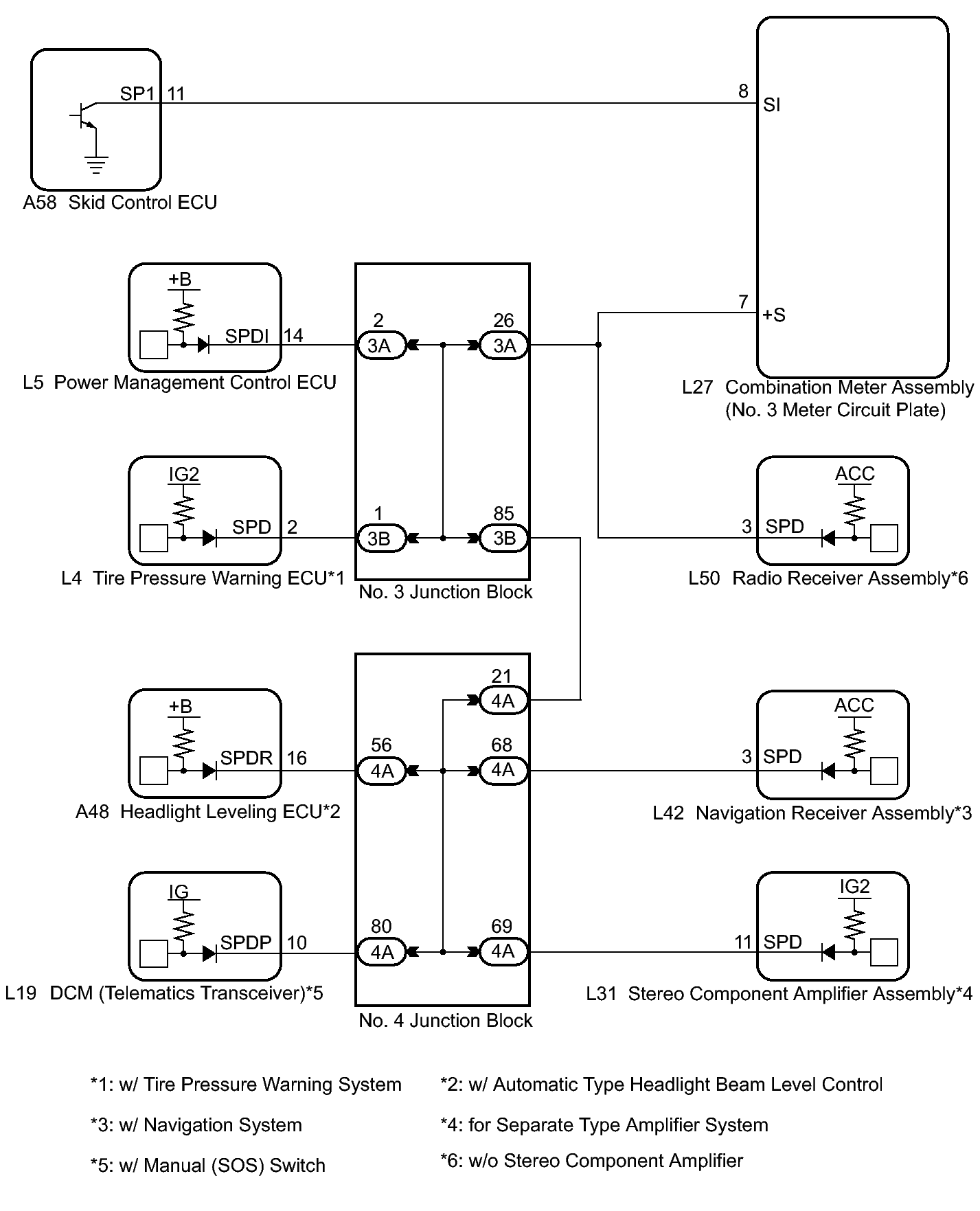

Fig 1: Stereo Component Amplifier To Combination Meter Wiring Diagram
GTY210792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
