Map Disc cannot be Inserted: Procedure

1. Enter the map data information screen.
2. Check if a disc is inserted into the map disc slot.

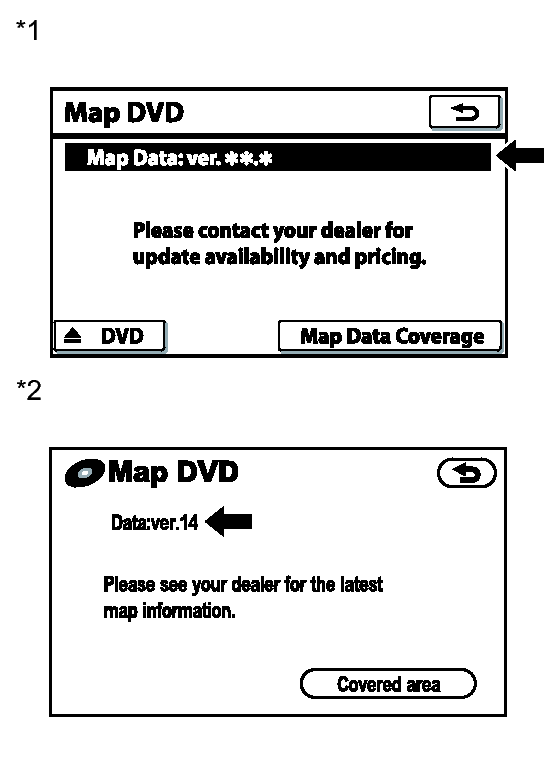

   Fig 1: Identifying Map Data Information Screen Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Check if the map data version is displayed.

      OK

      The map data version is displayed.

   TEXT IN ILLUSTRATION



   *1	Example (w/ "Bluetooth" Audio System)
   *2	Example (w/o "Bluetooth" Audio System)

NG → See step   2

OK → END (EJECT DISC)

Fig 2: Identifying Cracked Or Deformed Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the map disc is not deformed or cracked.

   OK

   No deformations or cracks on the map disc

NG → REPLACE MAP DISC

OK → See step   3
